Home / Siemens / Siemens 3RT1456-6AM36-Z X95 – Power contactor AC-1 275 A / 690 V / 40 °C 3-pole

Available on request

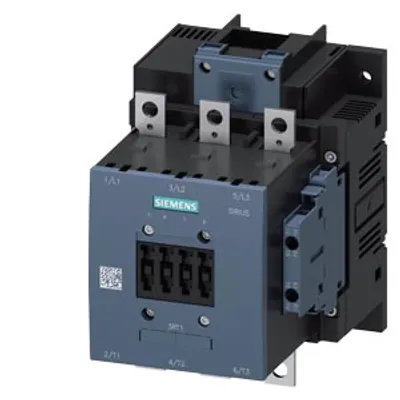

Siemens 3RT1456-6AM36-Z X95 – Power contactor AC-1 275 A / 690 V / 40 °C 3-pole

Name: Siemens 3RT1456-6AM36-Z X95 – Power contactor AC-1 275 A / 690 V / 40 °C 3-pole
Brand: Siemens
SKU: 3RT1456-6AM36-Z X95

MPN: 3RT1456-6AM36-Z X95 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Circuit Protection & Switching
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	3.1 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RT1456-6AM36-Z X95 be shipped?

3RT1456-6AM36-Z X95 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RT1456-6AM36-Z X95 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RT1456-6AM36-Z X95 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT1456-6AM36-Z X95, subject to availability and destination.

power contactor AC-1 275 A / 690 V / 40 °C 3-pole, Uc: 200-220 V AC(50-60 Hz) / DC drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

Specifications

General technical data

size of contactor	S6
product extension – function module for communication	No
product extension – auxiliary switch	Yes
power loss [W] for rated value of the current – at AC in hot operating state	86.4 W
power loss [W] for rated value of the current – at AC in hot operating state per pole	28.8 W
power loss [W] for rated value of the current – without load current share typical	5.2 W
type of calculation of power loss current-dependent	quadratic
insulation voltage – of main circuit with degree of pollution 3 rated value	1 000 V
insulation voltage – of auxiliary circuit with degree of pollution 3 rated value	500 V
surge voltage resistance – of main circuit rated value	8 kV
surge voltage resistance – of auxiliary circuit rated value	6 kV
shock resistance at rectangular impulse – at AC	8,5 g / 5 ms, 4,2 g / 10 ms
shock resistance at rectangular impulse – at DC	8,5 g / 5 ms, 4,2 g / 10 ms
shock resistance with sine pulse – at AC	13,4 g / 5 ms, 6,5 g / 10 ms
shock resistance with sine pulse – at DC	13,4 g / 5 ms, 6,5 g / 10 ms
mechanical service life (operating cycles) – of contactor typical	10 000 000
mechanical service life (operating cycles) – of the contactor with added electronically optimized auxiliary switch block typical	5 000 000
mechanical service life (operating cycles) – of the contactor with added auxiliary switch block typical	10 000 000
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	05/01/2012
SVHC substance name	Lead CAS-No. 7439-92-1
Net Weight	3.185 kg

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature – during operation	-25 ... +60 °C
ambient temperature – during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

number of poles for main current circuit	3
number of NO contacts for main contacts	3
number of NC contacts for main contacts	0
type of voltage for main current circuit	AC
at AC-1 – — up to 690 V at ambient temperature 40 °C rated value	275 A
at AC-1 – — up to 690 V at ambient temperature 55 °C rated value	250 A
at AC-1 – — up to 690 V at ambient temperature 60 °C rated value	250 A
at AC-3 – — at 400 V rated value	97 A
at AC-3 – — at 690 V rated value	97 A
minimum cross-section in main circuit at maximum AC-1 rated value	140 mm²
at 1 current path at DC-1 – — at 24 V rated value	250 A
at 1 current path at DC-1 – — at 60 V rated value	250 A
at 1 current path at DC-1 – — at 110 V rated value	18 A
at 1 current path at DC-1 – — at 220 V rated value	3.4 A
at 1 current path at DC-1 – — at 440 V rated value	0.8 A
at 1 current path at DC-1 – — at 600 V rated value	0.5 A
with 2 current paths in series at DC-1 – — at 24 V rated value	250 A
with 2 current paths in series at DC-1 – — at 60 V rated value	250 A
with 2 current paths in series at DC-1 – — at 110 V rated value	250 A
with 2 current paths in series at DC-1 – — at 220 V rated value	20 A
with 2 current paths in series at DC-1 – — at 440 V rated value	3.2 A
with 2 current paths in series at DC-1 – — at 600 V rated value	1.6 A
with 3 current paths in series at DC-1 – — at 24 V rated value	250 A
with 3 current paths in series at DC-1 – — at 60 V rated value	250 A
with 3 current paths in series at DC-1 – — at 110 V rated value	250 A
with 3 current paths in series at DC-1 – — at 220 V rated value	250 A
with 3 current paths in series at DC-1 – — at 440 V rated value	11.5 A
with 3 current paths in series at DC-1 – — at 600 V rated value	4 A
at 1 current path at DC-3 at DC-5 – — at 24 V rated value	250 A
at 1 current path at DC-3 at DC-5 – — at 60 V rated value	7.5 A
at 1 current path at DC-3 at DC-5 – — at 110 V rated value	2.5 A
at 1 current path at DC-3 at DC-5 – — at 220 V rated value	0.6 A
at 1 current path at DC-3 at DC-5 – — at 440 V rated value	0.17 A
at 1 current path at DC-3 at DC-5 – — at 600 V rated value	0.12 A
with 2 current paths in series at DC-3 at DC-5 – — at 24 V rated value	250 A
with 2 current paths in series at DC-3 at DC-5 – — at 60 V rated value	250 A
with 2 current paths in series at DC-3 at DC-5 – — at 110 V rated value	250 A
with 2 current paths in series at DC-3 at DC-5 – — at 220 V rated value	2.5 A
with 2 current paths in series at DC-3 at DC-5 – — at 440 V rated value	0.65 A
with 2 current paths in series at DC-3 at DC-5 – — at 600 V rated value	0.37 A
with 3 current paths in series at DC-3 at DC-5 – — at 24 V rated value	250 A
with 3 current paths in series at DC-3 at DC-5 – — at 60 V rated value	250 A
with 3 current paths in series at DC-3 at DC-5 – — at 110 V rated value	250 A
with 3 current paths in series at DC-3 at DC-5 – — at 220 V rated value	250 A
with 3 current paths in series at DC-3 at DC-5 – — at 440 V rated value	1.4 A
with 3 current paths in series at DC-3 at DC-5 – — at 600 V rated value	0.75 A
no-load switching frequency – at AC	2 000 1/h
no-load switching frequency – at DC	2 000 1/h
operating frequency – at AC-1 maximum	600 1/h

Control circuit/ Control

type of voltage	AC/DC
type of voltage of the control supply voltage	AC/DC
control supply voltage at AC – at 50 Hz rated value	200 ... 220 V
control supply voltage at AC – at 60 Hz rated value	200 ... 220 V
control supply voltage at DC rated value	200 ... 220 V
operating range factor control supply voltage rated value of magnet coil at DC – initial value	0.8
operating range factor control supply voltage rated value of magnet coil at DC – full-scale value	1.1
operating range factor control supply voltage rated value of magnet coil at AC – at 50 Hz	0.8 ... 1.1
operating range factor control supply voltage rated value of magnet coil at AC – at 60 Hz	0.8 ... 1.1
design of the surge suppressor	with varistor
at minimum rated control supply voltage at AC – — at 50 Hz	250 V·A
at minimum rated control supply voltage at AC – — at 60 Hz	250 V·A
at maximum rated control supply voltage at AC – — at 60 Hz	300 V·A
at maximum rated control supply voltage at AC – — at 50 Hz	300 V·A
apparent pick-up power of magnet coil at AC – at 50 Hz	300 V·A
inductive power factor with closing power of the coil – at 50 Hz	0.9
apparent holding power – at minimum rated control supply voltage at DC	4.3 V·A
apparent holding power – at maximum rated control supply voltage at DC	5.2 V·A
at minimum rated control supply voltage at AC – — at 50 Hz	4.8 V·A
at minimum rated control supply voltage at AC – — at 60 Hz	4.8 V·A
at maximum rated control supply voltage at AC – — at 50 Hz	5.8 V·A
at maximum rated control supply voltage at AC – — at 60 Hz	5.8 V·A
apparent holding power of magnet coil at AC – at 50 Hz	5.8 V·A
inductive power factor with the holding power of the coil – at 50 Hz	0.8
closing power of magnet coil at DC	360 W
holding power of magnet coil at DC	5.2 W
closing delay – at AC	20 ... 95 ms
closing delay – at DC	20 ... 95 ms
opening delay – at AC	40 ... 60 ms
opening delay – at DC	40 ... 60 ms
arcing time	10 ... 15 ms
control version of the switch operating mechanism	Standard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts	2
attachable	4
instantaneous contact	2
number of NO contacts for auxiliary contacts	2
attachable	4
instantaneous contact	2
operational current at AC-12 maximum	10 A
operational current at AC-15 – at 230 V rated value	6 A
operational current at AC-15 – at 400 V rated value	3 A
operational current at AC-15 – at 500 V rated value	2 A
operational current at AC-15 – at 690 V rated value	1 A
operational current at DC-13 – at 24 V rated value	10 A
operational current at DC-13 – at 48 V rated value	2 A
operational current at DC-13 – at 60 V rated value	2 A
operational current at DC-13 – at 110 V rated value	1 A
operational current at DC-13 – at 125 V rated value	0.9 A
operational current at DC-13 – at 220 V rated value	0.3 A
operational current at DC-13 – at 600 V rated value	0.1 A
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
for short-circuit protection of the main circuit – — with type of coordination 1 required	gG: 355 A (690 V, 100 kA)
for short-circuit protection of the main circuit – — with type of coordination 2 required	gR: 350 A (690 V, 100 kA)
for short-circuit protection of the main circuit – for short-circuit protection of the auxiliary switch required	gG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position	with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
fastening method side-by-side mounting	Yes
fastening method	screw fixing
height	172 mm
width	120 mm
depth	170 mm
with side-by-side mounting – — forwards	20 mm
with side-by-side mounting – — upwards	10 mm
with side-by-side mounting – — downwards	10 mm
with side-by-side mounting – — at the side	0 mm
for grounded parts – — forwards	20 mm
for grounded parts – — upwards	10 mm
for grounded parts – — at the side	10 mm
for grounded parts – — downwards	10 mm
for live parts – — forwards	20 mm
for live parts – — upwards	10 mm
for live parts – — downwards	10 mm
for live parts – — at the side	10 mm

Connections/ Terminals

type of electrical connection – for main current circuit	Connection bar
type of electrical connection – for auxiliary and control circuit	screw-type terminals
type of electrical connection – at contactor for auxiliary contacts	Screw-type terminals
type of electrical connection – of magnet coil	screw terminal
width of connection bar	17 mm
thickness of connection bar	3 mm
diameter of holes	9 mm
number of holes	1
type of connectable conductor cross-sections – for AWG cables for main contacts	4 ... 250 kcmil
connectable conductor cross-section for main contacts – solid or stranded	25 ... 120 mm²
connectable conductor cross-section for main contacts – stranded	25 ... 120 mm²
connectable conductor cross-section for auxiliary contacts – solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for auxiliary contacts – finely stranded with core end processing	0.5 ... 2.5 mm²
for auxiliary contacts – — solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
for auxiliary contacts – — solid or stranded	2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
for auxiliary contacts – — finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for auxiliary contacts – for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14), 1x 12
AWG number as coded connectable conductor cross section for auxiliary contacts	18 ... 14

Safety related data

product function – mirror contact according to IEC 60947-4-1	Yes
product function – positively driven operation according to IEC 60947-5-1	No
service life maximum	20 a
protection class IP on the front according to IEC 60529	IP00; IP20 with box terminal/cover
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front with box terminal/cover
