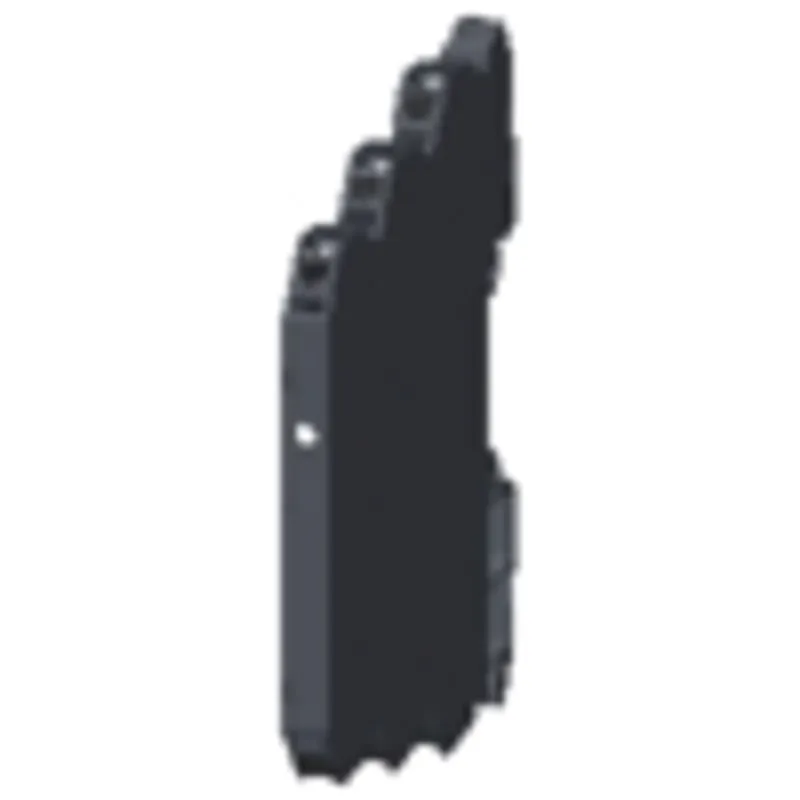

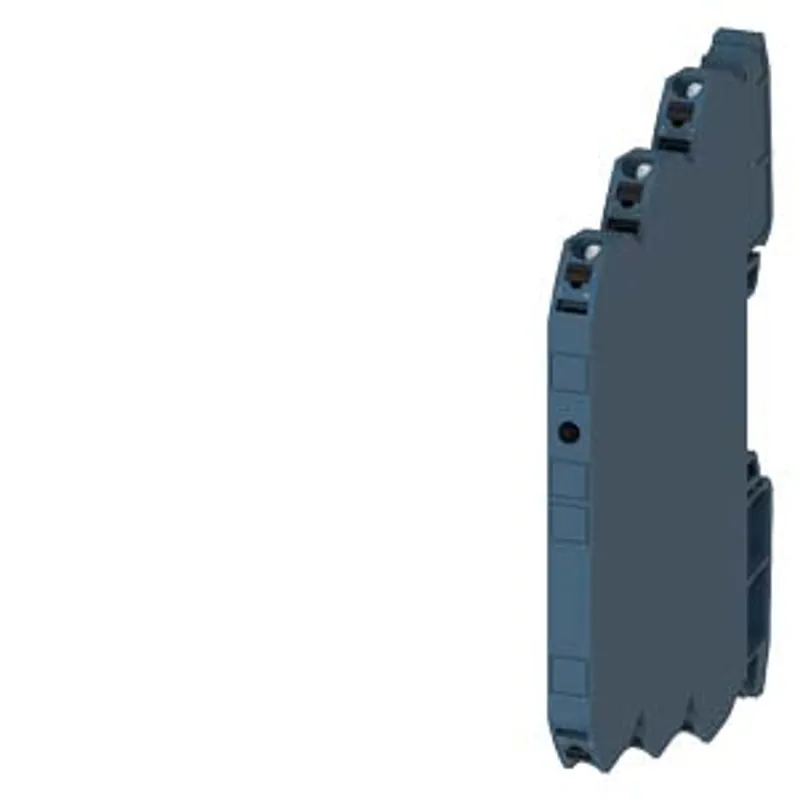

Siemens 3RS7005-2KE00
Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V, 0/4-20 mA; output: 0-50/100 Hz/1/10 kHz
- MPN
- 3RS7005-2KE00
- Category
- SIRIUS 3RS70 signal converters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RS7005-2KE00?
Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V, 0/4-20 mA; output: 0-50/100 Hz/1/10 kHz; Spring-type terminal (push-in)
Specifications
General
| product brand name | SIRIUS |
| product category | Signal converter |
| product designation | multi-range converters |
| design of the product | active, switchable |
| product type designation | 3RS70 |
General technical data
| display version LED | Yes |
| number of channels | 1 |
| consumed active power | 0.29 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 50 V |
| surge voltage resistance rated value | 2 500 V |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 6 ... 150 Hz: 2 g |
| reference code according to IEC 81346-2 | T |
| Substance Prohibitance (day/month/year) | 03/25/2015 |
| Net Weight | 0.048 kg |
Supply voltage
| supply voltage at AC — at 50 Hz rated value | 24 V |
| supply voltage at AC — at 60 Hz rated value | 24 V |
| supply voltage at DC rated value | 24 V |
| supply voltage frequency rated value | 60 ... 50 Hz |
| operating range factor supply voltage rated value — at AC at 50 Hz | 0.8 ... 1.1 |
| operating range factor supply voltage rated value — at AC at 60 Hz | 0.8 ... 1.1 |
| operating range factor supply voltage rated value — at DC | 0.8 ... 1.1 |
Precision
| relative metering precision | 0.1 % |
| relative linearity deviation | 0.05 % |
| temperature drift per °C | 0.015 %/°C |
| limit frequency | 30 Hz |
| settling time for 1 % deviation | 17 ms |
Main circuit
| type of voltage | AC/DC |
Inputs/ Outputs
| input voltage maximum | 30 V |
| property of the output short-circuit proof | Yes |
| type of signal at input | 0 ... 10 V, 0 ... 20 mA, 4 ... 20 mA |
| type of signal at output | 0 ... 50 Hz, 0 ... 100 Hz, 0 ... 1 kHz, 0 ... 10 kHz |
| input impedance of current input maximum | 100 Ω |
| input impedance of voltage input minimum | 330 kΩ |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | Environment B |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to burst according to IEC 61000-4-4 | 1 kV 5/50 ns |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |

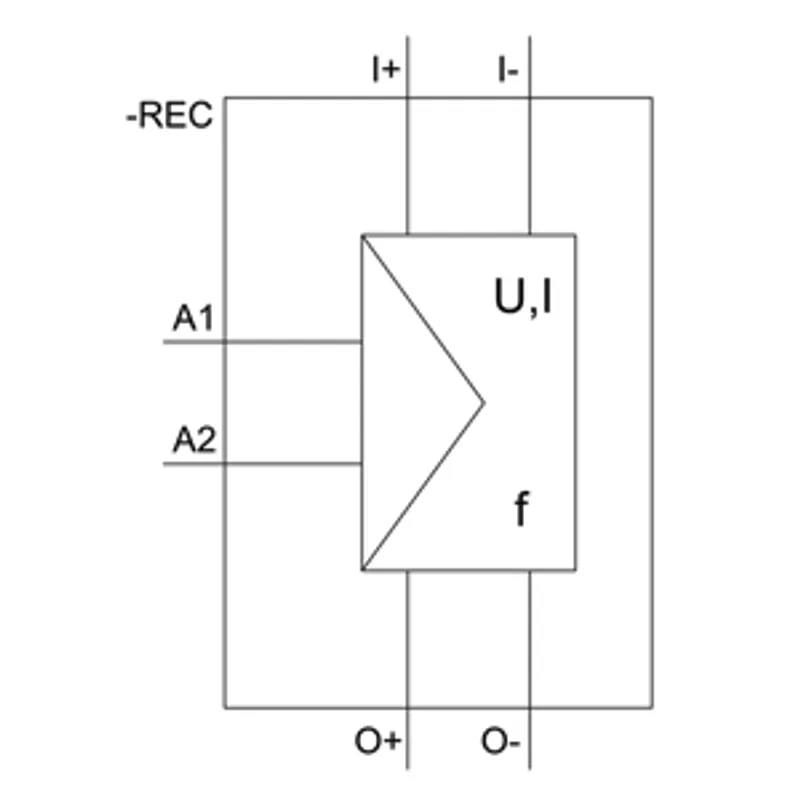

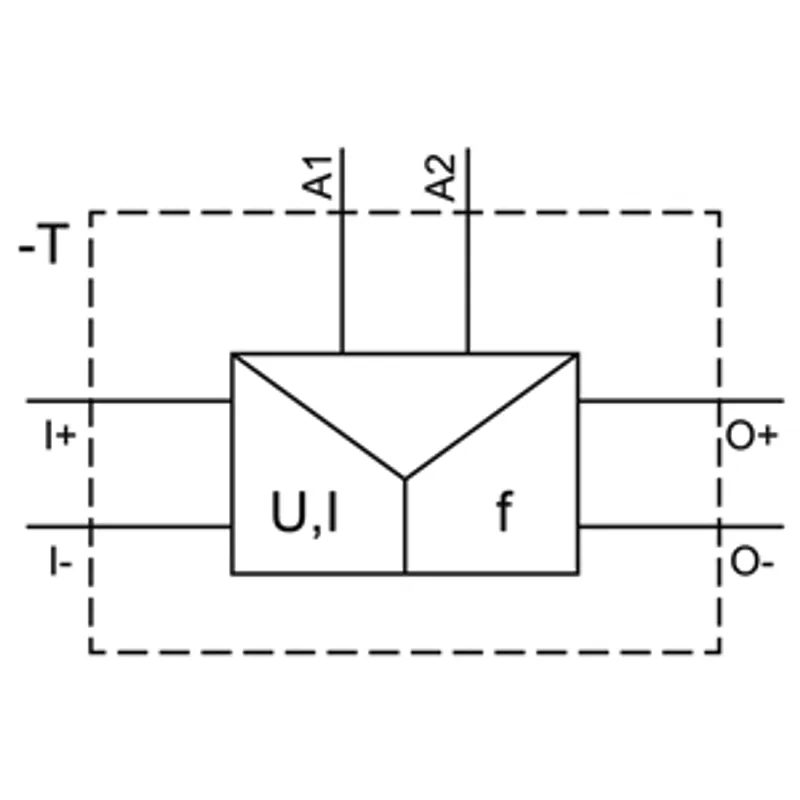

Galvanic isolation
| design of the electrical isolation | 3 paths |
| galvanic isolation — between input and output | Yes |
| galvanic isolation — between the outputs | No |
| galvanic isolation — between the inputs | No |
| galvanic isolation — between the voltage supply and other circuits | Yes |
Connections/ Terminals
| type of electrical connection | spring-loaded terminal (push-in) |
| type of connectable conductor cross-sections — solid | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 1x (20 ... 14) |
| connectable conductor cross-section — solid | 0.25 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 2.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 14 |
| AWG number as coded connectable conductor cross section — stranded | 20 ... 14 |

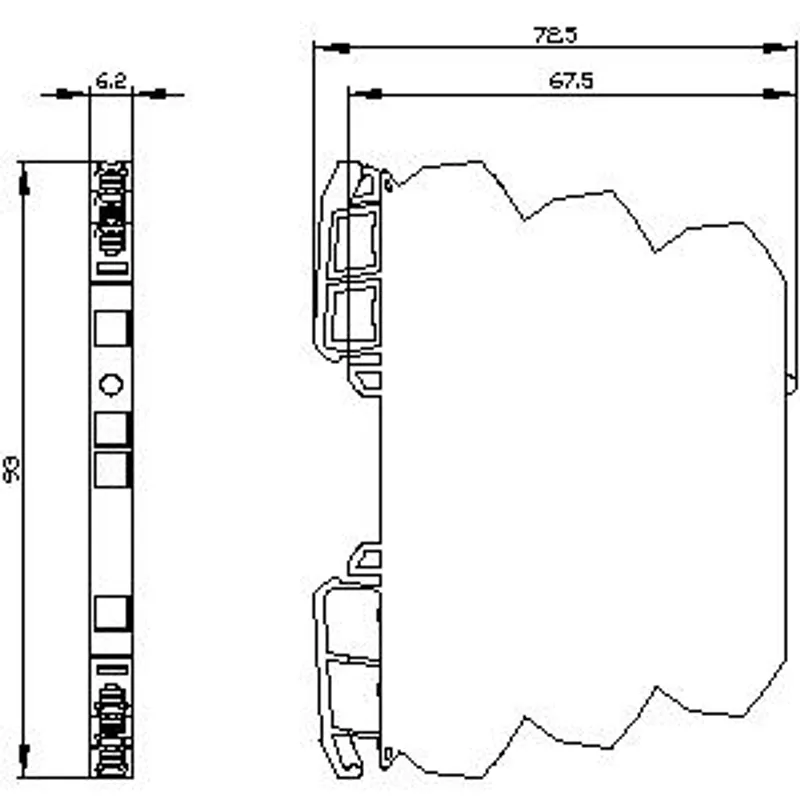

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on mounting |
| height | 93 mm |
| width | 6.2 mm |
| depth | 72.5 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| relative humidity during operation | 10 ... 95 % |
