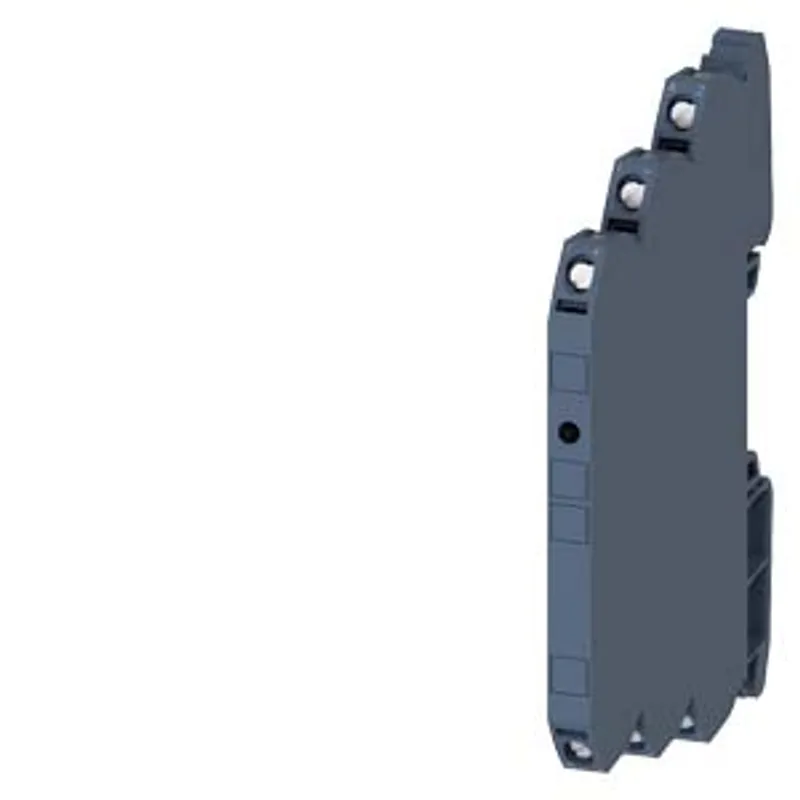

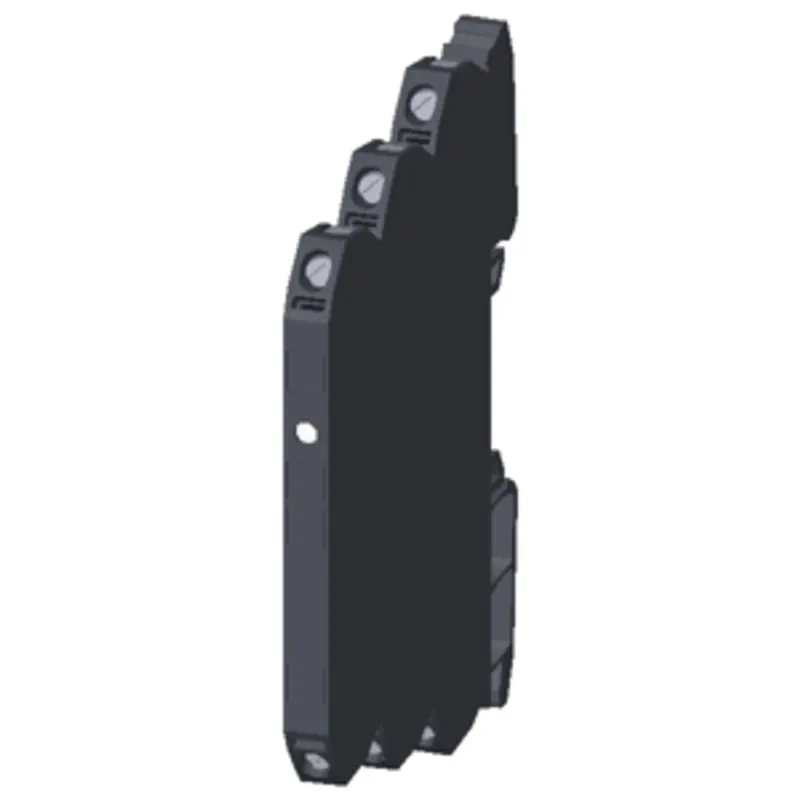

Siemens 3RS7002-1DE00

Separation amplifier 24 V AC/DC, 3-way separation input: 0-20 mA output: 4-20 mA screw terminal

MPN: 3RS7002-1DE00
Category: SIRIUS 3RS70 signal converters

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RS7002-1DE00?

Separation amplifier 24 V AC/DC, 3-way separation input: 0-20 mA output: 4-20 mA screw terminal

Specifications

General

product brand name	SIRIUS
product category	Signal converter
product designation	Single-range converters
design of the product	active
product type designation	3RS70

General technical data

display version LED	Yes
number of channels	1
consumed active power	0.29 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value	50 V
surge voltage resistance rated value	2 500 V
shock resistance according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-6	6 ... 150 Hz: 2 g
reference code according to IEC 81346-2	T
Substance Prohibitance (day/month/year)	03/25/2015
Net Weight	0.048 kg

Supply voltage

supply voltage at AC — at 50 Hz rated value	24 V
supply voltage at AC — at 60 Hz rated value	24 V
supply voltage at DC rated value	24 V
supply voltage frequency rated value	60 ... 50 Hz
operating range factor supply voltage rated value — at AC at 50 Hz	0.8 ... 1.1
operating range factor supply voltage rated value — at AC at 60 Hz	0.8 ... 1.1
operating range factor supply voltage rated value — at DC	0.8 ... 1.1

Precision

relative metering precision	0.1 %
relative linearity deviation	0.05 %
temperature drift per °C	0.015 %/°C
voltage ripple maximum	20 mV
limit frequency	30 Hz
settling time for 1 % deviation	17 ms
rise time	6 ms

Main circuit

type of voltage

AC/DC

Inputs/ Outputs

input voltage maximum	30 V
property of the output short-circuit proof	Yes
type of signal at input	0 ... 20 mA
type of signal at output	4 ... 20 mA
input impedance of current input maximum	100 Ω
output load — at the current output maximum	500 Ω

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	Environment B
EMC immunity according to IEC 60947-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	1 kV 5/50 ns
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m
electrostatic discharge according to IEC 61000-4-2	6 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolation	3 paths
galvanic isolation — between input and output	Yes
galvanic isolation — between the outputs	No
galvanic isolation — between the inputs	No
galvanic isolation — between the voltage supply and other circuits	Yes

Connections/ Terminals

type of electrical connection	screw terminal
type of connectable conductor cross-sections — solid	1x (0.25 ... 2.5 mm²)
type of connectable conductor cross-sections — finely stranded with core end processing	1x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables solid	1x (20 ... 14)
connectable conductor cross-section — solid	0.25 ... 2.5 mm²
connectable conductor cross-section — finely stranded with core end processing	0.25 ... 1.5 mm²
AWG number as coded connectable conductor cross section — solid	20 ... 14
tightening torque with screw-type terminals	0.5 ... 0.6 N·m

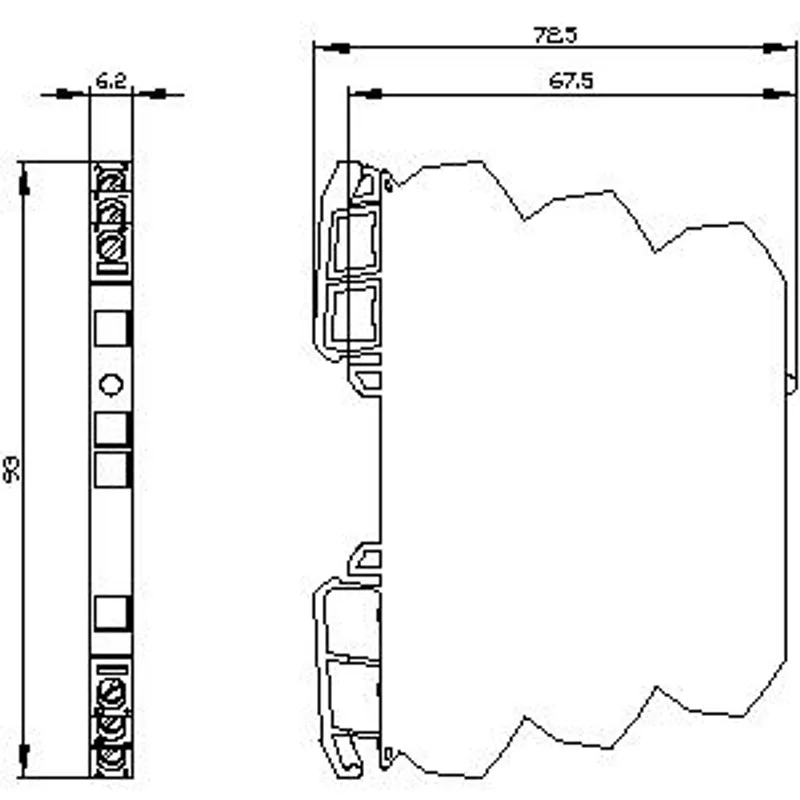

Installation/ mounting/ dimensions

mounting position	any
fastening method	snap-on mounting
height	93 mm
width	6.2 mm
depth	72.5 mm
required spacing — with side-by-side mounting — forwards	0 mm
required spacing — with side-by-side mounting — backwards	0 mm
required spacing — with side-by-side mounting — upwards	0 mm
required spacing — with side-by-side mounting — downwards	0 mm
required spacing — with side-by-side mounting — at the side	0 mm
required spacing — for grounded parts — forwards	0 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	0 mm
required spacing — for grounded parts — at the side	0 mm
required spacing — for grounded parts — downwards	0 mm
required spacing — for live parts — forwards	0 mm
required spacing — for live parts — backwards	0 mm
required spacing — for live parts — upwards	0 mm
required spacing — for live parts — downwards	0 mm
required spacing — for live parts — at the side	0 mm

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
relative humidity during operation	10 ... 95 %
