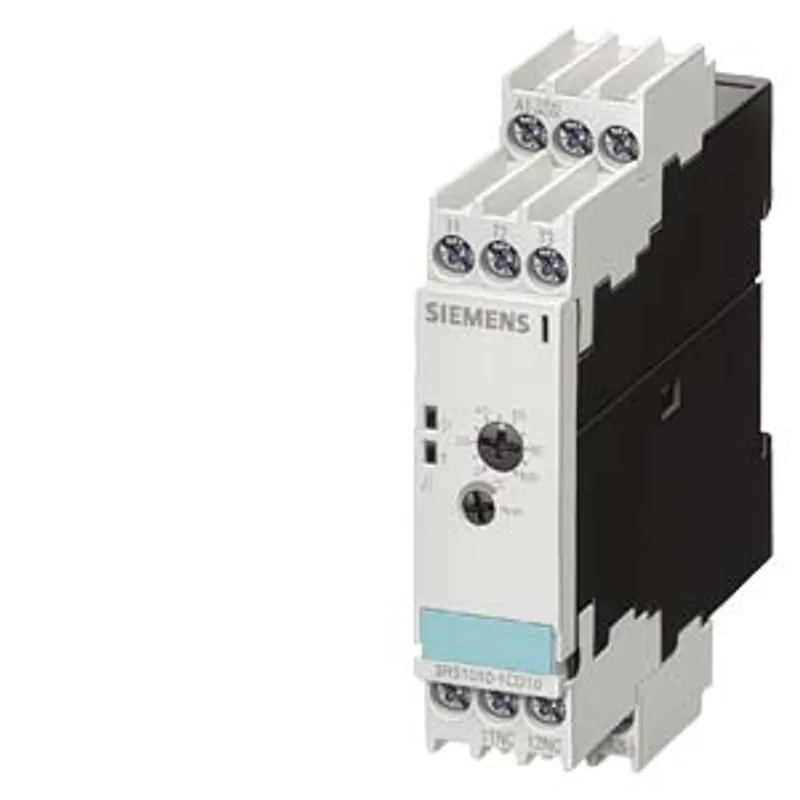

Siemens 3RS1000-1CK10
Temperature monitoring relay Pt100, overshoot 1 threshold value
- MPN
- 3RS1000-1CK10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RS1000-1CK10?
temperature monitoring relay Pt100, overshoot 1 threshold value, width 22.5 mm 0 °C to 100 °C 110-120/220-240 V AC 1 NO + 1 NC, quiescent current principle screw terminal !!!product phase-out!!! the preferred successor is 3RS2500-1AW30
Specifications
General
| product brand name | SIRIUS |
| product designation | Temperature monitoring relay |
| design of the product | Overshoot, 1 threshold value |
| product type designation | 3RS10 |
General technical data
| power loss [W] maximum | 2 W |
| power loss [V∙A] maximum | 4 VA |
| reference code according to IEC 81346-2 | K |
| measurable temperature — initial value | 0 °C |
| measurable temperature — full-scale value | 100 °C |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.165 kg |
| product function — error memory | No |
| product function — external reset | No |
| design of the sensor connectable | PT100 (resistance sensor) |
Control circuit/ Control
| type of voltage | AC |
| control supply voltage 1 at AC — at 50 Hz rated value | 110 V |
| control supply voltage 1 at AC — at 60 Hz rated value | 110 V |
| control supply voltage 2 at AC — at 50 Hz rated value | 230 V |
| control supply voltage 2 at AC — at 60 Hz rated value | 230 V |
| supply voltage frequency for auxiliary and control circuit | 50 ... 60 Hz |
| number of measuring circuits | 1 |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
Connections/ Terminals
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| type of electrical connection plug-in socket | Yes |
Installation/ mounting/ dimensions
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 83 mm |
| width | 22.5 mm |
| depth | 91 mm |
Ambient conditions
| ambient temperature during operation | -25 ... +60 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RS1000-1CK10: frequently asked questions
When can 3RS1000-1CK10 be shipped?
3RS1000-1CK10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RS1000-1CK10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RS1000-1CK10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RS1000-1CK10, subject to availability and destination.
