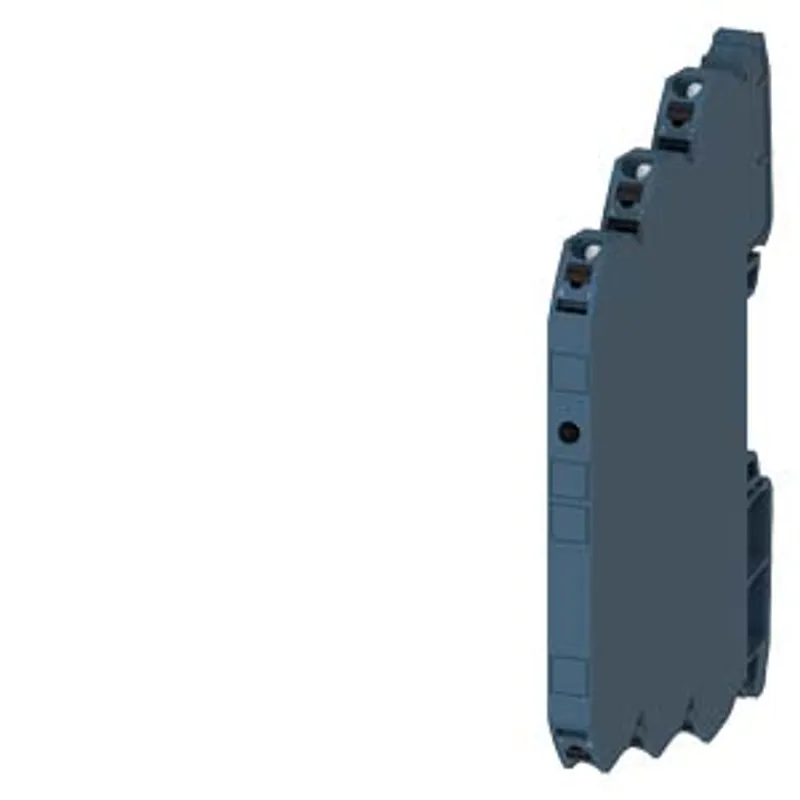

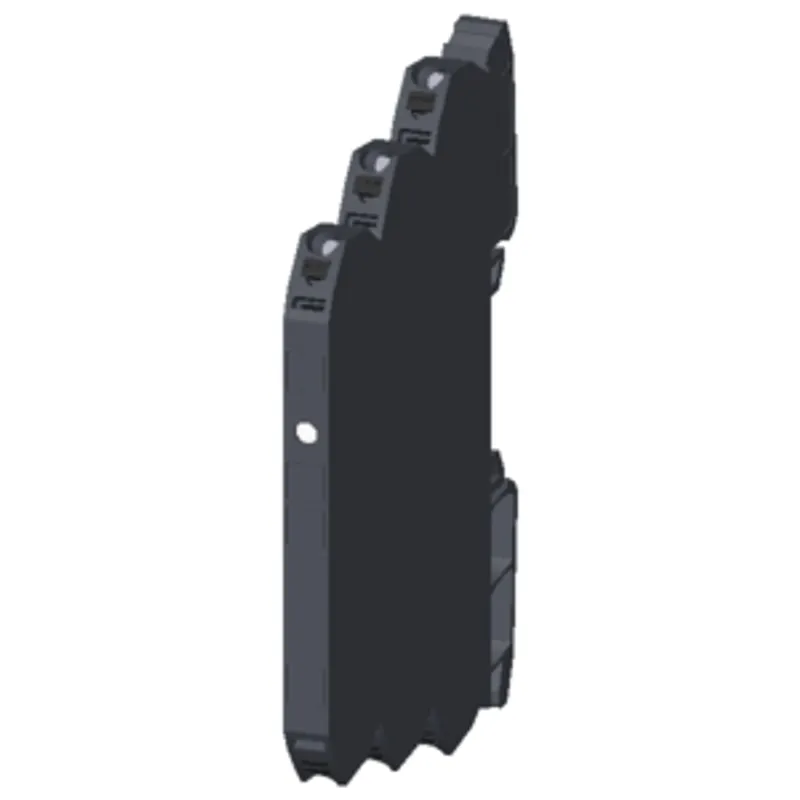

Siemens 3RQ3055-2SM30
!!! phased-out product !!! the preferred successor is 3RQ4055-2SM30 output coupler optocoupler 1 NO
- MPN
- 3RQ3055-2SM30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

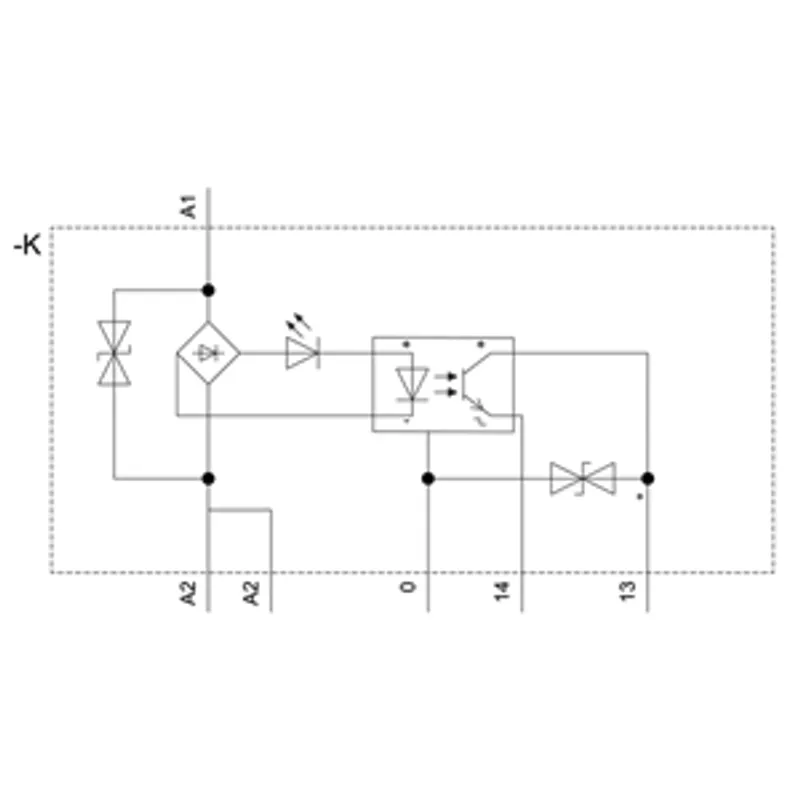

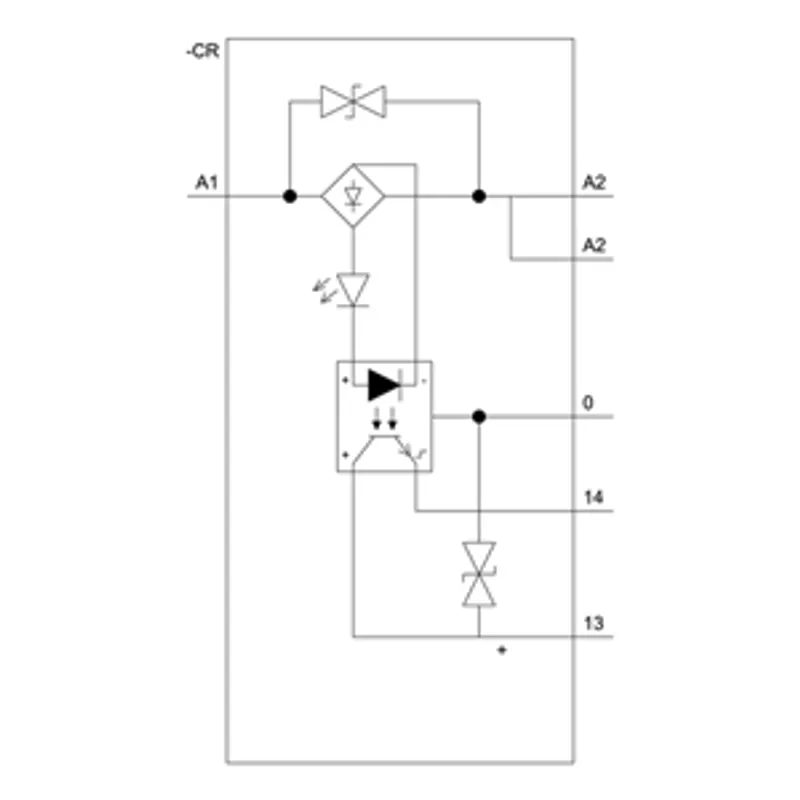

What is the Siemens 3RQ3055-2SM30?
!!! phased-out product !!! the preferred successor is 3RQ4055-2SM30 output coupler optocoupler 1 NO, transistor, 24 V DC output max. 30 V DC, 5 A short-circuit-proof spring-loaded terminal (push-in) width 6.2 mm thermal current 5 A
Specifications
General
| product brand name | SIRIUS |
| product category | SIRIUS 3RQ3 coupling relays in slim design |
| product designation | Coupling relays with semiconductor output (not plug-in) |
| design of the product | Output coupling link |
| product type designation | 3RQ3 |
General technical data
| display version LED | Yes |
| product feature protective coating on printed-circuit board | No |
| product component — relay output | No |
| product component — semi-conductor output | Yes |
| consumed active power | 0.3 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 50 V |
| surge voltage resistance rated value | 2.5 kV |
| flammability class of enclosure material | UL94 V-0 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 6 ... 150 Hz: 2 g |
| switching frequency | 100 Hz |
| thermal current | 5 A |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 03/25/2015 |
| Net Weight | 0.031 kg |
Control circuit/ Control
| control supply voltage at DC rated value | 11 ... 30 V |
| operating range factor control supply voltage rated value at DC — initial value | 1 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1 |
| minimum switching voltage when switching on | 11 V |
| maximum switching voltage when switching off | 5 V |
| ON-delay time — at DC maximum | 0.2 ms |
| OFF-delay time maximum | 0.3 ms |
Mechanical data
| product component plug-in socket | No |
Auxiliary circuit
| type of switching contact | NO contact |
| number of NO contacts for auxiliary contacts | 1 |
Main circuit
| type of voltage | DC |
Inputs/ Outputs
| property of the output short-circuit proof | Yes |
| switching voltage of the semiconductor output at DC | 10 ... 30 V |
| ampacity of the semiconductor output at DC | 5 mA |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | ambience A (industrial sector) |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Display
| display version as status display by LED | LED green |
Connections/ Terminals
| product function removable terminal | No |
| type of electrical connection — for auxiliary and control circuit | spring-loaded terminals (push-in) |
| type of connectable conductor cross-sections — solid | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 1x (20 ... 14) |
| connectable conductor cross-section — solid | 0.25 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 2.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 14 |
| AWG number as coded connectable conductor cross section — stranded | 20 ... 14 |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on mounting |

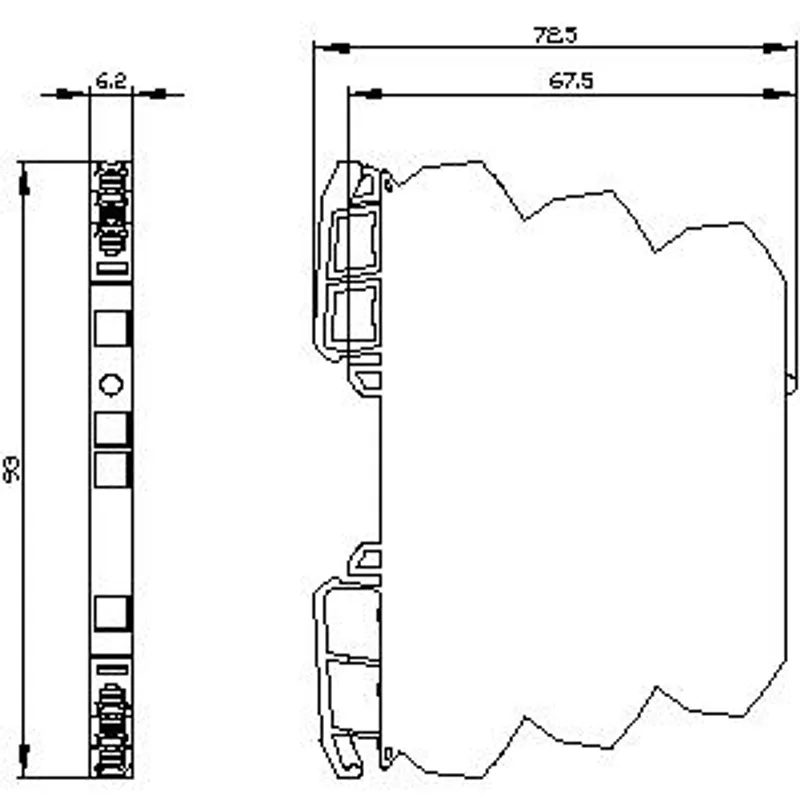

| height | 93 mm |
| width | 6.2 mm |
| depth | 72.5 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity during operation | 10 ... 95 % |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RQ3055-2SM30: frequently asked questions
When can 3RQ3055-2SM30 be shipped?
3RQ3055-2SM30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RQ3055-2SM30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
