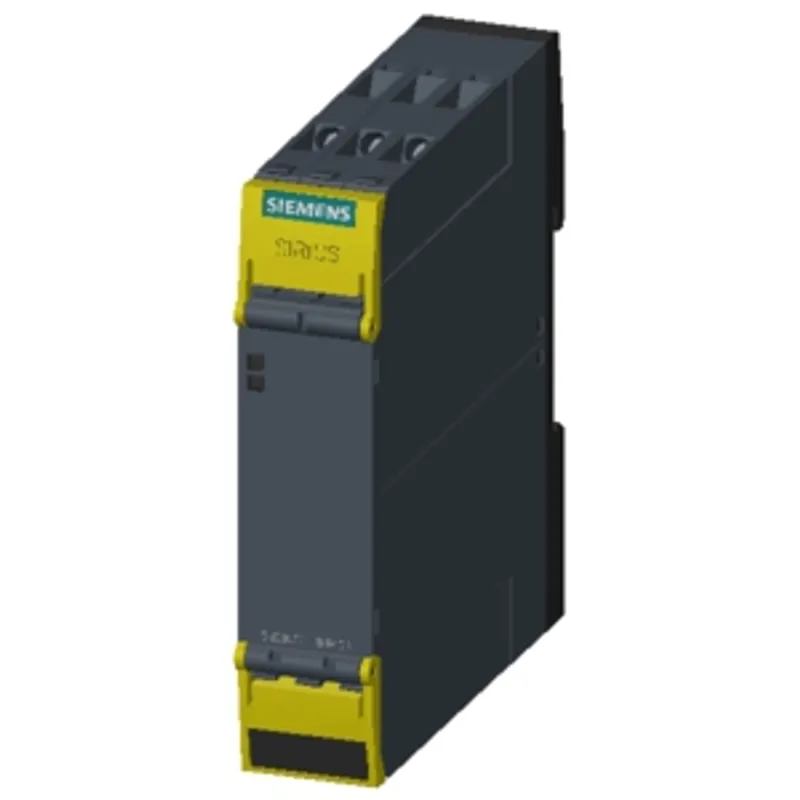

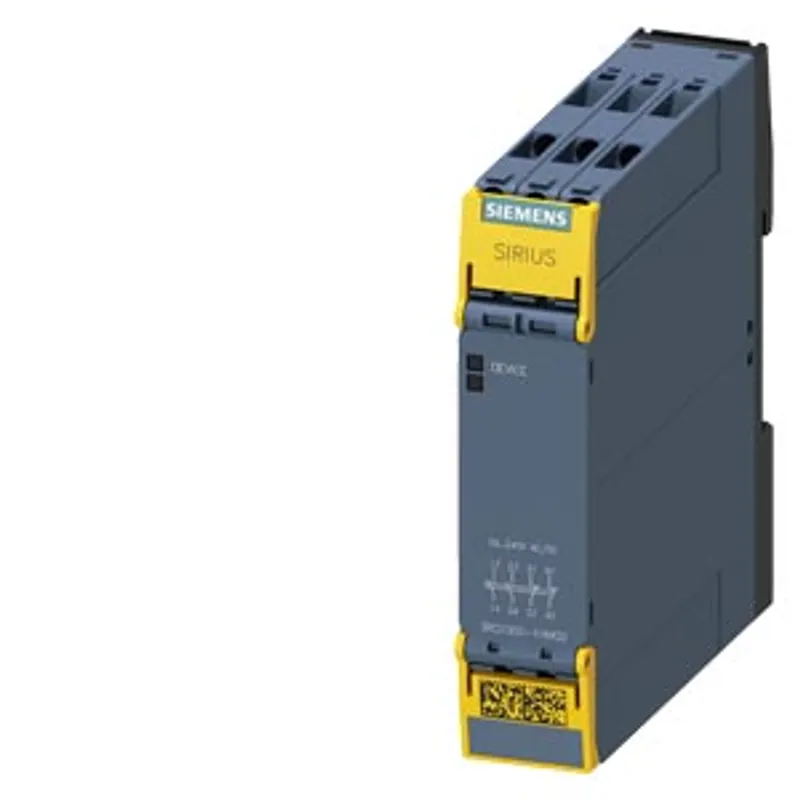

What is the Siemens 3RQ1000-1HW00?
Positively driven coupling relay in industrial enclosure 2 NO contacts / 2 NC contacts 24 V to 240 V AC/DC SIL 2 / PL c Screw terminals
Specifications
General
| product brand name | SIRIUS |
| product designation | force-guided coupling relay |
| design of the product | fail-safe up to SIL 2/PL c |
| product type designation | 3RQ1 |
General technical data
| product feature protective coating on printed-circuit board | No |
| consumed active power | 2.3 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| shock resistance — according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| operating frequency maximum | 360 1/h |
| switching behavior | monostable |
| mechanical service life (operating cycles) typical | 10 000 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 05/31/2018 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7 |
| Net Weight | 0.161 kg |
Product Function
| suitability for operation device connector 3ZY12 | No |
Control circuit/ Control
| control supply voltage at AC — at 50 Hz rated value | 24 ... 240 V |
| control supply voltage at AC — at 50 Hz | 24 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 240 V |
| control supply voltage at AC — at 60 Hz | 24 ... 240 V |
| control supply voltage at DC rated value | 24 ... 240 V |
| control supply voltage at DC | 24 ... 240 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.7 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |
| ON-delay time — at AC maximum | 50 ms |
| ON-delay time — at DC maximum | 50 ms |
| OFF-delay time maximum | 60 ms |
Switching Function
| design of the switching function | NC contact and NO contact |
Mechanical data
| product component plug-in socket | No |
Short-circuit protection
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 6 A |
Auxiliary circuit
| material of switching contacts | AgSnO2 + Au flash |

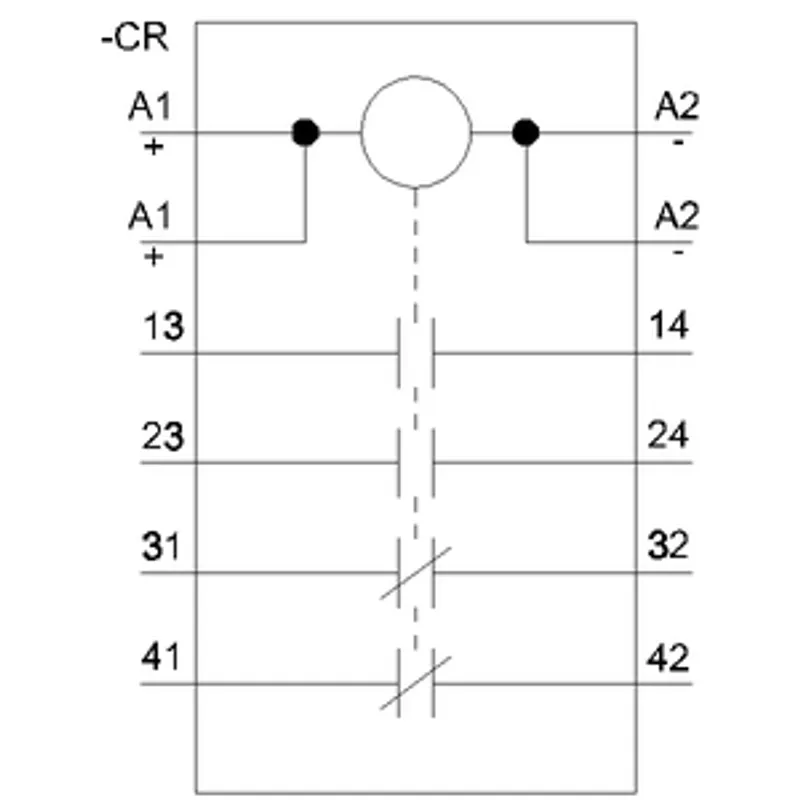

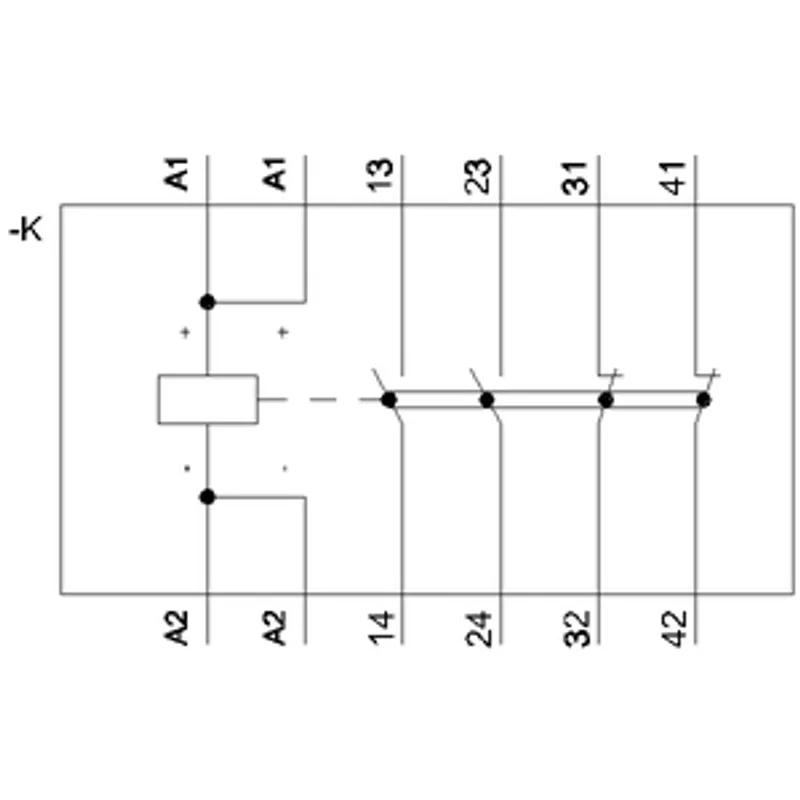

| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| number of CO contacts for auxiliary contacts | 0 |
| type of voltage | AC/DC |
Inputs/ Outputs
| output current minimum | 10 mA |
| ampacity of the output relay at AC-15 — at 250 V at 50/60 Hz | 1.5 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.2 A |
| ampacity of the output relay at DC-13 — at 250 V | 0.1 A |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | ambience A (industrial sector) |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV (line to ground) |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV (line to line) |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging, 8 kV air discharging |
Display
| product component LED | Yes |
Safety related data
| product function — positively driven operation according to IEC 60947-5-1 | Yes |
| suitability for use — safety-related switching on | No |
| suitability for use — safety-related switching OFF | Yes |
| safe state | safe shutdown |
| test wear-related service life necessary | Yes |
| stop category according to IEC 60204-1 | 0 |
| MTTFd | 470 a |
| Safety Integrity Level (SIL) — according to IEC 62061 | SIL 2 |
| performance level (PL) according to ISO 13849-1 | PL c |
| category according to ISO 13849-1 | 1 |
| device type according to ISO 13849-1 | 1 |
| overdimensioning according to ISO 13849-2 necessary | No |
| Safety Integrity Level (SIL) according to IEC 61508 | SIL 2 |
| safety device type according to IEC 61508-2 | Type A |
| PFHD with high demand rate according to IEC 61508 | 6E-7 1/h |
| PFDavg with low demand rate according to IEC 61508 | 0.002 |
| Safe failure fraction (SFF) | 85 % |
| hardware fault tolerance according to IEC 61508 | 0 |
| T1 value of service life according to IEC 61508 | 20 a |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | screw terminal |
| wire length at DC maximum | 2 000 m |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| connectable conductor cross-section — solid | 0.5 ... 4 mm² |
| connectable conductor cross-section — finely stranded with core end processing maximum | 4 mm² |
| connectable conductor cross-section — finely stranded without core end processing minimum | 0.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 12 ... 20 |
| AWG number as coded connectable conductor cross section — stranded | 12 ... 20 |
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m |
| stripped length of the cable for auxiliary and control contacts | 10 mm |

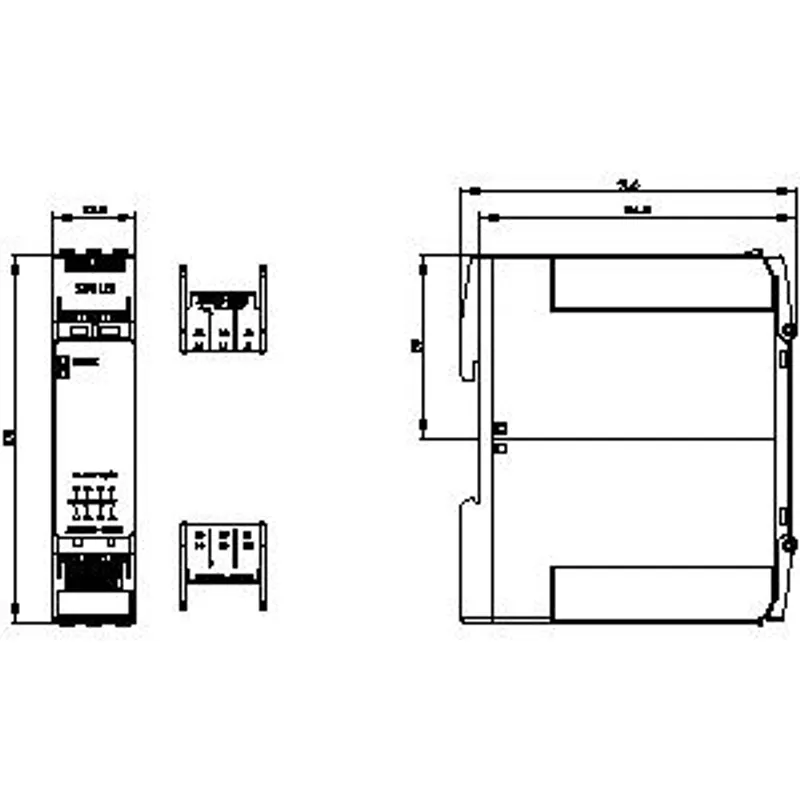

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 22.5 mm |
| depth | 90 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| relative humidity during operation | 10 ... 95 % |
