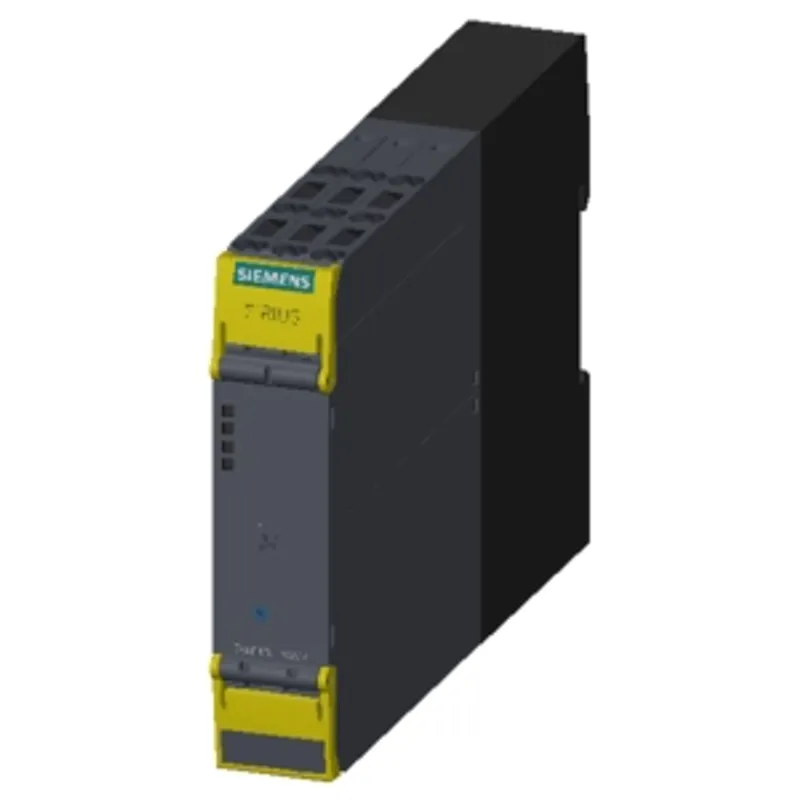

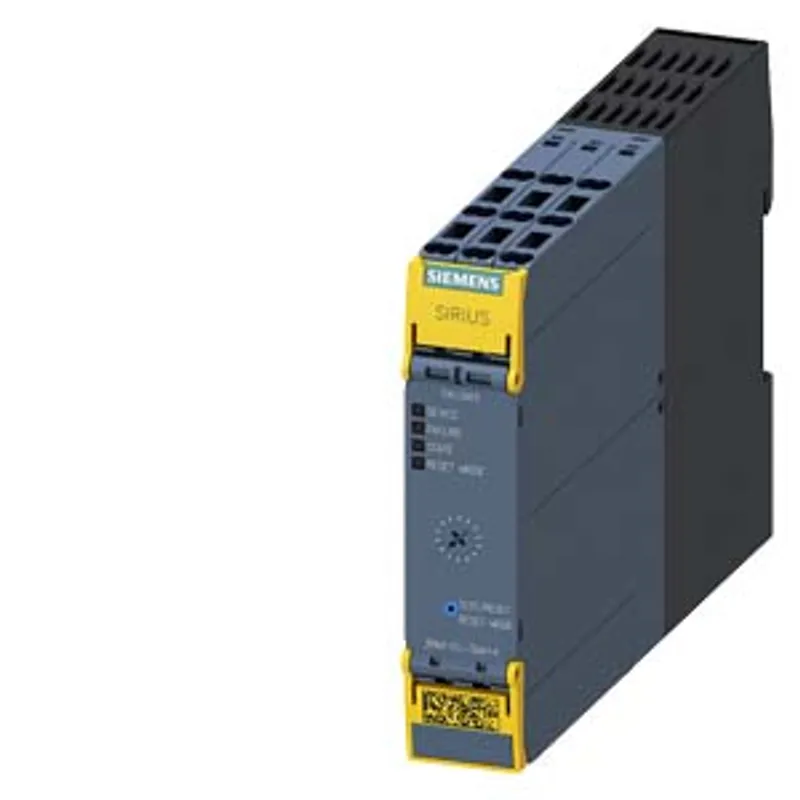

Siemens 3RM1102-3AA14

Fail-safe direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC

MPN
3RM1102-3AA14
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RM1102-3AA14?

fail-safe direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC, screw/spring-loaded terminals (push-in)

Specifications

General

product brand nameSIRIUS
product categoryMotor starter
product designationFail-safe direct starter
design of the productWith electronic overload protection and safety-related disconnection
product type designation3RM1

General technical data

equipment version according to IEC 60947-4-23
product functionfail-safe direct starter
product function — intrinsic device protectionYes
product function — for power supply reverse polarity protectionYes
suitability for operation device connector 3ZY12No
power loss [W] for rated value of the current — at AC in hot operating state per pole0.1 W
power loss [W] for rated value of the current — without load current share typical3.22 W
insulation voltage rated value500 V
overvoltage categoryIII
surge voltage resistance rated value6 kV
maximum permissible voltage for protective separation — between main and auxiliary circuit500 V
maximum permissible voltage for protective separation — between control and auxiliary circuit250 V
shock resistance6 g / 11 ms
vibration resistance1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz
operating frequency maximum1 1/s
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)03/01/2017
SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight0.285 kg
product function — direct startYes
product function — reverse startingNo
product function short circuit protectionNo

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1Class A
conducted interference — due to burst according to IEC 61000-4-43 kV / 5 kHz
conducted interference — due to conductor-earth surge according to IEC 61000-4-54 kV signal lines 2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-52 kV
conducted interference — due to high-frequency radiation according to IEC 61000-4-610 V
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC
field-bound HF interference emission according to CISPR11Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC

Safety related data

product function suitable for safety functionYes
suitability for use — safety-related switching onNo
suitability for use — safety-related switching OFFYes
safe stateLoad circuit open
test wear-related service life necessaryYes
function test interval maximum1 a
diagnostics test interval by internal test function maximum600 s
stop category according to IEC 60204-10
proportion of dangerous failures — with low demand rate according to SN 319200.6 %
proportion of dangerous failures — with high demand rate according to SN 3192040 %
B10 value with high demand rate according to SN 319201 000 000
failure rate [FIT] with low demand rate according to SN 3192016 FIT
Safety Integrity Level (SIL) according to IEC 62061SIL 3
category according to EN ISO 13849-14
performance level (PL) according to ISO 13849-1PL e
category according to ISO 13849-14
device type according to ISO 13849-11
overdimensioning according to ISO 13849-2 necessaryNo
Safety Integrity Level (SIL) — according to IEC 615083
safety device type according to IEC 61508-2Type B
PFHD with high demand rate according to IEC 615082E-8 1/h
PFDavg with low demand rate according to IEC 615081.75E-5
Safe failure fraction (SFF)99.4 %
hardware fault tolerance according to IEC 615081
T1 value for proof test interval or service life according to IEC 6150820 a
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 2
PFHD with high demand rate according to IEC 61508 relating to ATEX5E-8 1/h
PFDavg with low demand rate according to IEC 61508 relating to ATEX0.0005
hardware fault tolerance according to IEC 61508 relating to ATEX0
T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a
certificate of suitability according to ATEX directive 2014/34/EUBVS 12 ATEX F 002 X
type of protection according to ATEX directive 2014/34/EUII (2)G [Ex e] [Ex d] [Ex px], II (2)D [Ex t] [Ex p], I (M2) [Ex d]

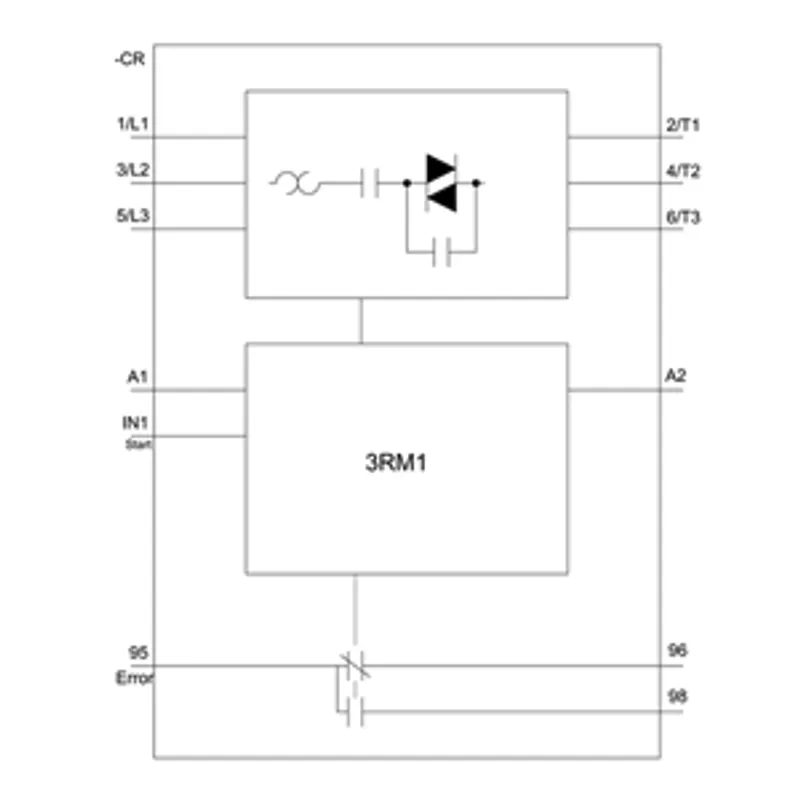

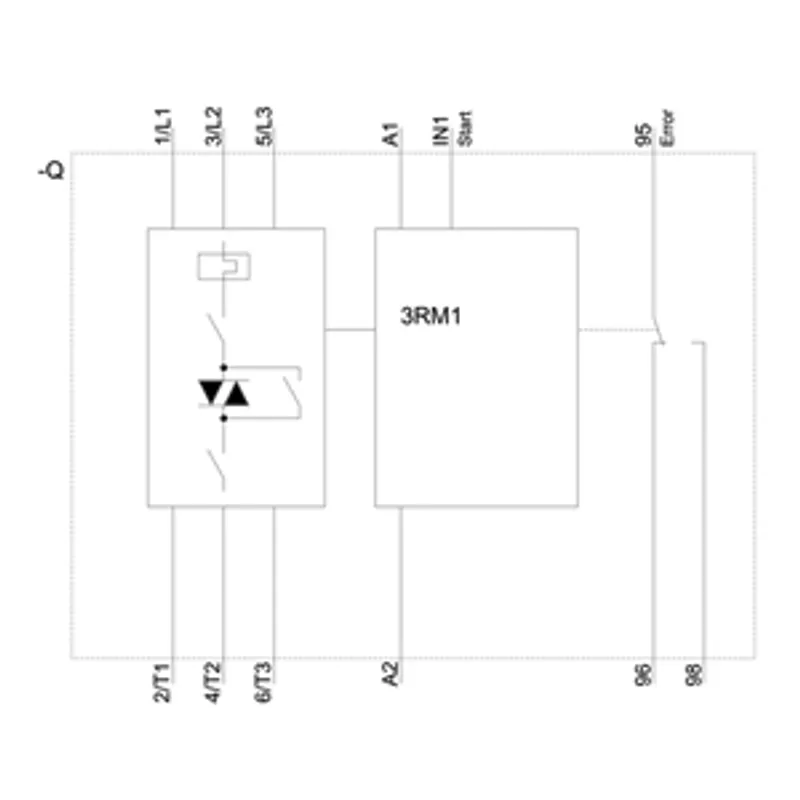

Main circuit

number of poles for main current circuit3
design of the switching contactHybrid
adjustable current response value current of the current-dependent overload release0.4 ... 2 A
minimum load [%]20 %; from set rated current
type of the motor protectionsolid-state
operating voltage rated value48 ... 500 V
relative symmetrical tolerance of the operating voltage10 %
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative symmetrical tolerance of the operating frequency10 %
operational current — at AC at 400 V rated value2 A
operational current — at AC-3 at 400 V rated value2 A
operational current — at AC-53a at 400 V at ambient temperature 40 °C rated value2 A
ampacity when starting maximum16 A
operating power for 3-phase motors at 400 V at 50 Hz0.09 ... 0.75 kW

Inputs/ Outputs

input voltage at digital input at DC rated value110 V
input voltage at digital input at AC rated value110 V
input current at digital input — for signal <1> at DC1.5 mA
input current at digital input — with signal <0> at DC0.25 mA
input current at digital input with signal <0> at AC — at 110 V0.2 mA
input current at digital input with signal <0> at AC — at 230 V0.4 mA
input current at digital input for signal <1> at AC — at 110 V1.1 mA
input current at digital input for signal <1> at AC — at 230 V2.3 mA
number of CO contacts for auxiliary contacts1
operational current of auxiliary contacts at AC-15 at 230 V maximum3 A
operational current of auxiliary contacts at DC-13 at 24 V maximum1 A

Control circuit/ Control

type of voltage of the control supply voltageAC/DC
control supply voltage at AC — at 50 Hz rated value110 ... 230 V
control supply voltage at AC — at 60 Hz rated value110 ... 230 V
relative negative tolerance of the control supply voltage at AC at 60 Hz15 %
relative positive tolerance of the control supply voltage at AC at 60 Hz10 %
control supply voltage 1 at AC — at 50 Hz110 ... 230 V
control supply voltage 1 at AC — at 60 Hz110 ... 230 V
control supply voltage frequency — 1 rated value50 Hz
control supply voltage frequency — 2 rated value60 Hz
relative negative tolerance of the control supply voltage at DC15 %
relative positive tolerance of the control supply voltage at DC10 %
control supply voltage 1 at DC rated value110 V
operating range factor control supply voltage rated value at DC — initial value0.85
operating range factor control supply voltage rated value at DC — full-scale value1.1
operating range factor control supply voltage rated value at AC at 50 Hz — initial value0.85
operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value1.1
operating range factor control supply voltage rated value at AC at 60 Hz — initial value0.85
operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value1.1
control current at AC — at 110 V in standby mode of operation8 mA
control current at AC — at 230 V in standby mode of operation6 mA
control current at AC — at 110 V when switching on40 mA
control current at AC — at 230 V when switching on25 mA
control current at AC — at 110 V during operation25 mA
control current at AC — at 230 V during operation14 mA
control current at DC — in standby mode of operation4 mA
control current at DC — during operation30 mA
inrush current peak — at AC at 110 V1 200 mA
inrush current peak — at AC at 230 V2 900 mA
inrush current peak — at AC at 110 V at switching on of motor1 200 mA
inrush current peak — at AC at 230 V at switching on of motor2 900 mA
duration of inrush current peak — at AC at 110 V1 ms
duration of inrush current peak — at AC at 230 V1 ms
duration of inrush current peak — at AC at 110 V at switching on of motor1 ms
duration of inrush current peak — at AC at 230 V at switching on of motor1 ms
power loss [W] in auxiliary and control circuit — in switching state OFF — with bypass circuit1.4 W
power loss [W] in auxiliary and control circuit — in switching state ON — with bypass circuit3.22 W

Response times

ON-delay time90 ... 120 ms
OFF-delay time60 ... 90 ms

Power Electronics

operational current — at 40 °C rated value2 A
operational current — at 50 °C rated value2 A
operational current — at 55 °C rated value2 A
operational current — at 60 °C rated value2 A

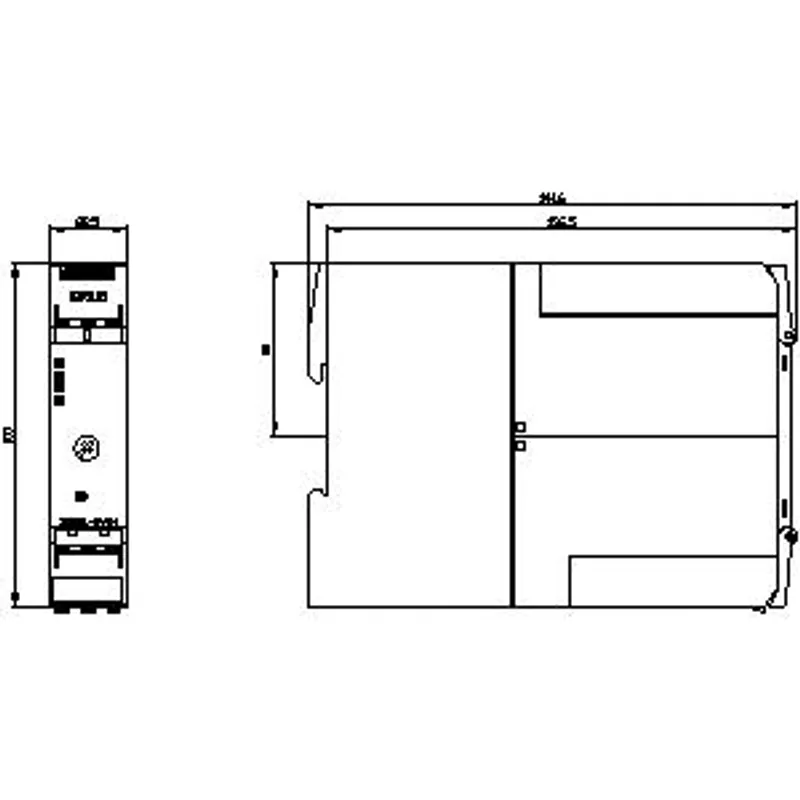

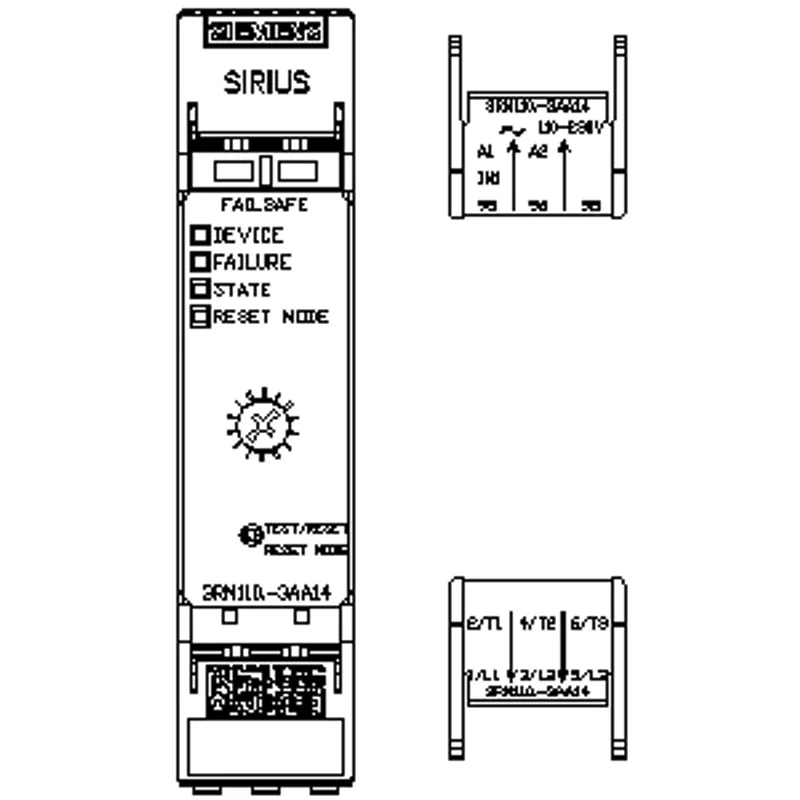

Installation/ mounting/ dimensions

mounting positionvertical, horizontal, standing (observe derating)
fastening methodscrew and snap-on mounting onto 35 mm DIN rail
height100 mm
width22.5 mm
depth141.6 mm
required spacing — with side-by-side mounting — forwards0 mm
required spacing — with side-by-side mounting — backwards0 mm
required spacing — with side-by-side mounting — upwards50 mm
required spacing — with side-by-side mounting — downwards50 mm
required spacing — with side-by-side mounting — at the side0 mm
required spacing — for grounded parts — forwards0 mm
required spacing — for grounded parts — backwards0 mm
required spacing — for grounded parts — upwards50 mm
required spacing — for grounded parts — at the side3.5 mm
required spacing — for grounded parts — downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m
ambient temperature — during operation-25 ... +60 °C
ambient temperature — during storage-40 ... +70 °C
ambient temperature — during transport-40 ... +70 °C
environmental category during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation10 ... 95 %
air pressure according to SN 31205900 ... 1 060 hPa

Communication/ Protocol

protocol is supported — PROFINET IO protocolNo
protocol is supported — PROFIsafe protocolNo
product function bus communicationNo
protocol is supported AS-Interface protocolNo

Connections/ Terminals

type of electrical connectionscrew-type terminals for main circuit, spring-loaded terminals (push-in) for control circuit
type of electrical connection — for main current circuitscrew-type terminals
type of electrical connection — for auxiliary and control circuitspring-loaded terminals (push-in)
wire length for motor unshielded maximum100 m
type of connectable conductor cross-sections for main contacts — solid1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)
type of connectable conductor cross-sections for main contacts — finely stranded with core end processing1x (0,5 ... 4 mm²), 2x (0,5 ... 1,5 mm²)
connectable conductor cross-section for main contacts — solid or stranded0.5 ... 4 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing0.5 ... 4 mm²
connectable conductor cross-section for auxiliary contacts — solid or stranded0.5 ... 1.5 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing0.5 ... 1 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded without core end processing0.5 ... 1.5 mm²
type of connectable conductor cross-sections — for auxiliary contacts — solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables for auxiliary contacts1x (20 ... 16), 2x (20 ... 16)
AWG number as coded connectable conductor cross section for main contacts20 ... 12
AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 16

UL/CSA ratings

yielded mechanical performance [hp] — for single-phase AC motor — at 230 V rated value0.125 hp
yielded mechanical performance [hp] — for 3-phase AC motor — at 200/208 V rated value0.333 hp
yielded mechanical performance [hp] — for 3-phase AC motor — at 220/230 V rated value0.333 hp
yielded mechanical performance [hp] — for 3-phase AC motor — at 460/480 V rated value0.75 hp
operational current at AC at 480 V according to UL 5082 A

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

3RM1102-3AA14: frequently asked questions

When can 3RM1102-3AA14 be shipped?

3RM1102-3AA14 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RM1102-3AA14 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RM1102-3AA14 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RM1102-3AA14, subject to availability and destination.

More Siemens parts

Siemens 3RM1102-1AA14 – Fail-safe direct starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC, screw terminals
Siemens
3RM1102-1AA14

Fail-safe direct starter, 3RM1, 500 V, 0.09 - 0.75 kW

Siemens 3RM1102-2AA04 – Fail-safe direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 24 V DC
Siemens
3RM1102-2AA04

Fail-safe direct-on-line starter, 3RM1, 500 V

Siemens 3RM1102-2AA14 – Fail-safe direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC
Siemens
3RM1102-2AA14

Fail-safe direct-on-line starter, 3RM1, 500 V

Siemens 3RM1102-3AA04 – Fail-safe direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 24 V DC
Siemens
3RM1102-3AA04

Fail-safe direct-on-line starter, 3RM1, 500 V

Siemens 3RM1107-1AA04 – Fail-safe direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw terminals
Siemens
3RM1107-1AA04

Fail-safe direct starter, 3RM1, 500 V, 0.55 - 3 kW

Siemens 3RM1107-1AA14 – Fail-safe direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 110-230 V AC, screw terminals
Siemens
3RM1107-1AA14

Fail-safe direct starter, 3RM1, 500 V, 0.55 - 3 kW

Siemens 3RM1107-2AA04 – Fail-safe direct-on-line starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC
Siemens
3RM1107-2AA04

Fail-safe direct-on-line starter, 3RM1, 500 V, 0.55 - 3 kW

Siemens 3RM1107-2AA14 – Fail-safe direct-on-line starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 110-230 V AC
Siemens
3RM1107-2AA14

Fail-safe direct-on-line starter, 3RM1, 500 V, 0.55 - 3 kW

Siemens 3RM1102-3AA14Price and lead time confirmed within 1 business day
Request a Quote
