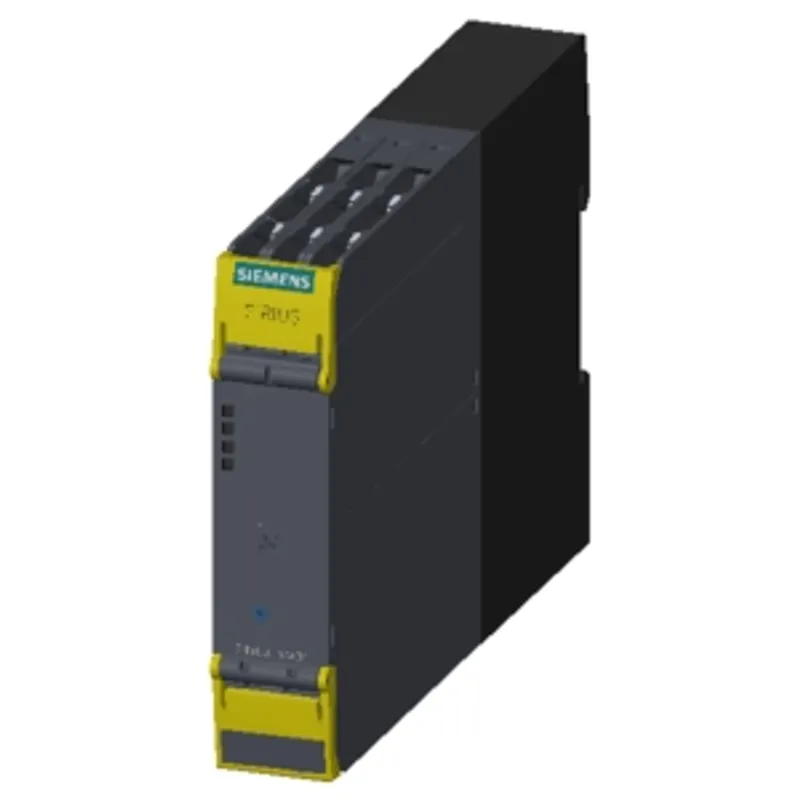

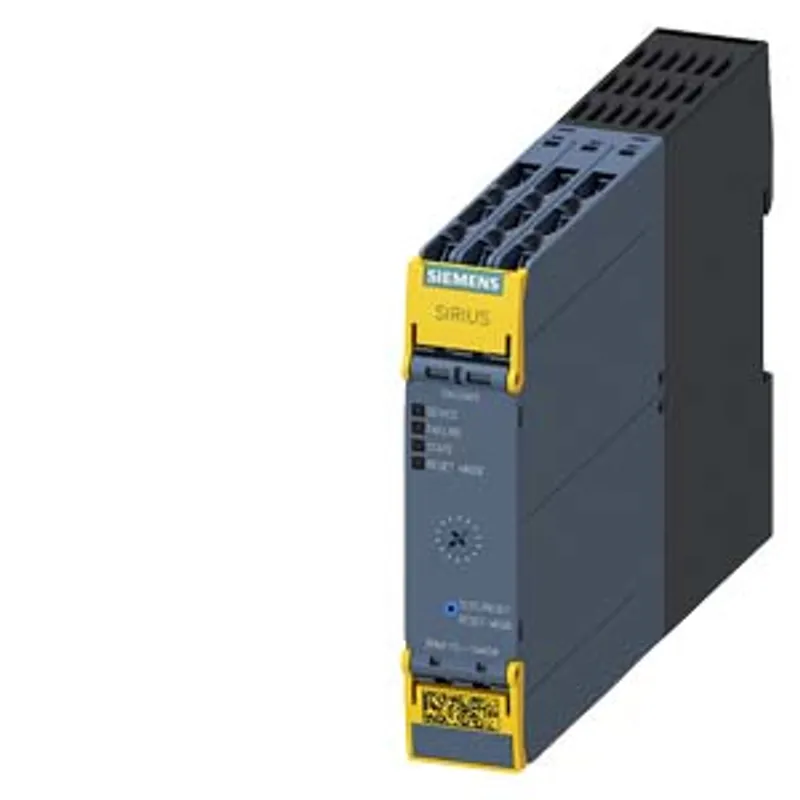

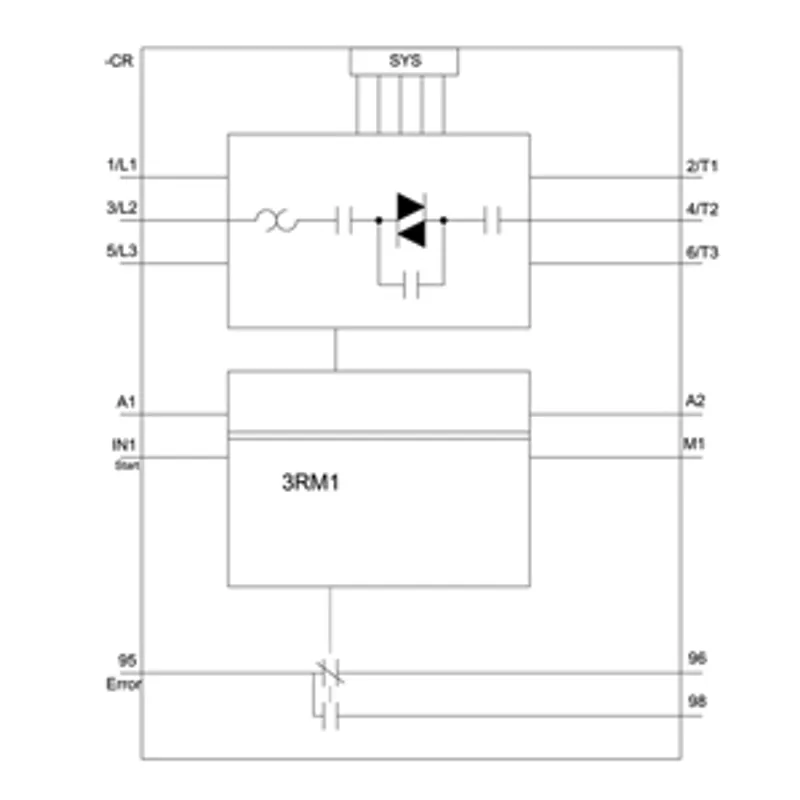

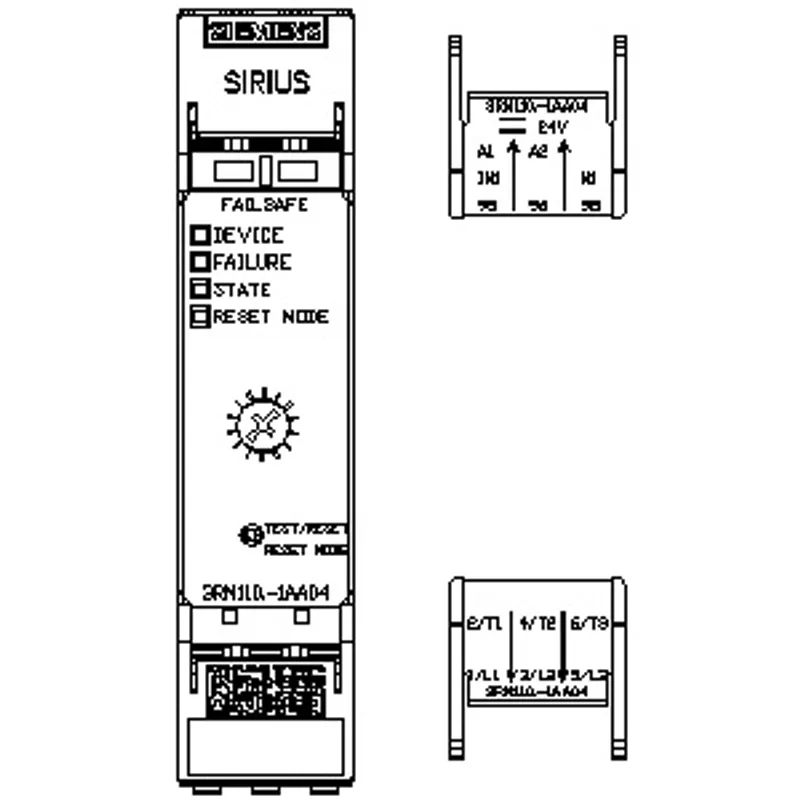

Siemens 3RM1101-1AA04
Fail-safe direct starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw terminals
- MPN
- 3RM1101-1AA04
- Category
- SIRIUS 3RM1 motor starters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RM1101-1AA04?
Fail-safe direct starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 24 V DC, screw terminals
Specifications
General
| product brand name | SIRIUS |
| product category | Motor starter |
| product designation | Fail-safe direct starter |
| design of the product | With electronic overload protection and safety-related disconnection |
| product type designation | 3RM1 |
General technical data
| equipment version according to IEC 60947-4-2 | 3 |
| product function | fail-safe direct starter |
| product function — intrinsic device protection | Yes |
| product function — for power supply reverse polarity protection | Yes |
| suitability for operation device connector 3ZY12 | Yes |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 0.01 W |
| power loss [W] for rated value of the current — without load current share typical | 1.37 W |
| insulation voltage rated value | 500 V |
| overvoltage category | III |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation — between main and auxiliary circuit | 500 V |
| maximum permissible voltage for protective separation — between control and auxiliary circuit | 250 V |
| shock resistance | 6 g / 11 ms |
| vibration resistance | 1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz |
| operating frequency maximum | 1 1/s |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 03/01/2017 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.276 kg |
| product function — direct start | Yes |
| product function — reverse starting | No |
| product function short circuit protection | No |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | Class A |
| conducted interference — due to burst according to IEC 61000-4-4 | 3 kV / 5 kHz |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 4 kV signal lines 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions according to CISPR11 | Class B for the domestic, business and commercial environments |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
Safety related data
| product function suitable for safety function | Yes |
| suitability for use — safety-related switching on | No |
| suitability for use — safety-related switching OFF | Yes |
| safe state | Load circuit open |
| test wear-related service life necessary | Yes |
| function test interval maximum | 1 a |
| diagnostics test interval by internal test function maximum | 600 s |
| stop category according to IEC 60204-1 | 0 |
| proportion of dangerous failures — with low demand rate according to SN 31920 | 0.6 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 40 % |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 16 FIT |
| Safety Integrity Level (SIL) according to IEC 62061 | SIL 3 |
| category according to EN ISO 13849-1 | 4 |
| performance level (PL) according to ISO 13849-1 | PL e |
| category according to ISO 13849-1 | 4 |
| device type according to ISO 13849-1 | 1 |
| overdimensioning according to ISO 13849-2 necessary | No |
| Safety Integrity Level (SIL) — according to IEC 61508 | 3 |
| safety device type according to IEC 61508-2 | Type B |
| PFHD with high demand rate according to IEC 61508 | 2E-8 1/h |
| PFDavg with low demand rate according to IEC 61508 | 1.75E-5 |
| Safe failure fraction (SFF) | 99.4 % |
| hardware fault tolerance according to IEC 61508 | 1 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe |
ATEX
| Safety Integrity Level (SIL) according to IEC 61508 relating to ATEX | SIL 2 |
| PFHD with high demand rate according to IEC 61508 relating to ATEX | 5E-8 1/h |
| PFDavg with low demand rate according to IEC 61508 relating to ATEX | 0.0005 |
| hardware fault tolerance according to IEC 61508 relating to ATEX | 0 |
| T1 value for proof test interval or service life according to IEC 61508 relating to ATEX | 3 a |
| certificate of suitability according to ATEX directive 2014/34/EU | BVS 12 ATEX F 002 X |
| type of protection according to ATEX directive 2014/34/EU | II (2)G [Ex e] [Ex d] [Ex px], II (2)D [Ex t] [Ex p], I (M2) [Ex d] |
Main circuit
| number of poles for main current circuit | 3 |
| design of the switching contact | Hybrid |
| adjustable current response value current of the current-dependent overload release | 0.1 ... 0.5 A |
| minimum load [%] | 20 %; from set rated current |
| type of the motor protection | solid-state |
| operating voltage rated value | 48 ... 500 V |
| relative symmetrical tolerance of the operating voltage | 10 % |
| operating frequency 1 rated value | 50 Hz |
| operating frequency 2 rated value | 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| operational current — at AC at 400 V rated value | 0.5 A |
| operational current — at AC-3 at 400 V rated value | 0.5 A |
| operational current — at AC-53a at 400 V at ambient temperature 40 °C rated value | 0.5 A |
| ampacity when starting maximum | 4 A |
| operating power for 3-phase motors at 400 V at 50 Hz | 0 ... 0.12 kW |
Inputs/ Outputs
| input voltage at digital input at DC rated value | 24 V |
| input current at digital input — for signal <1> at DC | 8 mA |
| input current at digital input — with signal <0> at DC | 1 mA |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 at 230 V maximum | 3 A |
| operational current of auxiliary contacts at DC-13 at 24 V maximum | 1 A |
Control circuit/ Control
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 19.2 ... 30 V |
| relative negative tolerance of the control supply voltage at DC | 20 % |
| relative positive tolerance of the control supply voltage at DC | 25 % |
| control supply voltage 1 at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.8 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.25 |
| control current at DC — in standby mode of operation | 13 mA |
| control current at DC — during operation | 57 mA |
| inrush current peak — at 24 V | 0.28 A; values at 25 °C |
| inrush current peak — at DC at 24 V | 300 mA |
| inrush current peak — at DC at 24 V at switching on of motor | 130 mA |
| duration of inrush current peak — at 24 V | 85 ms |
| duration of inrush current peak — at DC at 24 V | 80 ms |
| duration of inrush current peak — at DC at 24 V at switching on of motor | 20 ms |
| power loss [W] in auxiliary and control circuit — in switching state OFF — with bypass circuit | 0.35 W |
| power loss [W] in auxiliary and control circuit — in switching state ON — with bypass circuit | 1.37 W |
Response times
| ON-delay time | 65 ... 76 ms |
| OFF-delay time | 30 ... 43 ms |
Power Electronics
| operational current — at 40 °C rated value | 0.5 A |
| operational current — at 50 °C rated value | 0.5 A |
| operational current — at 55 °C rated value | 0.5 A |
| operational current — at 60 °C rated value | 0.5 A |

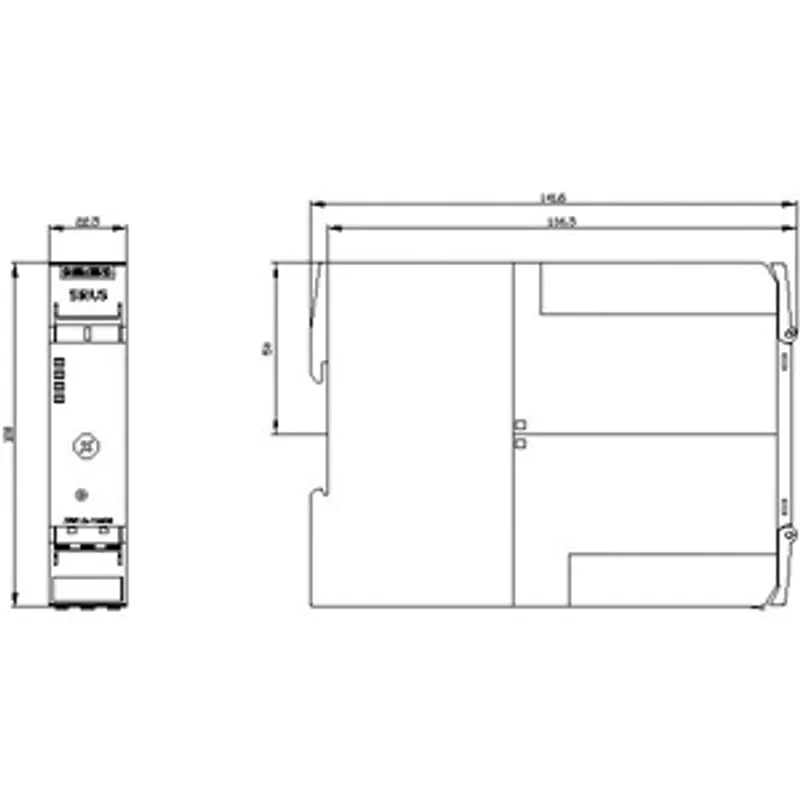

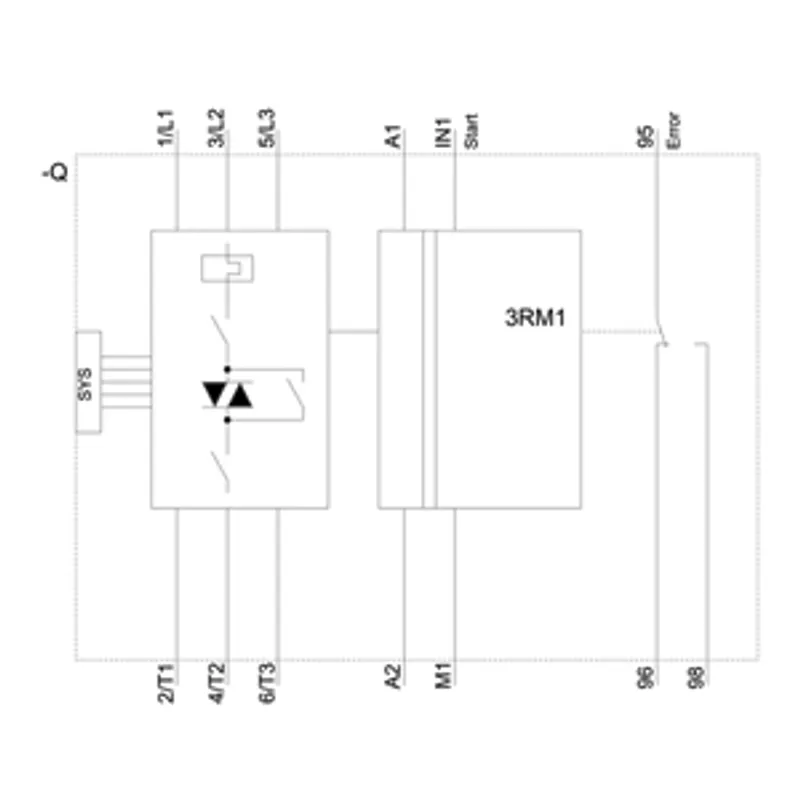

Installation/ mounting/ dimensions
| mounting position | vertical, horizontal, standing (observe derating) |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 22.5 mm |
| depth | 141.6 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 50 mm |
| required spacing — with side-by-side mounting — downwards | 50 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 50 mm |
| required spacing — for grounded parts — at the side | 3.5 mm |
| required spacing — for grounded parts — downwards | 50 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 4 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| environmental category during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| relative humidity during operation | 10 ... 95 % |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
Communication/ Protocol
| protocol is supported — PROFINET IO protocol | No |
| protocol is supported — PROFIsafe protocol | No |
| product function bus communication | No |
| protocol is supported AS-Interface protocol | No |
Connections/ Terminals
| type of electrical connection | screw-type terminals for main circuit, screw-type terminals for control circuit |
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| wire length for motor unshielded maximum | 100 m |
| type of connectable conductor cross-sections for main contacts — solid | 1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²) |
| type of connectable conductor cross-sections for main contacts — finely stranded with core end processing | 1x (0,5 ... 4 mm²), 2x (0,5 ... 1,5 mm²) |
| connectable conductor cross-section for main contacts — solid or stranded | 0.5 ... 4 mm² |
| connectable conductor cross-section for main contacts — finely stranded with core end processing | 0.5 ... 4 mm² |
| connectable conductor cross-section for auxiliary contacts — solid or stranded | 0.5 ... 2.5 mm² |
| connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 1x (0,5 ... 2,5 mm²), 2x (1,0 ... 1,5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 1x (20 ... 14), 2x (18 ... 16) |
| AWG number as coded connectable conductor cross section for main contacts | 20 ... 12 |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
UL/CSA ratings
| operational current at AC at 480 V according to UL 508 | 0.5 A |
