Siemens 3RM1001-3AA14

Direct-on-line starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 110-230 V AC

MPN: 3RM1001-3AA14
Category: SIRIUS 3RM1 motor starters

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

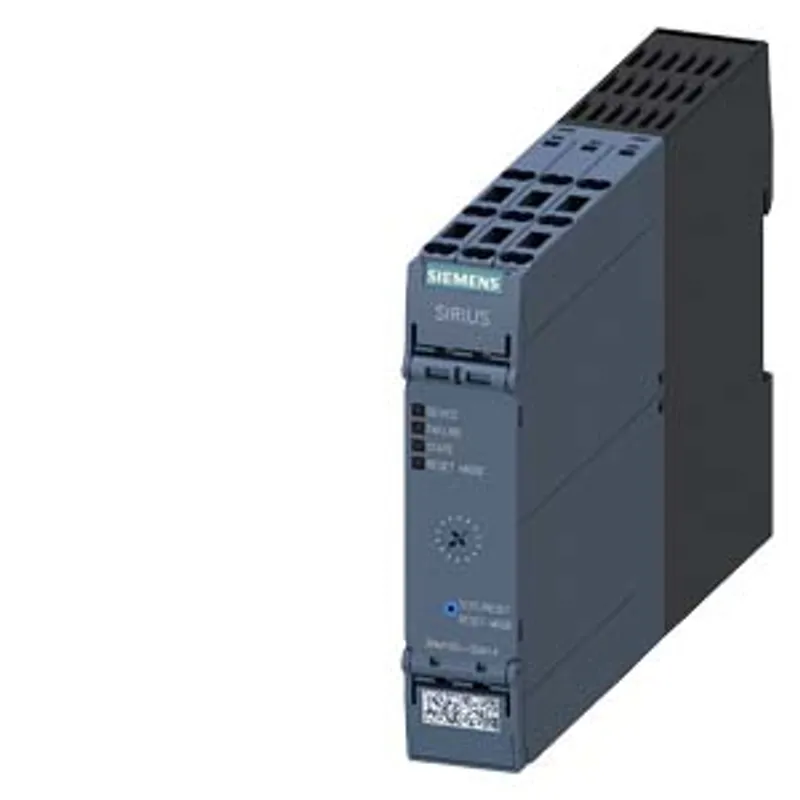

What is the Siemens 3RM1001-3AA14?

direct-on-line starter, 3RM1, 500 V, 0 - 0.12 kW, 0.1 - 0.5 A, 110-230 V AC, screw/spring-loaded terminals (push-in)

Specifications

General

product brand name	SIRIUS
product category	Motor starter
product designation	Direct-on-line starter
design of the product	with electronic overload protection
product type designation	3RM1

General technical data

equipment version according to IEC 60947-4-2	3
product function	Direct-on-line starter
product function — intrinsic device protection	Yes
product function — for power supply reverse polarity protection	No
suitability for operation device connector 3ZY12	No
power loss [W] for rated value of the current — at AC in hot operating state per pole	0.01 W
power loss [W] for rated value of the current — without load current share typical	5.06 W
insulation voltage rated value	500 V
overvoltage category	III
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation — between main and auxiliary circuit	500 V
maximum permissible voltage for protective separation — between control and auxiliary circuit	250 V
shock resistance	6 g / 11 ms
vibration resistance	1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz
operating frequency maximum	1 1/s
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	03/01/2017
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight	0.285 kg
product function — direct start	Yes
product function — reverse starting	No
product function short circuit protection	No

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	Class A
conducted interference — due to burst according to IEC 61000-4-4	3 kV / 5 kHz
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
conducted interference — due to high-frequency radiation according to IEC 61000-4-6	10 V
field-based interference according to IEC 61000-4-3	10 V/m
electrostatic discharge according to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11	Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC
field-bound HF interference emission according to CISPR11	Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC

Safety related data

product function suitable for safety function	No
suitability for use — safety-related switching on	No
suitability for use — safety-related switching OFF	No
test wear-related service life necessary	No
overdimensioning according to ISO 13849-2 necessary	No
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe

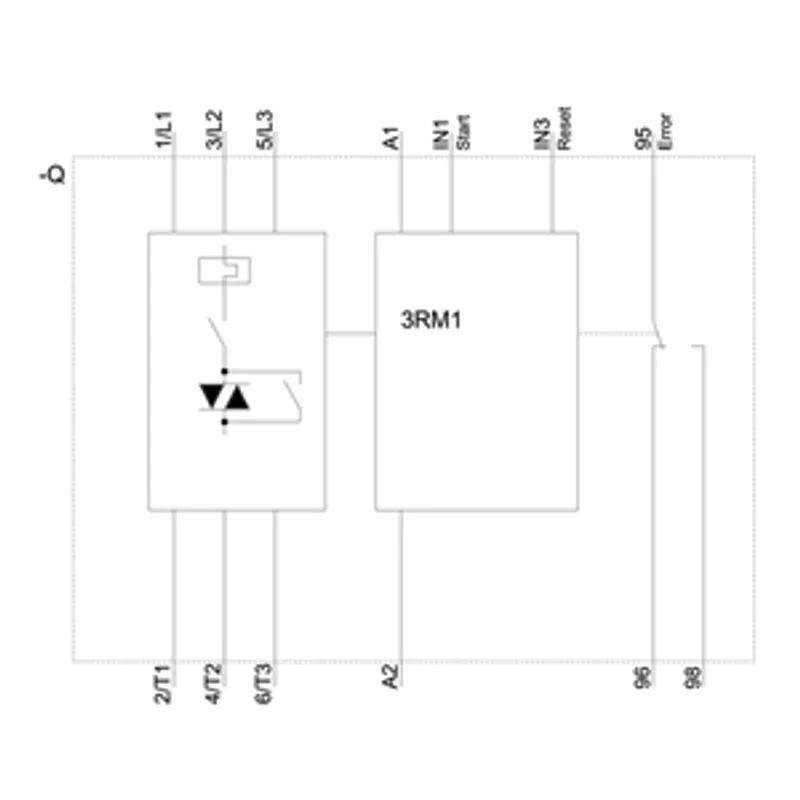

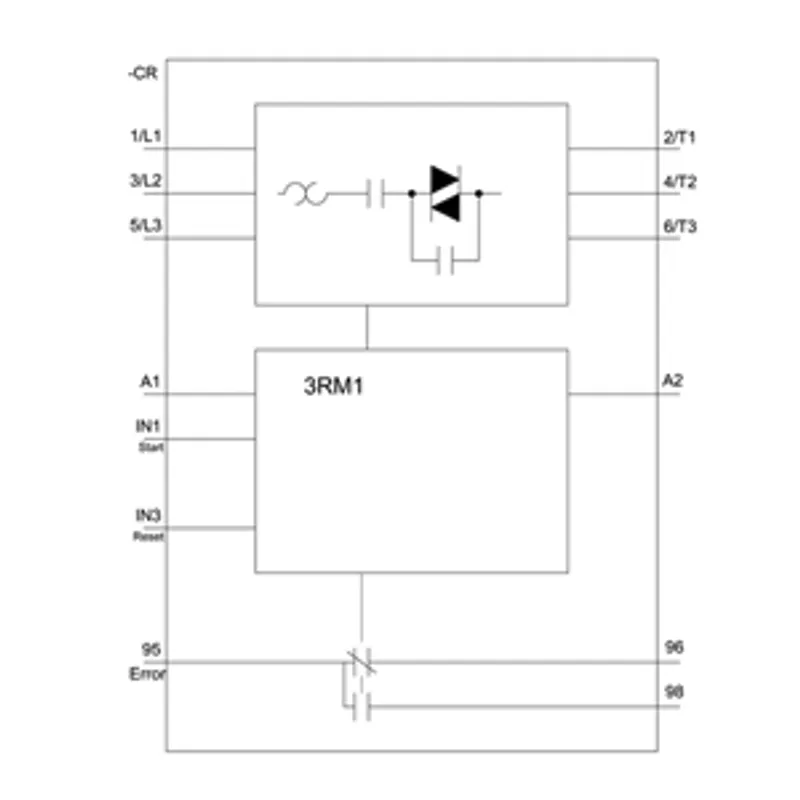

Main circuit

number of poles for main current circuit	3
design of the switching contact	Hybrid
design of the switching contact as NO contact for signaling function	OUT, electronic, 24 V DC, 15 mA
adjustable current response value current of the current-dependent overload release	0.1 ... 0.5 A
minimum load [%]	20 %; from set rated current
type of the motor protection	solid-state
operating voltage rated value	48 ... 500 V
relative symmetrical tolerance of the operating voltage	10 %
operating frequency 1 rated value	50 Hz
operating frequency 2 rated value	60 Hz
relative symmetrical tolerance of the operating frequency	10 %
operational current — at AC at 400 V rated value	0.5 A
operational current — at AC-3 at 400 V rated value	0.5 A
operational current — at AC-53a at 400 V at ambient temperature 40 °C rated value	0.5 A
ampacity when starting maximum	4 A
operating power for 3-phase motors at 400 V at 50 Hz	0 ... 0.12 kW

Inputs/ Outputs

input voltage at digital input at DC rated value	110 V
input voltage at digital input at AC rated value	110 V
input current at digital input — for signal <1> at DC	1.5 mA
input current at digital input — with signal <0> at DC	0.25 mA
input current at digital input with signal <0> at AC — at 110 V	0.2 mA
input current at digital input with signal <0> at AC — at 230 V	0.4 mA
input current at digital input for signal <1> at AC — at 110 V	1.1 mA
input current at digital input for signal <1> at AC — at 230 V	2.3 mA
number of CO contacts for auxiliary contacts	1
operational current of auxiliary contacts at AC-15 at 230 V maximum	3 A
operational current of auxiliary contacts at DC-13 at 24 V maximum	1 A

Control circuit/ Control

type of voltage of the control supply voltage	AC/DC
control supply voltage at AC — at 50 Hz rated value	110 ... 230 V
control supply voltage at AC — at 60 Hz rated value	110 ... 230 V
relative negative tolerance of the control supply voltage at AC at 60 Hz	15 %
relative positive tolerance of the control supply voltage at AC at 60 Hz	10 %
control supply voltage 1 at AC — at 50 Hz	110 ... 230 V
control supply voltage 1 at AC — at 60 Hz	110 ... 230 V
control supply voltage frequency — 1 rated value	50 Hz
control supply voltage frequency — 2 rated value	60 Hz
relative negative tolerance of the control supply voltage at DC	15 %
relative positive tolerance of the control supply voltage at DC	10 %
control supply voltage 1 at DC rated value	110 V
operating range factor control supply voltage rated value at DC — initial value	0.85
operating range factor control supply voltage rated value at DC — full-scale value	1.1
operating range factor control supply voltage rated value at AC at 50 Hz — initial value	0.85
operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value	1.1
operating range factor control supply voltage rated value at AC at 60 Hz — initial value	0.85
operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value	1.1
control current at AC — at 110 V in standby mode of operation	16 mA
control current at AC — at 230 V in standby mode of operation	9 mA
control current at AC — at 110 V when switching on	55 mA
control current at AC — at 230 V when switching on	33 mA
control current at AC — at 110 V during operation	36 mA
control current at AC — at 230 V during operation	22 mA
control current at DC — in standby mode of operation	6 mA
control current at DC — during operation	30 mA
inrush current peak — at AC at 110 V	1 200 mA
inrush current peak — at AC at 230 V	2 900 mA
inrush current peak — at AC at 110 V at switching on of motor	1 200 mA
inrush current peak — at AC at 230 V at switching on of motor	2 900 mA
duration of inrush current peak — at AC at 110 V	1 ms
duration of inrush current peak — at AC at 230 V	1 ms
duration of inrush current peak — at AC at 110 V at switching on of motor	1 ms
duration of inrush current peak — at AC at 230 V at switching on of motor	1 ms
power loss [W] in auxiliary and control circuit — in switching state OFF — with bypass circuit	2.1 W
power loss [W] in auxiliary and control circuit — in switching state ON — with bypass circuit	5.06 W

Response times

ON-delay time	60 ... 90 ms
OFF-delay time	60 ... 90 ms

Power Electronics

operational current — at 40 °C rated value	0.5 A
operational current — at 50 °C rated value	0.5 A
operational current — at 55 °C rated value	0.5 A
operational current — at 60 °C rated value	0.5 A

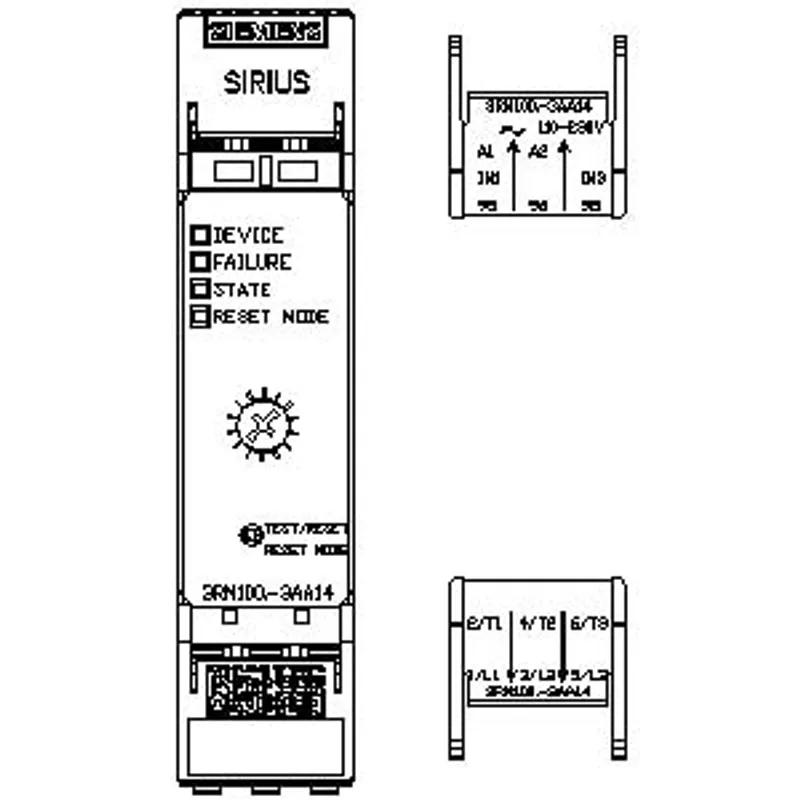

Installation/ mounting/ dimensions

mounting position	vertical, horizontal, standing (observe derating)
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	100 mm
width	22.5 mm
depth	141.6 mm
required spacing — with side-by-side mounting — forwards	0 mm
required spacing — with side-by-side mounting — backwards	0 mm
required spacing — with side-by-side mounting — upwards	50 mm
required spacing — with side-by-side mounting — downwards	50 mm
required spacing — with side-by-side mounting — at the side	0 mm
required spacing — for grounded parts — forwards	0 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	50 mm
required spacing — for grounded parts — at the side	3.5 mm
required spacing — for grounded parts — downwards	50 mm

Ambient conditions

installation altitude at height above sea level maximum	4 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +70 °C
ambient temperature — during transport	-40 ... +70 °C
environmental category during operation according to IEC 60721	3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation	10 ... 95 %
air pressure according to SN 31205	900 ... 1 060 hPa

Communication/ Protocol

protocol is supported — PROFINET IO protocol	No
protocol is supported — PROFIsafe protocol	No
product function bus communication	No
protocol is supported AS-Interface protocol	No

Connections/ Terminals

type of electrical connection	screw-type terminals for main circuit, spring-loaded terminals (push-in) for control circuit
type of electrical connection — for main current circuit	screw-type terminals
type of electrical connection — for auxiliary and control circuit	spring-loaded terminals (push-in)
wire length for motor unshielded maximum	100 m
type of connectable conductor cross-sections for main contacts — solid	1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)
type of connectable conductor cross-sections for main contacts — finely stranded with core end processing	1x (0,5 ... 4 mm²), 2x (0,5 ... 1,5 mm²)
connectable conductor cross-section for main contacts — solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	0.5 ... 4 mm²
connectable conductor cross-section for auxiliary contacts — solid or stranded	0.5 ... 1.5 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing	0.5 ... 1 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded without core end processing	0.5 ... 1.5 mm²
type of connectable conductor cross-sections — for auxiliary contacts — solid	1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded without core end processing	1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables for auxiliary contacts	1x (20 ... 16), 2x (20 ... 16)
AWG number as coded connectable conductor cross section for main contacts	20 ... 12
AWG number as coded connectable conductor cross section for auxiliary contacts	20 ... 16

UL/CSA ratings

operational current at AC at 480 V according to UL 508

0.5 A

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RM1001-3AA14PDF
