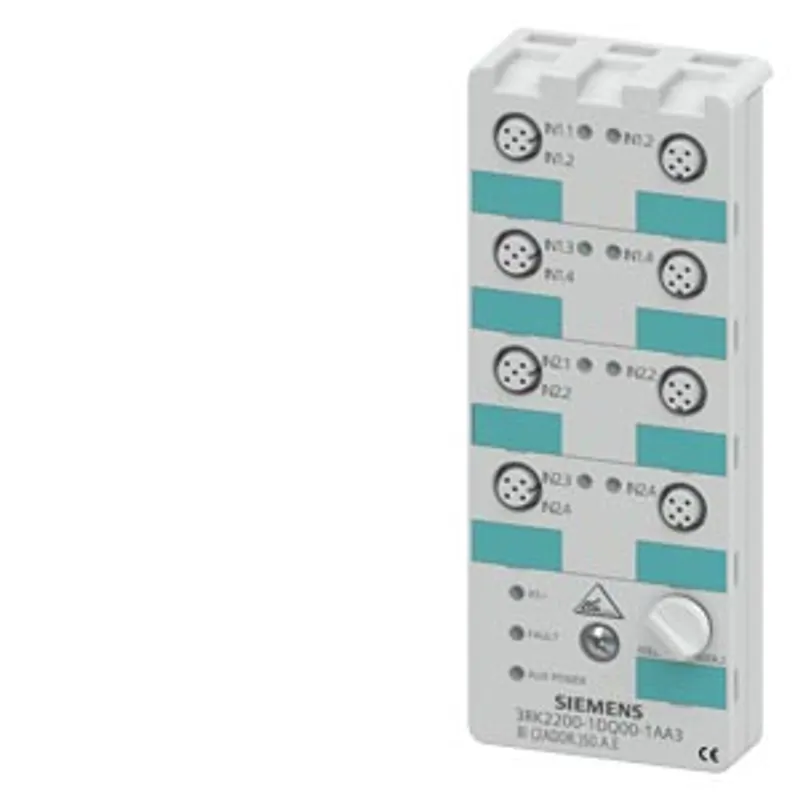

Siemens 3RK2200-1DQ00-1AA3 – AS-i Compact Module K60 digital A/B device, 8 DI, IP67
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Digital I/O modules, IP67 - K60 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.19 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3RK2200-1DQ00-1AA3 be shipped?
3RK2200-1DQ00-1AA3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RK2200-1DQ00-1AA3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RK2200-1DQ00-1AA3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RK2200-1DQ00-1AA3, subject to availability and destination.
AS-i Compact Module K60 digital A/B device, 8 DI, IP67, 8 x input, maximum 2000 mA sensor supply 24 V DC 8 x M12 socket Y-II assignment mounting plate 3RK1901-0CA00 must be ordered separately
Specifications
General technical data
| design of the product | digital I/O modules for operation in the field, IP67 - K60 |
| design of the device type | A/B slave |
| type of electrical connection of the inputs and outputs | M12 screw-type terminals |
Sensor supply
| type of voltage supply for sensor supply | via AUX POWER |
| input voltage | 20 ... 30 V |
| property of the sensor supply short-circuit and overload resistant | Yes |
| ampacity of the sensor supply for all inputs — at ambient temperature 40 °C | 2 mA |
Inputs
| number of digital inputs | 8 |
| type of connection technology | 2- and 3-wire technology |
| type of voltage of the input voltages | DC |
| input current at digital input — for signal <1> minimum | 6 mA |
| input current at digital input — with signal <0> maximum | 1.5 mA |
| design of the pin assignment of the inputs | Y-II assignement |
Outputs
| number of digital outputs | 0 |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| protection class IP | IP67 |

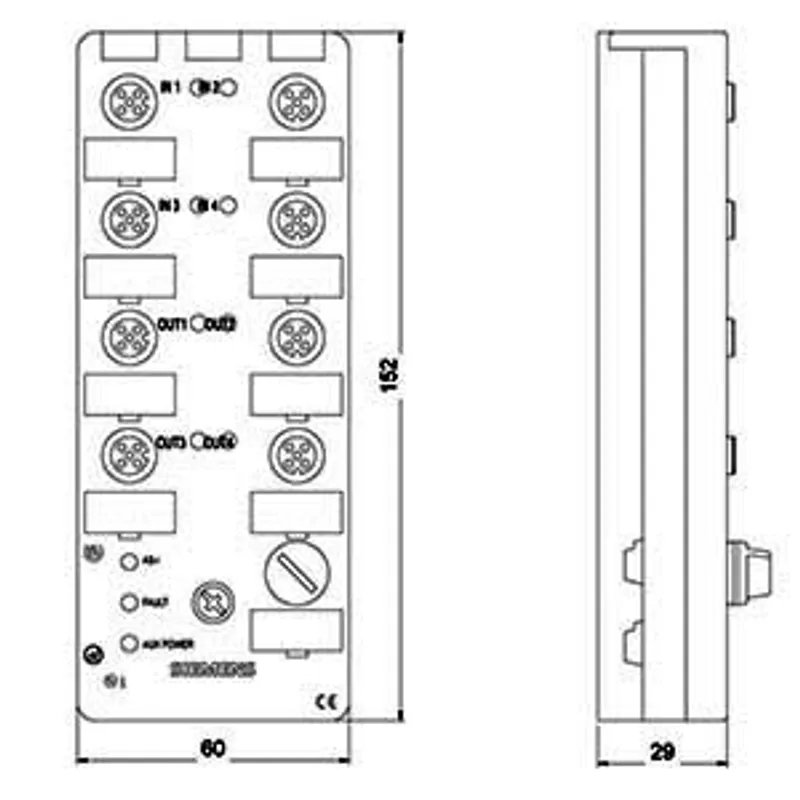

Mechanical data
| width | 60 mm |
| height | 152 mm |
| depth | 29 mm |
| fastening method | standard rail mounting/wall mounting using mounting plate for K60 compact module |
| shock resistance | 15 g / 11 ms |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 3RK2200-1DQ00-1AA3 |
More Siemens parts

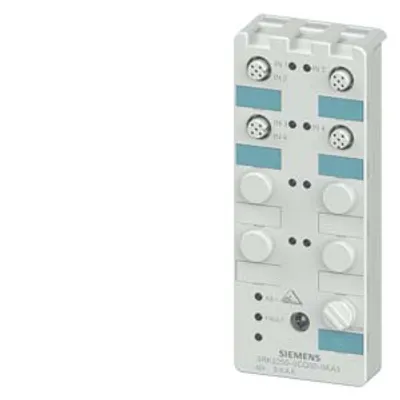

Available on requestSiemens 3RK2200-0CQ00-0AA3 – AS-i Compact Module K60 digital A/B device, 4 DI, IP67
Available on requestSiemens 3RK2200-0CQ20-0AA3 – AS-i compact module K45 digital A/B device, 4 DI, IP67
Available on requestSiemens 3RK2200-0CQ22-0AA3 – AS-i compact module K45 digital A/B slave, 4 DI
Available on requestSiemens 3RK2200-0DQ20-0AA3 – AS-i compact module K45 digital A/B device, 8 DI, IP67

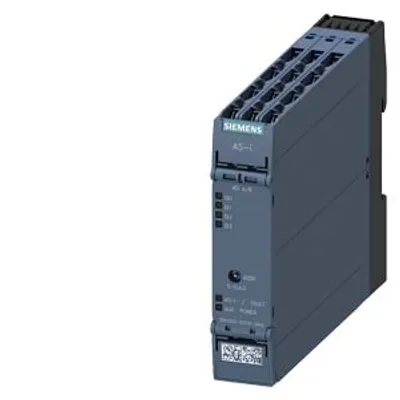

Available on requestSiemens 3RK2200-2CE00-2AA2
