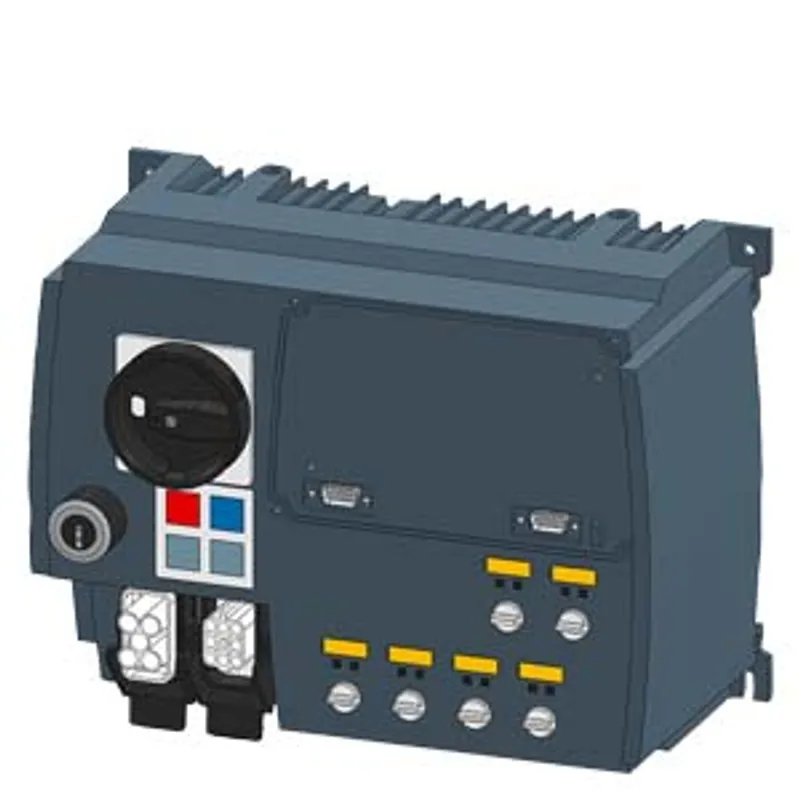

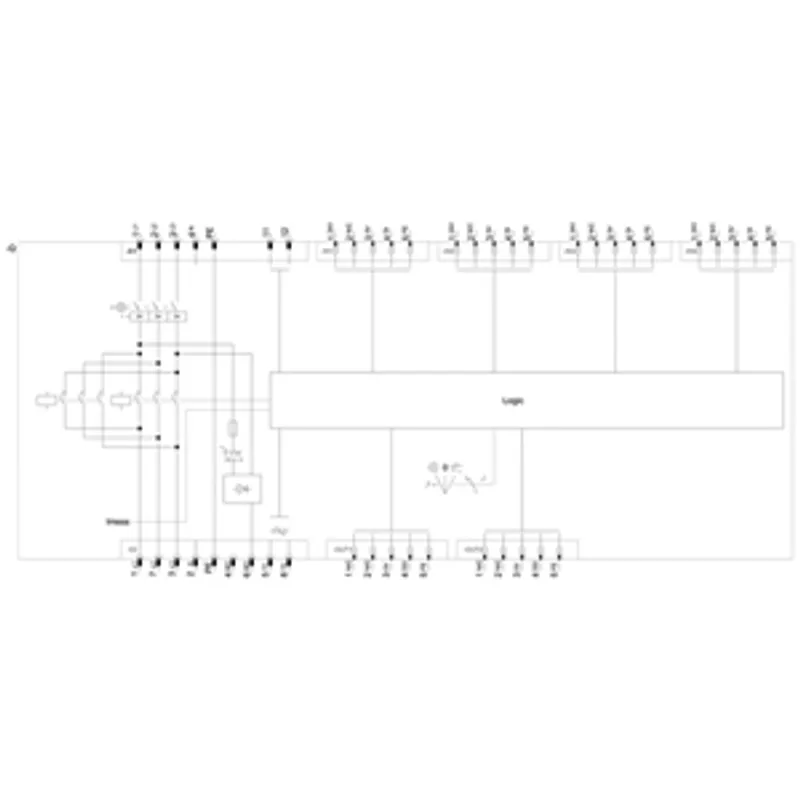

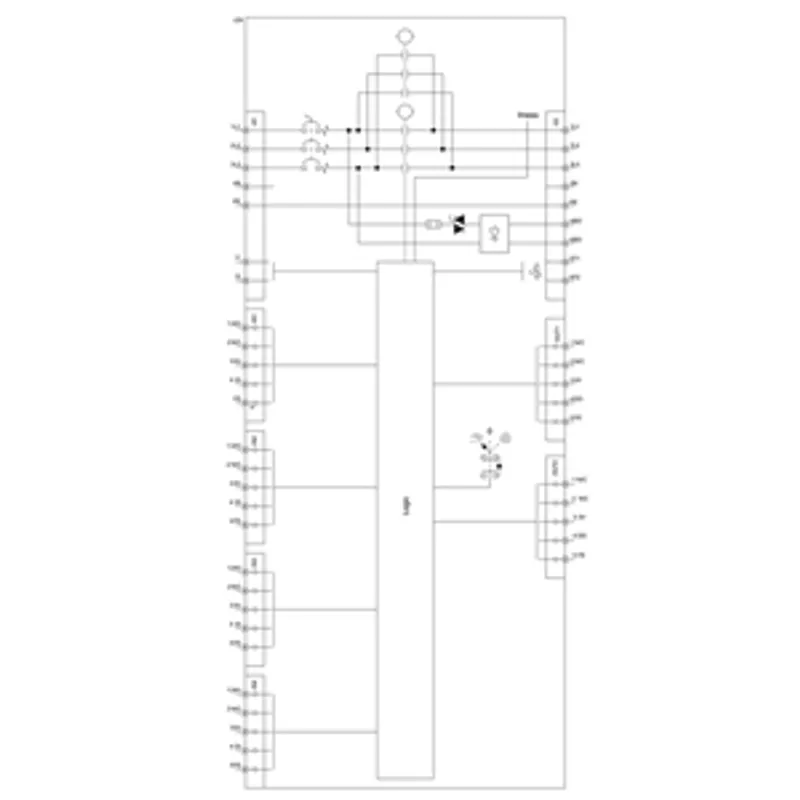

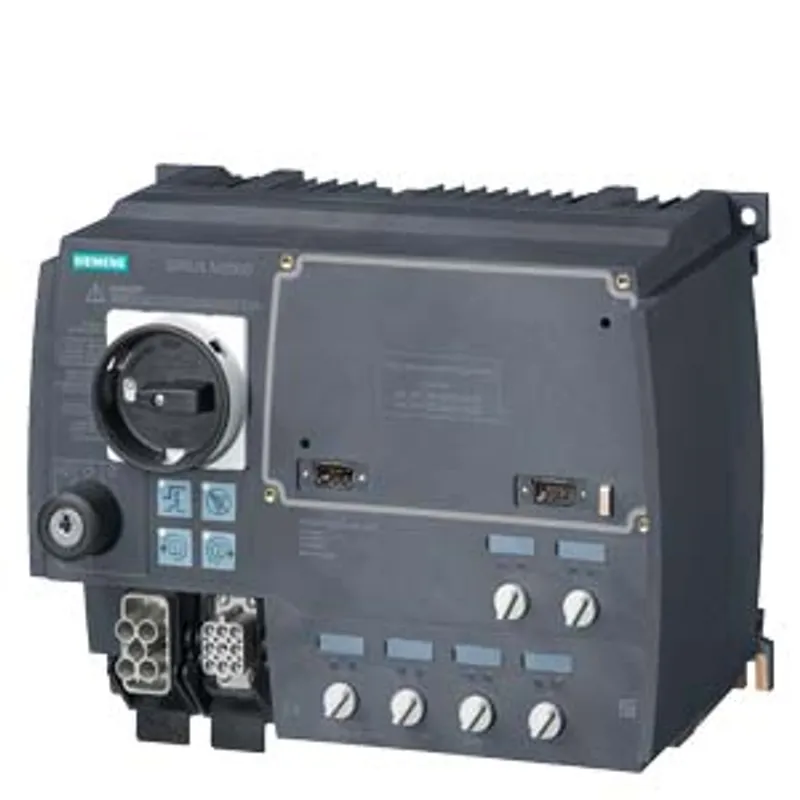

SIRIUS motor starter M200D technology module reversing starter mechanical switching AC-3, 0.75 kW/400 V 0.15 A...2.00 A electronic overload protection thermistor: thermoclick / PTC with brake contact 180 V DC 4 DI / 2 DO Han Q4/2 - Han Q8/0 with manual on-site operation and keyswitch via communications module 3RK1305* can be used on PROFIBUS or PROFINET

Specifications

Safety related data

proportion of dangerous failures – with low demand rate according to SN 31920	50 %
proportion of dangerous failures – with high demand rate according to SN 31920	75 %
B10 value with high demand rate according to SN 31920	1 000 000
failure rate [FIT] with low demand rate according to SN 31920	100 FIT
T1 value for proof test interval or service life according to IEC 61508	20 a
touch protection against electrical shock	finger-safe

Main circuit

number of poles for main current circuit	3
design of the switching contact	electromechanical
adjustable current response value current of the current-dependent overload release	0.15 ... 2 A
type of the motor protection	full motor protection
operating voltage rated value	200 ... 440 V
operational current – at AC at 400 V rated value	2 A
operational current – at AC-3 at 400 V rated value	2 A
at AC-3 – — at 400 V rated value	0.75 kW
at AC-3 – — at 500 V rated value	750 W
at AC-3e – — at 400 V rated value	1 kW
at AC-3e – — at 500 V rated value	0.75 kW
product function – digital inputs parameterizable	Yes
product function – digital outputs parameterizable	Yes
number of digital inputs	4
number of sockets – for digital output signals	2
number of sockets – for digital input signals	4
number of digital outputs	2

Supply voltage

type of voltage of the supply voltage	DC
supply voltage 1 at DC	24 V

Control circuit/ Control

type of voltage of the control supply voltage	DC
control supply voltage 1 at DC rated value	20.4 ... 28.8 V
control supply voltage 1 at DC	20.4 ... 28.8 V
control current at DC – in standby mode of operation	100 mA
control current at DC – during operation	600 mA
power loss [W] in auxiliary and control circuit – in switching state OFF with bypass circuit	1.9584 W
power loss [W] in auxiliary and control circuit – in switching state ON with bypass circuit	5.04 W

Response times

ON-delay time	85 ms
OFF-delay time	65 ms
mounting position	vertical, horizontal, flat
mounting position recommended	horizontal
fastening method	screw fixing

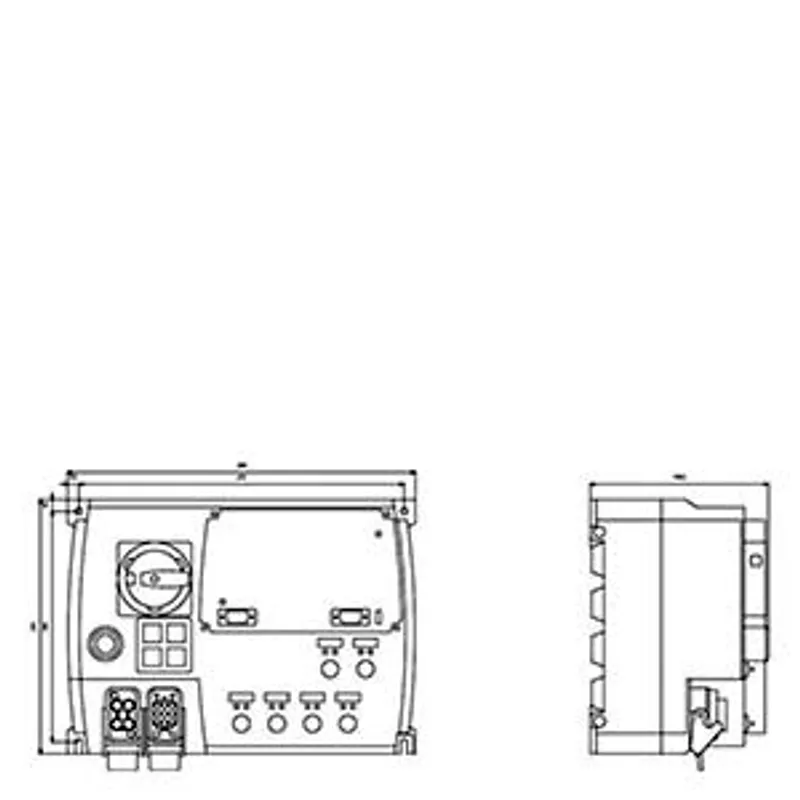

height	215 mm
width	294 mm
depth	148 mm

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature – during operation	-25 ... +55 °C
ambient temperature – during storage	-40 ... +70 °C
ambient temperature – during transport	-40 ... +70 °C
relative humidity during operation	10 ... 95 %
protocol is supported – PROFIBUS DP protocol	No
protocol is supported – PROFINET protocol	No
design of the interface – AS-Interface protocol	No
design of the interface – PROFINET protocol	No
design of the interface – PROFIBUS DP protocol	No
product function bus communication	Yes
protocol is supported AS-Interface protocol	No
product function control circuit interface with IO link	No
type of electrical connection – for main current circuit	plug according to ISO 23570, HAN Q4/2
type of electrical connection – for auxiliary and control circuit	connector
type of electrical connection – 1 for digital input signals	M12 socket
type of electrical connection – 1 for digital output signals	M12 socket
type of electrical connection – 2 for digital input signals	M12 socket
type of electrical connection – 3 for digital input signals	M12 socket
type of electrical connection – 4 for digital input signals	M12 socket
full-load current (FLA) for 3-phase AC motor at 480 V rated value	1.6 A
for 3-phase AC motor – — at 460/480 V rated value	0.7 hp
for 3-phase AC motor – — at 575/600 V rated value	1 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value	600 V
