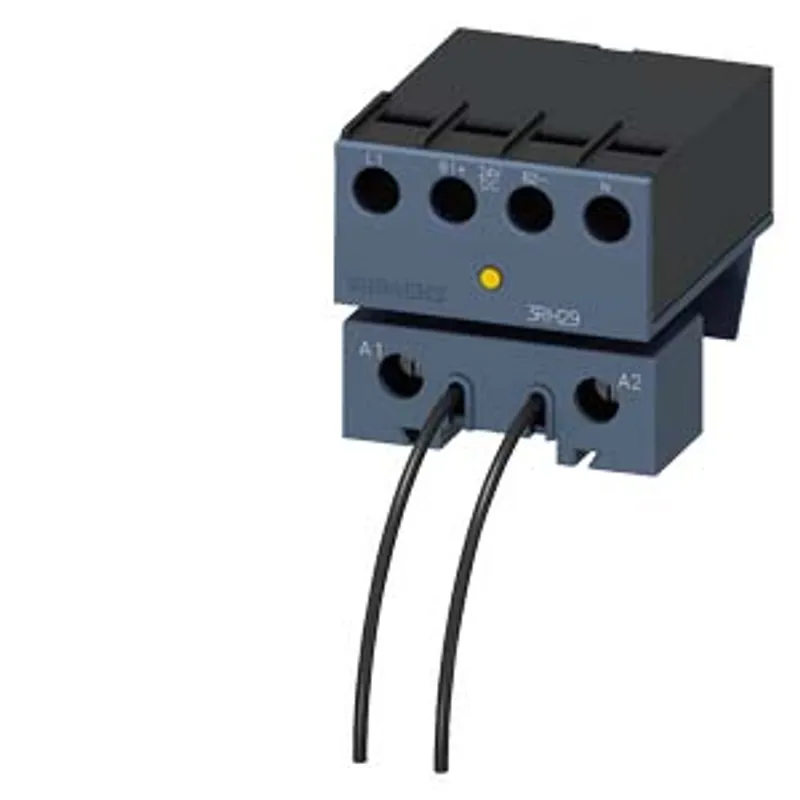

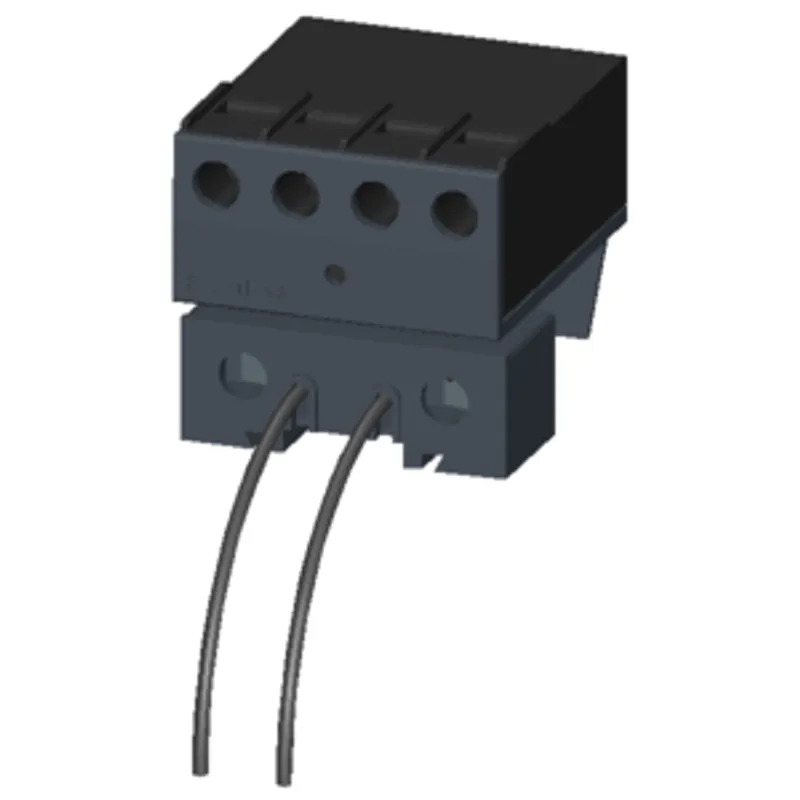

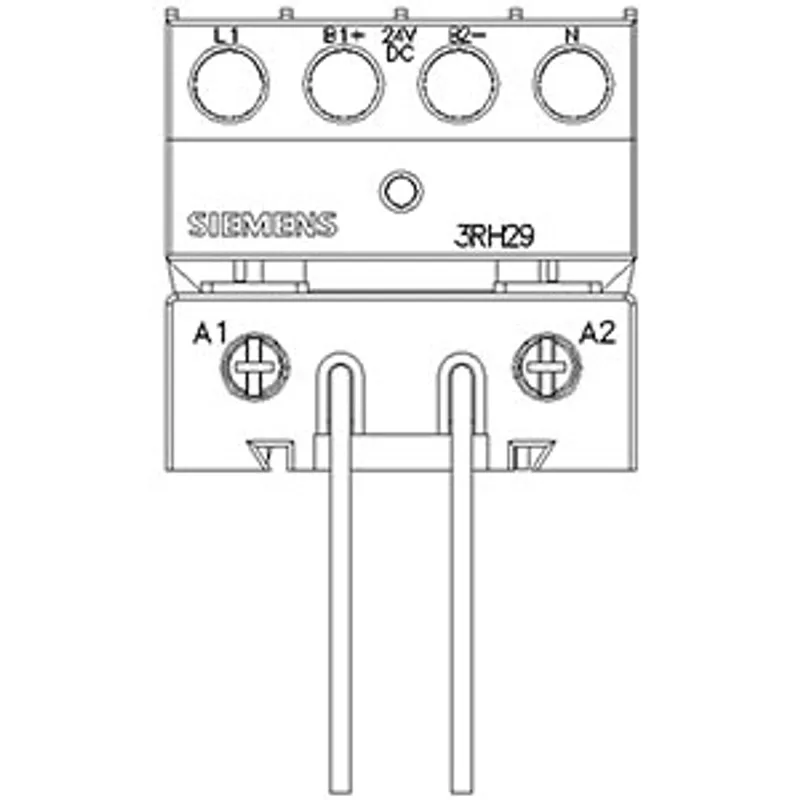

Siemens 3RH2924-1GP11

Coupling link 24 V DC, screw terminal

MPN: 3RH2924-1GP11
Category: Coupling links for control by PLC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RH2924-1GP11?

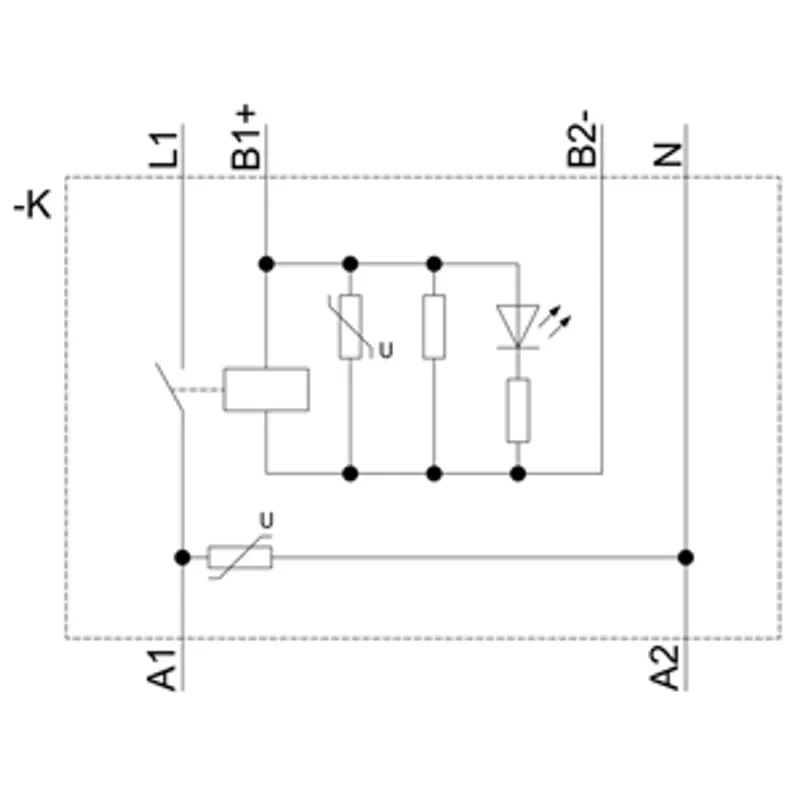

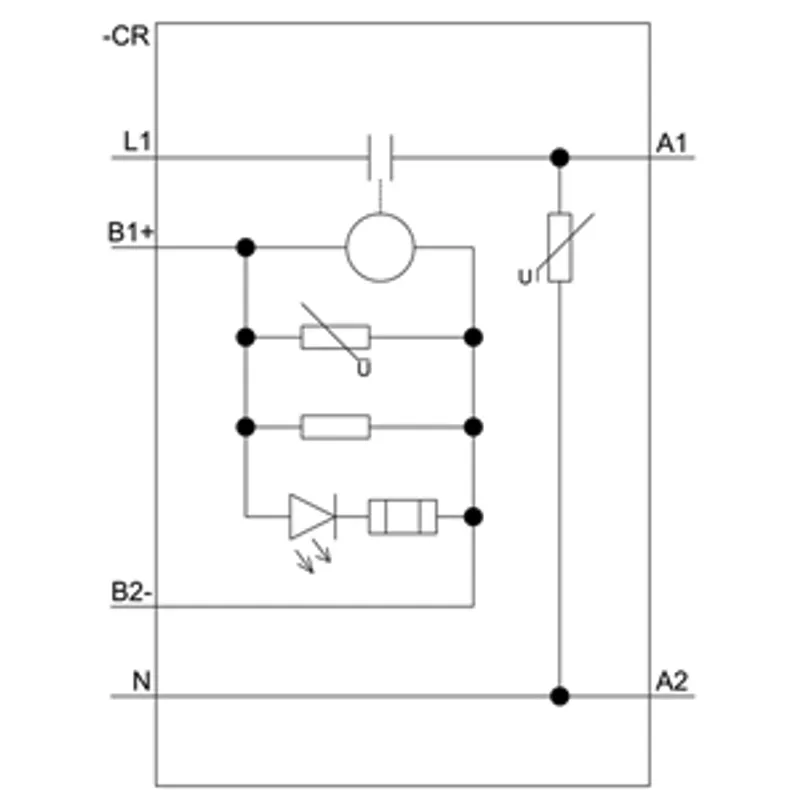

coupling link 24 V DC, screw terminal, for mounting on coil connections of the contactors 3RT2.2 connection B1/B2 for 1 NO

Specifications

General

product brand name	SIRIUS
product category	Coupling links
product designation	Coupling link
product type designation	3RH29

General technical data

size of contactor	S0
product component protective wiring	Yes
insulation voltage rated value	300 V
degree of pollution	3
protection class IP on the front	IP20
Substance Prohibitance (day/month/year)	10/01/2009
SVHC substance name	Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	0.062 kg
type of voltage of the control supply voltage	DC
control supply voltage 1 at DC rated value	24 V
operating range factor control supply voltage rated value of magnet coil at DC — initial value	0.7
operating range factor control supply voltage rated value of magnet coil at DC — full-scale value	1.25
number of NO contacts for auxiliary contacts instantaneous contact	1
operational current of auxiliary contacts at AC-12 — at 24 V	6 A
operational current of auxiliary contacts at AC-12 — at 230 V	6 A
operational current of auxiliary contacts at AC-15 — at 24 V	3 A
operational current of auxiliary contacts at AC-15 — at 230 V	3 A
operational current of auxiliary contacts at DC-13 — at 24 V	1 A
operational current of auxiliary contacts at DC-13 — at 110 V	0.2 A
operational current of auxiliary contacts at DC-13 — at 220 V	0.1 A

Ambient conditions

ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C

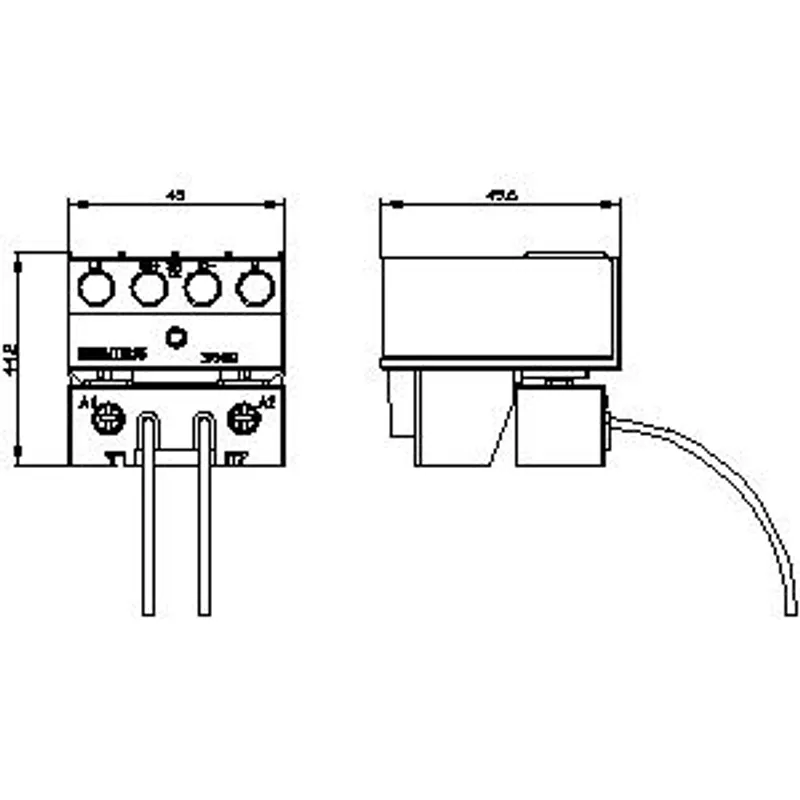

Installation/ mounting/ dimensions

mounting position	any
fastening method	direct mounting
height	35 mm
width	45 mm
depth	50 mm

Connections/ Terminals

connectable conductor cross-section for auxiliary contacts — solid or stranded	0.5 ... 2.5 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing	0.5 ... 1.5 mm²
type of connectable conductor cross-sections — for auxiliary contacts — solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	2x (0.5 ... 1.5 mm²)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	0.34 kg
global warming potential [CO2 eq] / during operation	0.562 kg
global warming potential [CO2 eq] / after end of life	0.0172 kg
global warming potential [CO2 eq] / total	0.92 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RH2924-1GP11PDF
