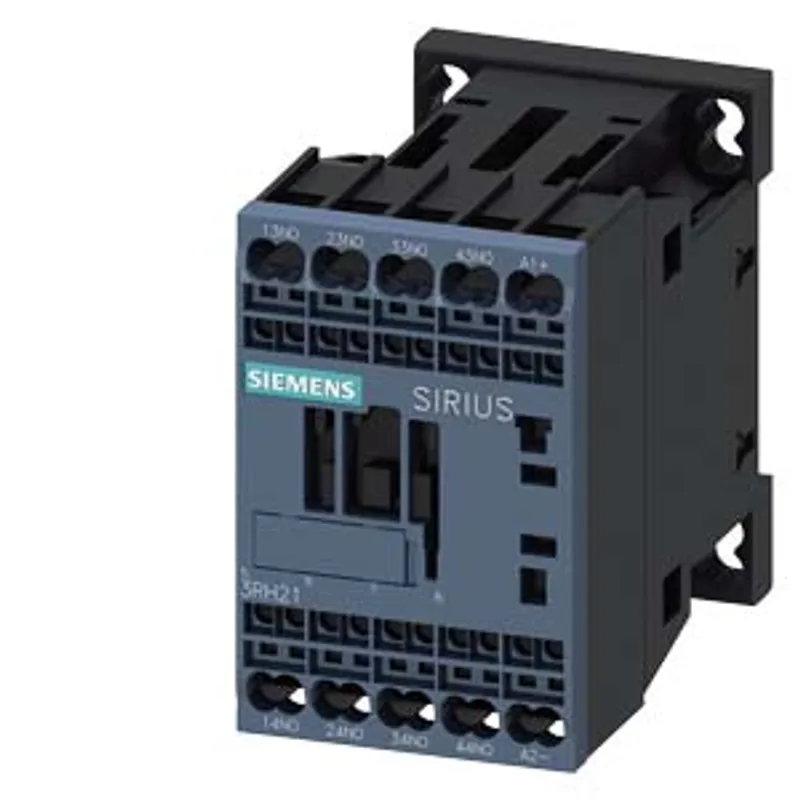

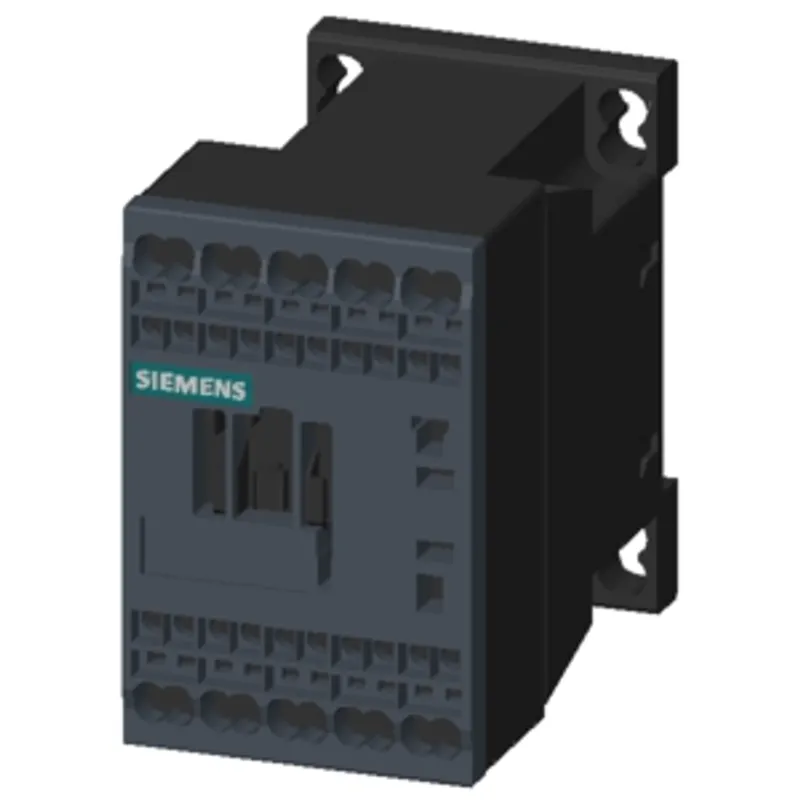

Siemens 3RH2140-2FM40

Contactor relay, 4 NO, 220 V DC, with integrated diode, spring-loaded terminal, frame size S00

MPN: 3RH2140-2FM40
Category: Circuit Protection & Switching

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

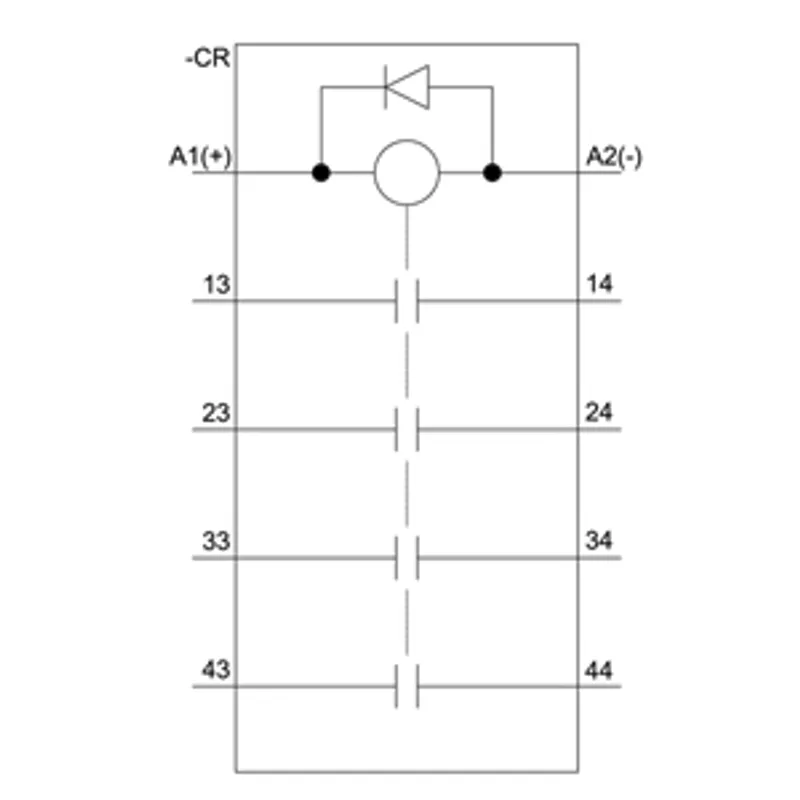

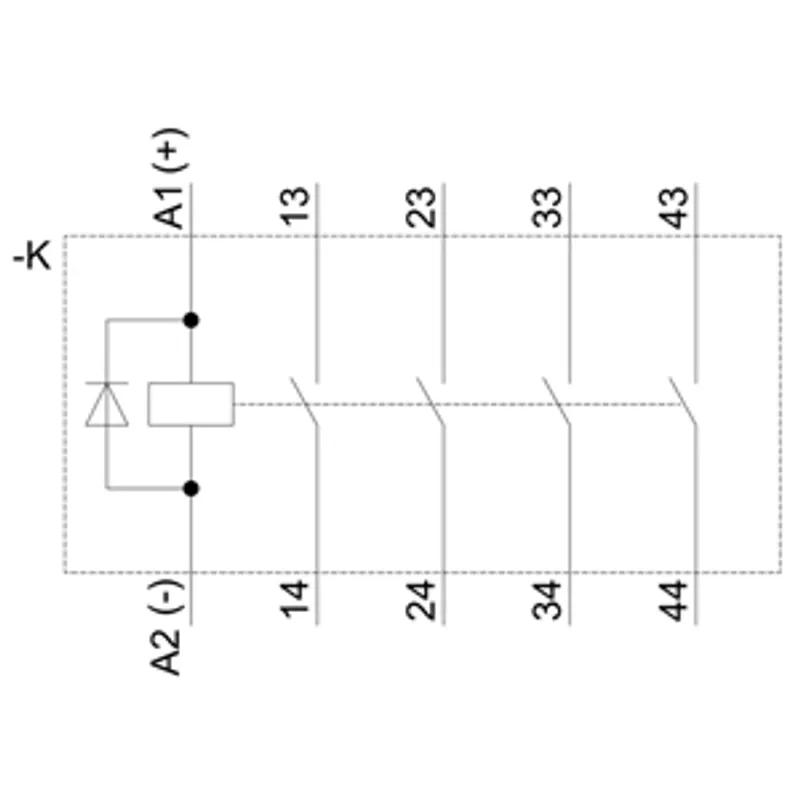

What is the Siemens 3RH2140-2FM40?

contactor relay, 4 NO, 220 V DC, with integrated diode, spring-loaded terminal, frame size S00,

Specifications

General

product brand name	SIRIUS
product designation	Auxiliary contactor
product type designation	3RH2

General technical data

size of contactor	S00
product extension auxiliary switch	Yes
power loss [W] for rated value of the current without load current share typical	4 W
insulation voltage with degree of pollution 3 at AC rated value	690 V
degree of pollution	3
surge voltage resistance rated value	6 kV
shock resistance at rectangular impulse — at DC	10 g / 5 ms, 5 g / 10 ms
shock resistance with sine pulse — at DC	15 g / 5 ms, 8 g / 10 ms
mechanical service life (operating cycles) — of contactor typical	30 000 000
mechanical service life (operating cycles) — of the contactor with added electronically optimized auxiliary switch block typical	5 000 000
mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical	10 000 000
reference code according to IEC 81346-2	K
Substance Prohibitance (day/month/year)	10/01/2009
SVHC substance name	Lead CAS-No. 7439-92-1
Net Weight	0.289 kg

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

no-load switching frequency — at AC	10 000 1/h
no-load switching frequency — at DC	10 000 1/h

Control circuit/ Control

type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	220 V
operating range factor control supply voltage rated value of magnet coil at DC — initial value	0.8
operating range factor control supply voltage rated value of magnet coil at DC — full-scale value	1.1
design of the surge suppressor	diode
closing power of magnet coil at DC	4 W
holding power of magnet coil at DC	4 W
closing delay — at DC	30 ... 100 ms
opening delay — at DC	38 ... 65 ms
arcing time	10 ... 15 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts	0
number of NC contacts for auxiliary contacts — instantaneous contact	0
number of NO contacts for auxiliary contacts	4
number of NO contacts for auxiliary contacts — instantaneous contact	4
identification number and letter for switching elements	40 E
operational current at AC-12 maximum	10 A
operational current at AC-15 — at 230 V rated value	10 A
operational current at AC-15 — at 400 V rated value	3 A
operational current at AC-15 — at 500 V rated value	2 A
operational current at AC-15 — at 690 V rated value	1 A
operational current at 1 current path at DC-12 — at 24 V rated value	10 A
operational current at 1 current path at DC-12 — at 60 V rated value	6 A
operational current at 1 current path at DC-12 — at 110 V rated value	3 A
operational current at 1 current path at DC-12 — at 220 V rated value	1 A
operational current at 1 current path at DC-12 — at 440 V rated value	0.3 A
operational current at 1 current path at DC-12 — at 600 V rated value	0.15 A
operational current with 2 current paths in series at DC-12 — at 24 V rated value	10 A
operational current with 2 current paths in series at DC-12 — at 60 V rated value	10 A
operational current with 2 current paths in series at DC-12 — at 110 V rated value	4 A
operational current with 2 current paths in series at DC-12 — at 220 V rated value	2 A
operational current with 2 current paths in series at DC-12 — at 440 V rated value	1.3 A
operational current with 2 current paths in series at DC-12 — at 600 V rated value	0.65 A
operational current with 3 current paths in series at DC-12 — at 24 V rated value	10 A
operational current with 3 current paths in series at DC-12 — at 60 V rated value	10 A
operational current with 3 current paths in series at DC-12 — at 110 V rated value	10 A
operational current with 3 current paths in series at DC-12 — at 220 V rated value	3.6 A
operational current with 3 current paths in series at DC-12 — at 440 V rated value	2.5 A
operational current with 3 current paths in series at DC-12 — at 600 V rated value	1.8 A
operating frequency at DC-12 maximum	1 000 1/h
operational current at 1 current path at DC-13 — at 24 V rated value	10 A
operational current at 1 current path at DC-13 — at 60 V rated value	2 A
operational current at 1 current path at DC-13 — at 110 V rated value	1 A
operational current at 1 current path at DC-13 — at 220 V rated value	0.3 A
operational current at 1 current path at DC-13 — at 440 V rated value	0.14 A
operational current at 1 current path at DC-13 — at 600 V rated value	0.1 A
operational current with 2 current paths in series at DC-13 — at 24 V rated value	10 A
operational current with 2 current paths in series at DC-13 — at 60 V rated value	3.5 A
operational current with 2 current paths in series at DC-13 — at 110 V rated value	1.3 A
operational current with 2 current paths in series at DC-13 — at 220 V rated value	0.9 A
operational current with 2 current paths in series at DC-13 — at 440 V rated value	0.2 A
operational current with 2 current paths in series at DC-13 — at 600 V rated value	0.1 A
operational current with 3 current paths in series at DC-13 — at 24 V rated value	10 A
operational current with 3 current paths in series at DC-13 — at 60 V rated value	4.7 A
operational current with 3 current paths in series at DC-13 — at 110 V rated value	3 A
operational current with 3 current paths in series at DC-13 — at 220 V rated value	1.2 A
operational current with 3 current paths in series at DC-13 — at 440 V rated value	0.5 A
operational current with 3 current paths in series at DC-13 — at 600 V rated value	0.26 A
operating frequency at DC-13 maximum	1 000 1/h
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to UL

A600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
design of the fuse link for short-circuit protection of the auxiliary switch required	gG: 10 A (690 V, 1 kA)

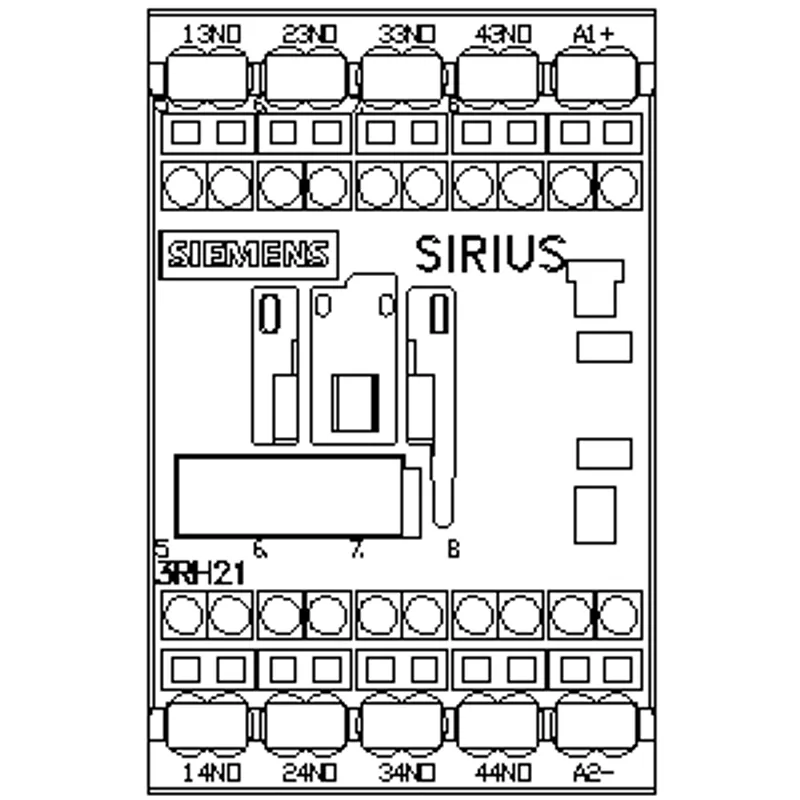

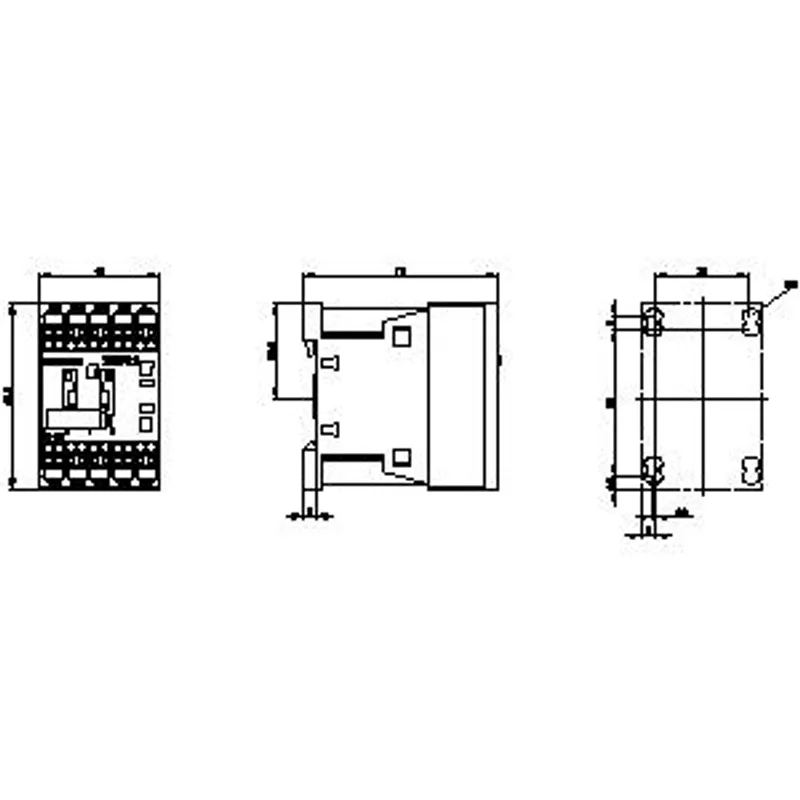

Installation/ mounting/ dimensions

mounting position	+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	70 mm
width	45 mm
depth	73 mm
required spacing — with side-by-side mounting — forwards	10 mm
required spacing — with side-by-side mounting — upwards	10 mm
required spacing — with side-by-side mounting — downwards	10 mm
required spacing — with side-by-side mounting — at the side	0 mm
required spacing — for grounded parts — forwards	10 mm
required spacing — for grounded parts — upwards	10 mm
required spacing — for grounded parts — at the side	6 mm
required spacing — for grounded parts — downwards	10 mm
required spacing — for live parts — forwards	10 mm
required spacing — for live parts — upwards	10 mm
required spacing — for live parts — downwards	10 mm
required spacing — for live parts — at the side	6 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuit	spring-loaded terminals
type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded	2x (0,5 ... 4 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded without core end processing	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for AWG cables for auxiliary contacts	2x (20 ... 12)

Safety related data

product function — positively driven operation according to IEC 60947-5-1	Yes; with 3RH29
product function — suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
proportion of dangerous failures — with low demand rate according to SN 31920	40 %
proportion of dangerous failures — with high demand rate according to SN 31920	73 %
B10 value with high demand rate according to SN 31920	1 000 000; With 0.3 x Ie
failure rate [FIT] with low demand rate according to SN 31920	100 FIT
device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	1.3 kg
global warming potential [CO2 eq] / during operation	132 kg
global warming potential [CO2 eq] / after end of life	-0.227 kg
global warming potential [CO2 eq] / total	133 kg
