Home / Siemens / Siemens 3RH2131-2AP00-Z X95 – Contactor relay, 3 NO + 1 NC, 230 V AC, 50/60 Hz

Available on request

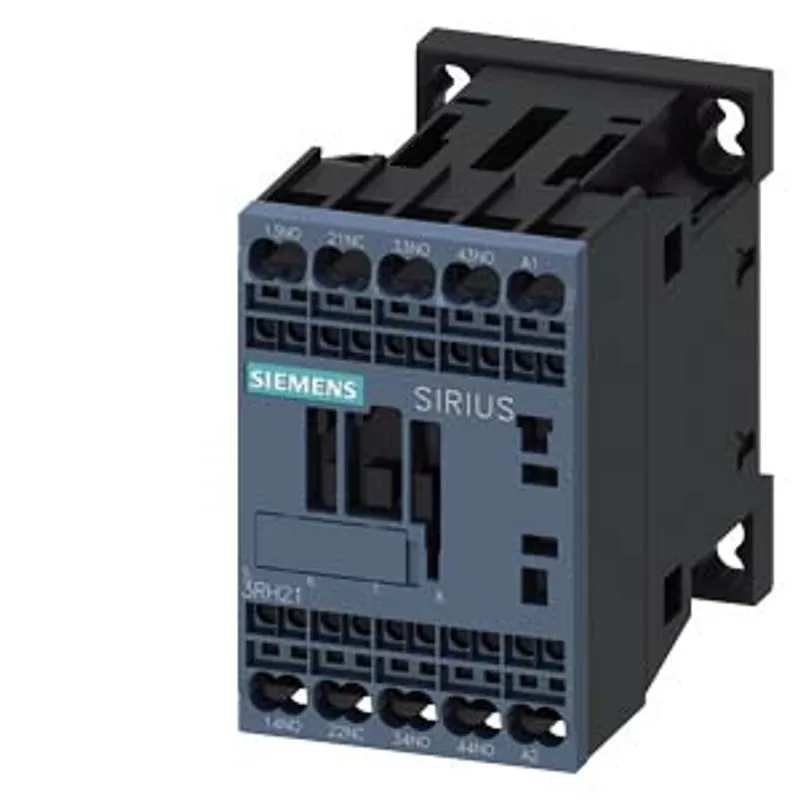

Siemens 3RH2131-2AP00-Z X95 – Contactor relay, 3 NO + 1 NC, 230 V AC, 50/60 Hz

Name: Siemens 3RH2131-2AP00-Z X95 – Contactor relay, 3 NO + 1 NC, 230 V AC, 50/60 Hz
Brand: Siemens
SKU: 3RH2131-2AP00-Z X95

MPN: 3RH2131-2AP00-Z X95 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Circuit Protection & Switching
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.24 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RH2131-2AP00-Z X95 be shipped?

3RH2131-2AP00-Z X95 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RH2131-2AP00-Z X95 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RH2131-2AP00-Z X95 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RH2131-2AP00-Z X95, subject to availability and destination.

contactor relay, 3 NO + 1 NC, 230 V AC, 50/60 Hz, spring-loaded terminal, frame size S00, reusable packaging, pack = 120 units

Specifications

General technical data

size of contactor	S00
product extension auxiliary switch	Yes
power loss [W] for rated value of the current without load current share typical	1.43 W
insulation voltage with degree of pollution 3 at AC rated value	690 V
degree of pollution	3
surge voltage resistance rated value	6 kV
shock resistance at rectangular impulse – at AC	7,3 g / 5 ms, 4,7 g / 10 ms
shock resistance with sine pulse – at AC	11,4 g / 5 ms, 7,3 g / 10 ms
mechanical service life (operating cycles) – of contactor typical	30 000 000
mechanical service life (operating cycles) – of the contactor with added electronically optimized auxiliary switch block typical	5 000 000
mechanical service life (operating cycles) – of the contactor with added auxiliary switch block typical	10 000 000
reference code according to IEC 81346-2	K
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	238.8 g

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature – during operation	-25 ... +60 °C
ambient temperature – during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

no-load switching frequency – at AC	10 000 1/h
no-load switching frequency – at DC	10 000 1/h

Control circuit/ Control

type of voltage of the control supply voltage	AC
control supply voltage at AC – at 50 Hz rated value	230 V
control supply voltage at AC – at 60 Hz rated value	230 V
control supply voltage frequency – 1 rated value	50 Hz
control supply voltage frequency – 2 rated value	60 Hz
operating range factor control supply voltage rated value of magnet coil at AC – at 50 Hz	0.8 ... 1.1
operating range factor control supply voltage rated value of magnet coil at AC – at 60 Hz	0.85 ... 1.1
apparent pick-up power of magnet coil at AC	37 V·A
inductive power factor with closing power of the coil	0.8
apparent holding power of magnet coil at AC	5.7 V·A
inductive power factor with the holding power of the coil	0.25
closing delay – at AC	8 ... 33 ms
opening delay – at AC	4 ... 15 ms
arcing time	10 ... 15 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts	1
instantaneous contact	1
number of NO contacts for auxiliary contacts	3
instantaneous contact	3
identification number and letter for switching elements	31 E
operational current at AC-12 maximum	10 A
operational current at AC-15 – at 230 V rated value	10 A
operational current at AC-15 – at 400 V rated value	3 A
operational current at AC-15 – at 500 V rated value	2 A
operational current at AC-15 – at 690 V rated value	1 A
operational current at 1 current path at DC-12 – at 24 V rated value	10 A
operational current at 1 current path at DC-12 – at 60 V rated value	6 A
operational current at 1 current path at DC-12 – at 110 V rated value	3 A
operational current at 1 current path at DC-12 – at 220 V rated value	1 A
operational current at 1 current path at DC-12 – at 440 V rated value	0.3 A
operational current at 1 current path at DC-12 – at 600 V rated value	0.15 A
operational current with 2 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 110 V rated value	4 A
operational current with 2 current paths in series at DC-12 – at 220 V rated value	2 A
operational current with 2 current paths in series at DC-12 – at 440 V rated value	1.3 A
operational current with 2 current paths in series at DC-12 – at 600 V rated value	0.65 A
operational current with 3 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 110 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 220 V rated value	3.6 A
operational current with 3 current paths in series at DC-12 – at 440 V rated value	2.5 A
operational current with 3 current paths in series at DC-12 – at 600 V rated value	1.8 A
operating frequency at DC-12 maximum	1 000 1/h
operational current at 1 current path at DC-13 – at 24 V rated value	10 A
operational current at 1 current path at DC-13 – at 60 V rated value	2 A
operational current at 1 current path at DC-13 – at 110 V rated value	1 A
operational current at 1 current path at DC-13 – at 220 V rated value	0.3 A
operational current at 1 current path at DC-13 – at 440 V rated value	0.14 A
operational current at 1 current path at DC-13 – at 600 V rated value	0.1 A
operational current with 2 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-13 – at 60 V rated value	3.5 A
operational current with 2 current paths in series at DC-13 – at 110 V rated value	1.3 A
operational current with 2 current paths in series at DC-13 – at 220 V rated value	0.9 A
operational current with 2 current paths in series at DC-13 – at 440 V rated value	0.2 A
operational current with 2 current paths in series at DC-13 – at 600 V rated value	0.1 A
operational current with 3 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-13 – at 60 V rated value	4.7 A
operational current with 3 current paths in series at DC-13 – at 110 V rated value	3 A
operational current with 3 current paths in series at DC-13 – at 220 V rated value	1.2 A
operational current with 3 current paths in series at DC-13 – at 440 V rated value	0.5 A
operational current with 3 current paths in series at DC-13 – at 600 V rated value	0.26 A
operating frequency at DC-13 maximum	1 000 1/h
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to UL

A600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
design of the fuse link for short-circuit protection of the auxiliary switch required	gG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting position	+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	70 mm
width	45 mm
depth	73 mm
with side-by-side mounting – — forwards	10 mm
with side-by-side mounting – — upwards	10 mm
with side-by-side mounting – — downwards	10 mm
with side-by-side mounting – — at the side	0 mm
for grounded parts – — forwards	10 mm
for grounded parts – — upwards	10 mm
for grounded parts – — at the side	6 mm
for grounded parts – — downwards	10 mm
for live parts – — forwards	10 mm
for live parts – — upwards	10 mm
for live parts – — downwards	10 mm
for live parts – — at the side	6 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuit	spring-loaded terminals
for auxiliary contacts – — solid or stranded	2x (0,5 ... 4 mm²)
for auxiliary contacts – — finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
for auxiliary contacts – — finely stranded without core end processing	2x (0.5 ... 2.5 mm²)
for auxiliary contacts – for AWG cables for auxiliary contacts	2x (20 ... 12)

Safety related data

product function – positively driven operation according to IEC 60947-5-1	Yes
product function – suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
proportion of dangerous failures – with low demand rate according to SN 31920	40 %
proportion of dangerous failures – with high demand rate according to SN 31920	73 %
B10 value with high demand rate according to SN 31920	1 000 000; With 0.3 x Ie
failure rate [FIT] with low demand rate according to SN 31920	100 FIT
device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
