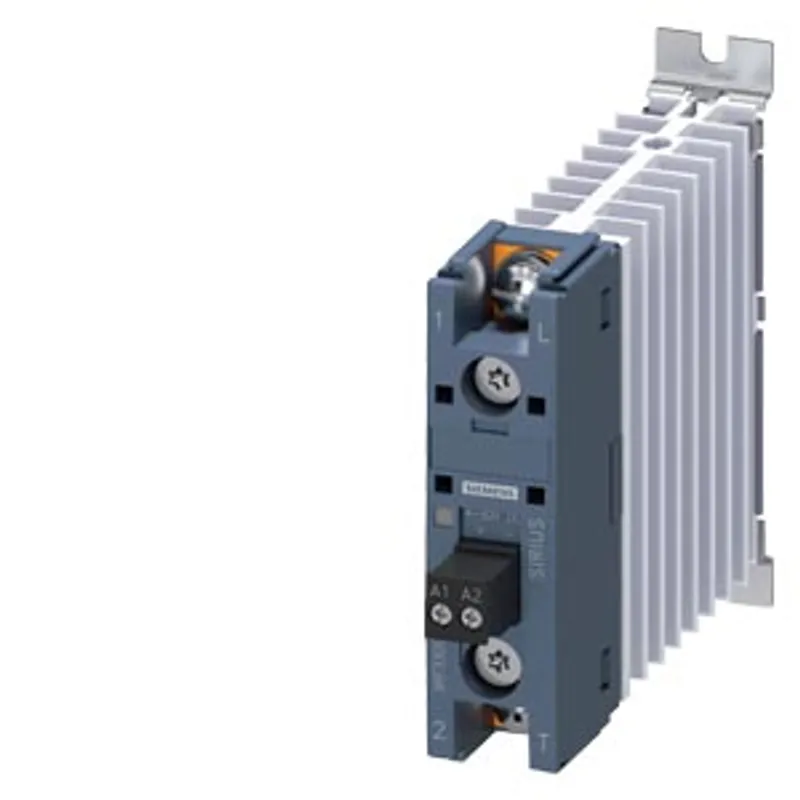

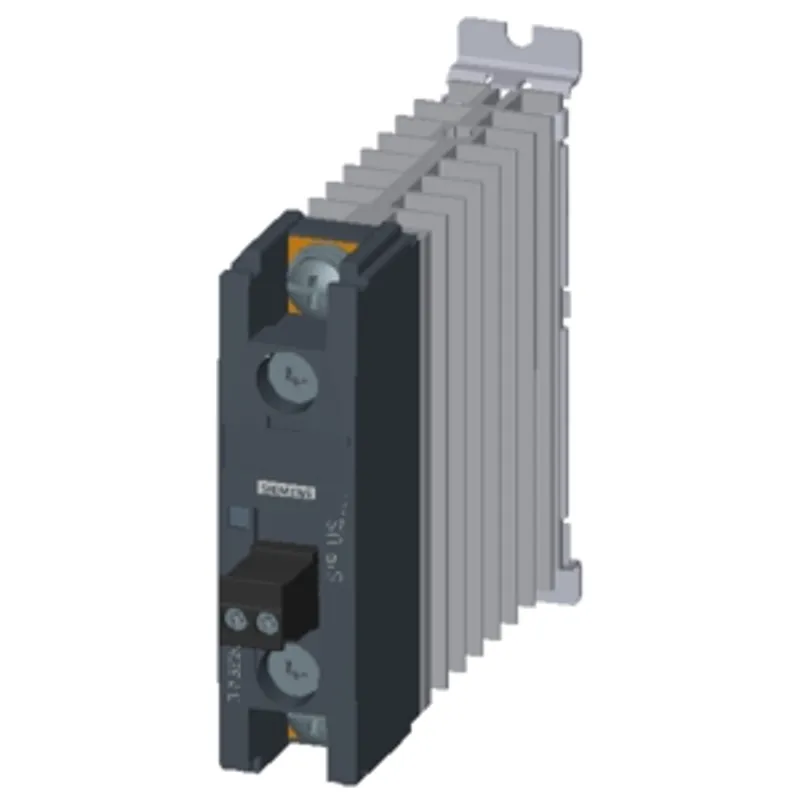

Siemens 3RF3320-3AA44
Solid-state contactor 1-pole 3RF3 AC-1 / 20 A / 40 °C 48-460 V / 4-30 V DC ring cable lug connection
- MPN
- 3RF3320-3AA44
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RF3320-3AA44?
solid-state contactor 1-pole 3RF3 AC-1 / 20 A / 40 °C 48-460 V / 4-30 V DC ring cable lug connection
Specifications
General
| product brand name | SIRIUS |
| product designation | solid-state contactor |
| product type designation | 3RF33 |
| manufacturer's article number — _1 of the accessories that can be ordered | 3RF2900-3PA88 |
| manufacturer's article number — _3 of the accessories that can be ordered | 3RF3900-0EA18 |
| manufacturer's article number — _4 of the accessories that can be ordered | 3RF3920-0GA16 |
| product designation — _1 of the accessories that can be ordered | terminal cover |
| product designation — _3 of the accessories that can be ordered | converter |
| product designation — _4 of the accessories that can be ordered | load monitoring |
General technical data
| product function | zero-point switching |
| power loss [V∙A] maximum | 18.6 V·A |
| power loss [W] for rated value of the current — at AC in hot operating state | 18.5 W |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 18.5 W |
| power loss [W] for rated value of the current — without load current share typical | 0.6 W |
| type of calculation of power loss current-dependent | linear |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 6 kV |
| protection class IP | IP00 |
| protection class IP on the front according to IEC 60529 | IP00 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 01/15/2024 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4 |
| Net Weight | 0.165 kg |
Main circuit
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
| type of voltage of the operating voltage | AC |
| operating voltage — at AC — at 50 Hz rated value | 48 ... 460 V |
| operating voltage — at AC — at 60 Hz rated value | 48 ... 460 V |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| operating range relative to the operating voltage at AC — at 50 Hz | 40 ... 506 V |
| operating range relative to the operating voltage at AC — at 60 Hz | 40 ... 506 V |
| operational current rated value maximum | 20 A |
| operational current — at AC-1 at 400 V rated value | 20 A |
| operational current — at AC-51 rated value | 20 A |
| operational current — at AC-51 according to IEC 60947-4-3 | 20 A |
| operational current — according to UL 508 rated value | 16 A |
| ampacity maximum | 20 A |
| operational current minimum | 500 mA |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 1 000 V/µs |
| blocking voltage at the thyristor for main contacts maximum permissible | 1 200 V |
| reverse current of the thyristor | 10 mA |
| derating temperature | 40 °C |
| surge current resistance rated value | 600 A |
| I2t value maximum | 8 000 A²·s |
Control circuit/ Control
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC | 4 ... 30 V |
| control supply voltage 1 at DC | 4 ... 30 V |
| control supply voltage at DC — initial value for signal <1> detection | 4 V |
| control supply voltage at DC — full-scale value for signal<0> recognition | 1 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.17 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.25 |
| control current at minimum control supply voltage — at DC | 18 mA |
| control current at DC rated value | 20 mA |
| ON-delay time | 1 ms; additionally max. one half-wave |
| OFF-delay time | 1 ms; additionally max. one half-wave |

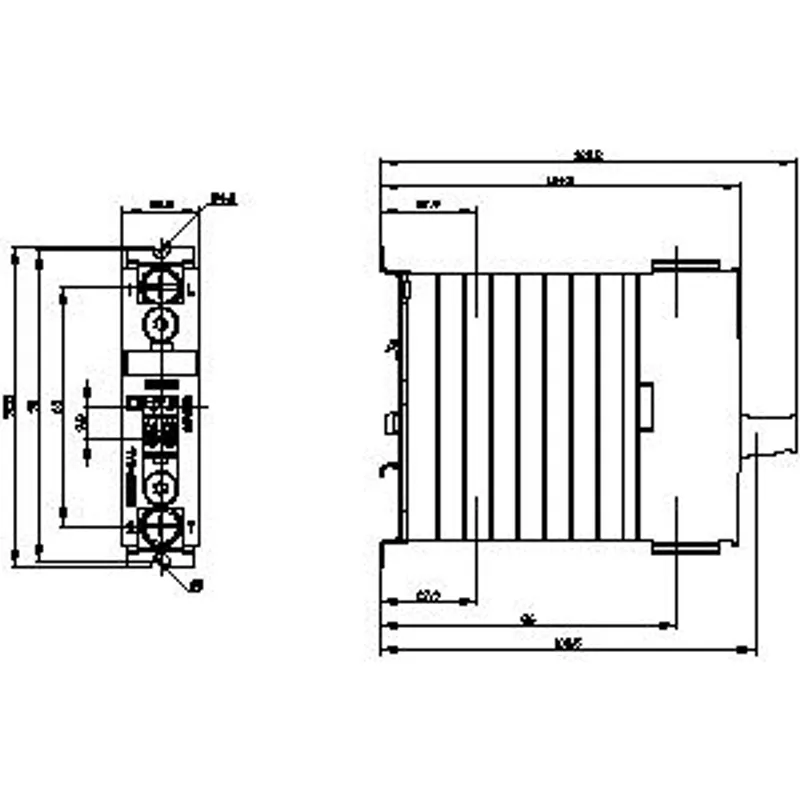

Installation/ mounting/ dimensions
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715 |
| design of the thread of the screw for securing the equipment | M4 |
| height | 95 mm |
| width | 22.5 mm |
| depth | 121 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection — for main current circuit | Ring cable lug connection |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for main contacts for JIS cable lug | JIS C 2805 R 2-5, 5,5-5, 8-5, 14-5 |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 1x (12 ... 4) |
| type of connectable conductor cross-sections — for DIN cable lug for main contacts | DIN 46234-5-2,5, -5-6, -5-10, -5-16, -5-25 |
| type of connectable conductor cross-sections — for auxiliary and control contacts — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| AWG number as coded connectable conductor cross section for main contacts | 12 ... 4 |
| tightening torque — for main contacts with screw-type terminals | 2 ... 2.5 N·m |
| tightening torque — for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] — for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw — for main contacts | M5 |
| design of the thread of the connection screw — of the auxiliary and control contacts | M3 |
| stripped length of the cable — for main contacts | 10 mm |
| stripped length of the cable — for auxiliary and control contacts | 7 mm |
| type of grounding | grounding by snapping onto grounded DIN rails |
UL/CSA ratings
| operational current according to UL 508 rated value | 16 A |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with cover |
Ambient conditions
| installation altitude at height above sea level maximum | 1 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| field-based interference according to IEC 61000-4-3 | 80 MHz ... 1 GHz 10 V/m, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
Short-circuit protection, design of the fuse link
| manufacturer's article number — of full range R fuse link for semiconductor protection at NH design usable | 3NE8714-1 |
| manufacturer's article number — of gS fuse for semiconductor protection at NH design usable | 3NE1814-0 |
| manufacturer's article number — of full range R fuse link for semiconductor protection at cylindrical design usable | 5SE1325 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at NH design usable | 3NE8814-0MK |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable | 3NC1032 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable | 3NC1450 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable | 3NC2263 |
| manufacturer's article number of the gG fuse — at NH design usable | 3NA6807 |
| manufacturer's article number of the gG fuse — at cylindrical design 10 x 38 mm usable | 3NW6007-1 |
| manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable | 3NW6105-1; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable | 3NW6205-1; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number — of DIAZED fuse usable | 5SB2711 |
| manufacturer's article number — of NEOZED fuse usable | 5SE2320 |
