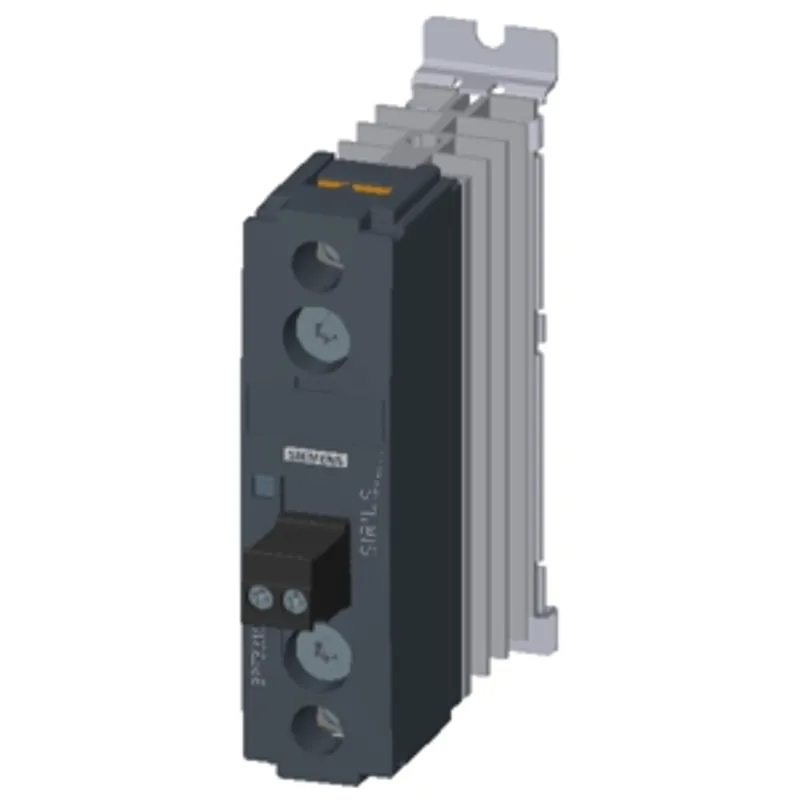

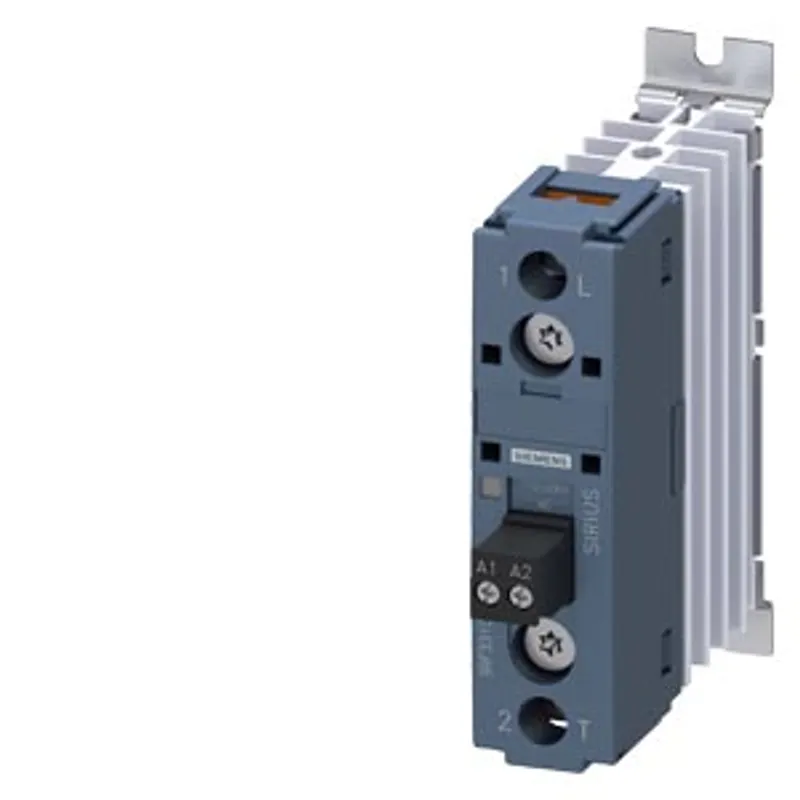

What is the Siemens 3RF3310-1BA22?
solid-state contactor 1-pole 3RF3 AC-15 / 6 A / 40 °C 24-230 V / 110-230 V AC instantaneous switching screw terminal
Specifications
General
| product brand name | SIRIUS |
| product designation | solid-state contactor |
| product type designation | 3RF33 |
| manufacturer's article number — _1 of the accessories that can be ordered | 3RF2900-3PA88 |
| product designation — _1 of the accessories that can be ordered | terminal cover |
General technical data
| product function | instantaneous switching |
| power loss [V∙A] maximum | 9.4 V·A |
| power loss [W] for rated value of the current — at AC in hot operating state | 8.5 W |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 8.5 W |
| power loss [W] for rated value of the current — without load current share typical | 3.5 W |
| type of calculation of power loss current-dependent | linear |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 6 kV |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 01/15/2024 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4 |
| Net Weight | 0.122 kg |
Main circuit
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
| type of voltage of the operating voltage | AC |
| operating voltage — at AC — at 50 Hz rated value | 24 ... 230 V |
| operating voltage — at AC — at 60 Hz rated value | 24 ... 230 V |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| operating range relative to the operating voltage at AC — at 50 Hz | 20 ... 253 V |
| operating range relative to the operating voltage at AC — at 60 Hz | 20 ... 253 V |
| operational current rated value maximum | 10 A |
| operational current — at AC-1 at 400 V rated value | 10 A |
| operational current — at AC-15 rated value | 6 A |
| operational current — at AC-51 rated value | 10 A |
| operational current — at AC-51 according to IEC 60947-4-3 | 10 A |
| operational current — according to UL 508 rated value | 8 A |
| ampacity maximum | 10 A |
| operational current minimum | 100 mA |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 1 000 V/µs |
| blocking voltage at the thyristor for main contacts maximum permissible | 800 V |
| reverse current of the thyristor | 10 mA |
| derating temperature | 40 °C |
| surge current resistance rated value | 260 A |
| I2t value maximum | 360 A²·s |
Control circuit/ Control
| type of voltage of the control supply voltage | AC |
| control supply voltage at AC — at 50 Hz | 110 ... 230 V |
| control supply voltage at AC — at 60 Hz | 110 ... 230 V |
| control supply voltage 1 at AC — at 50 Hz | 110 ... 230 V |
| control supply voltage 1 at AC — at 60 Hz | 110 ... 230 V |
| control supply voltage at AC — at 50 Hz full-scale value for signal<0> recognition | 40 V |
| control supply voltage at AC — at 60 Hz full-scale value for signal<0> recognition | 40 V |
| control supply voltage at AC — initial value for signal <1> detection | 90 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| symmetrical line frequency tolerance | 5 Hz |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.82 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.82 |
| control current at minimum control supply voltage — at AC | 2 mA |
| control current at AC rated value | 15 mA |
| ON-delay time | 40 ms |
| OFF-delay time | 40 ms; additionally max. one half-wave |

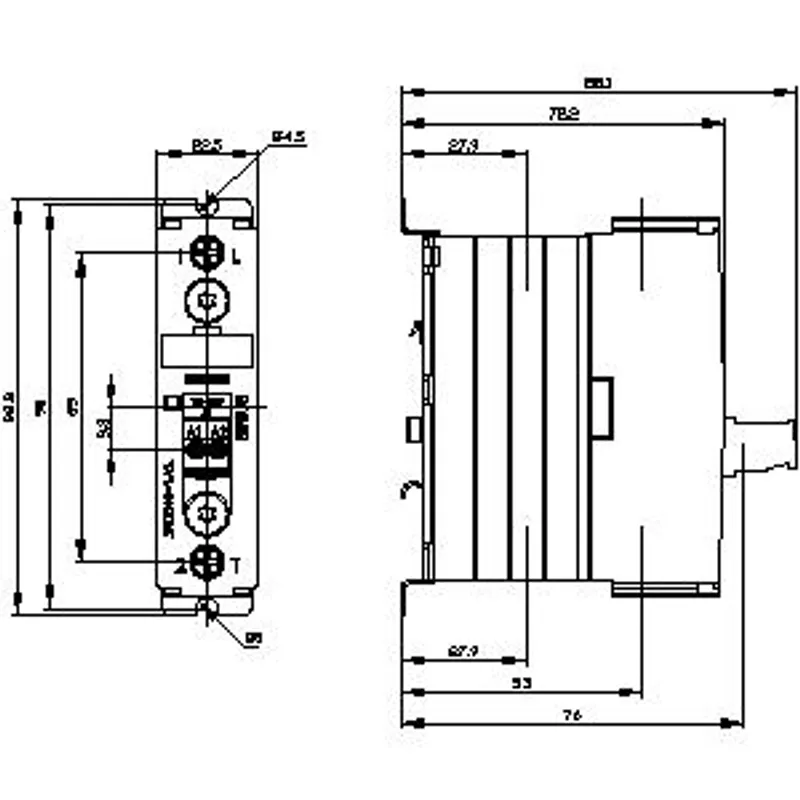

Installation/ mounting/ dimensions
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715 |
| design of the thread of the screw for securing the equipment | M4 |
| height | 95 mm |
| width | 22.5 mm |
| depth | 89 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for main contacts — solid | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 2x (14 ... 10), 1x 8 |
| connectable conductor cross-section for main contacts — solid or stranded | 1.5 ... 6 mm² |
| connectable conductor cross-section for main contacts — finely stranded with core end processing | 1 ... 10 mm² |
| type of connectable conductor cross-sections — for auxiliary and control contacts — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| AWG number as coded connectable conductor cross section for main contacts | 14 ... 8 |
| tightening torque — for main contacts with screw-type terminals | 2 ... 2.5 N·m |
| tightening torque — for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] — for main contacts with screw-type terminals | 18 ... 22 lbf·in |
| tightening torque [lbf·in] — for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw — for main contacts | M4 |
| design of the thread of the connection screw — of the auxiliary and control contacts | M3 |
| stripped length of the cable — for main contacts | 10 mm |
| stripped length of the cable — for auxiliary and control contacts | 7 mm |
| type of grounding | grounding by snapping onto grounded DIN rails |
UL/CSA ratings
| operational current according to UL 508 rated value | 8 A |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Ambient conditions
| installation altitude at height above sea level maximum | 1 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| field-based interference according to IEC 61000-4-3 | 80 MHz ... 1 GHz 10 V/m, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
Short-circuit protection, design of the fuse link
| manufacturer's article number — of full range R fuse link for semiconductor protection at NH design usable | 3NE8714-1 |
| manufacturer's article number — of gS fuse for semiconductor protection at NH design usable | 3NE1815-0 |
| manufacturer's article number — of full range R fuse link for semiconductor protection at cylindrical design usable | 5SE1325 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at NH design usable | 3NE8017-1 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable | 3NC1020 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable | 3NC1430 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable | 3NC2220 |
| manufacturer's article number of the gG fuse — at NH design usable | 3NA6803 |
| manufacturer's article number of the gG fuse — at cylindrical design 10 x 38 mm usable | 3NW6003-1 |
| manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable | 3NW6101-1; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number — of NEOZED fuse usable | 5SE2310 |
