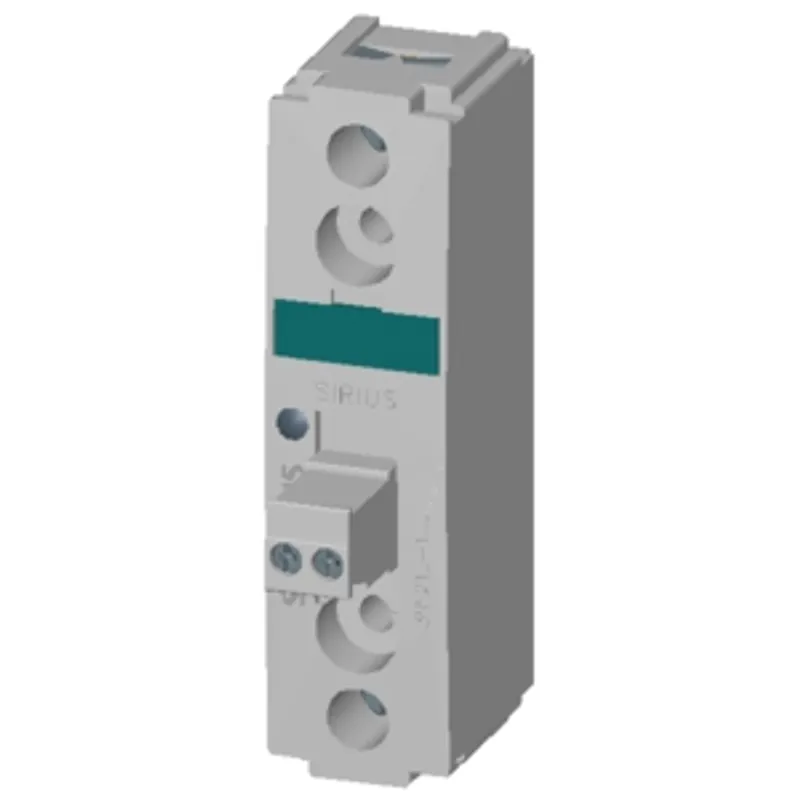

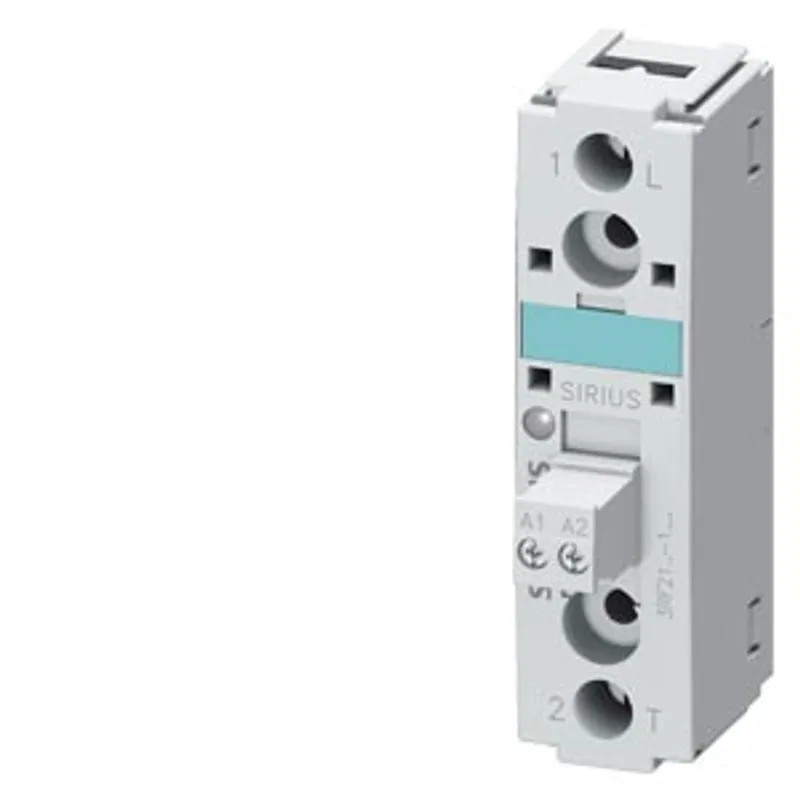

Siemens 3RF2190-1AA02
Semiconductor relay, 1-phase 3RF2 width 22.5 mm
- MPN
- 3RF2190-1AA02
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

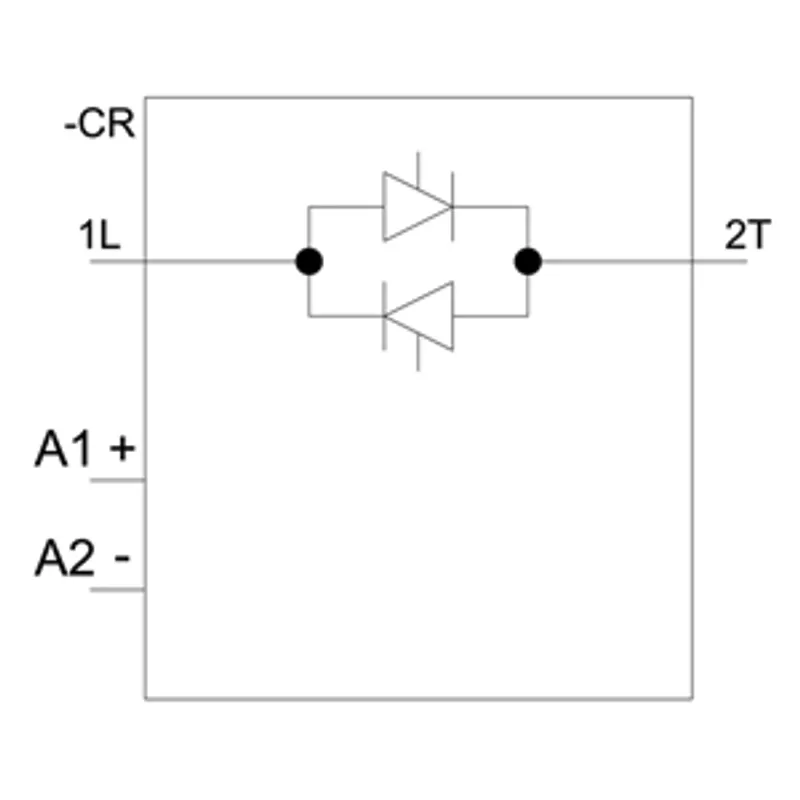

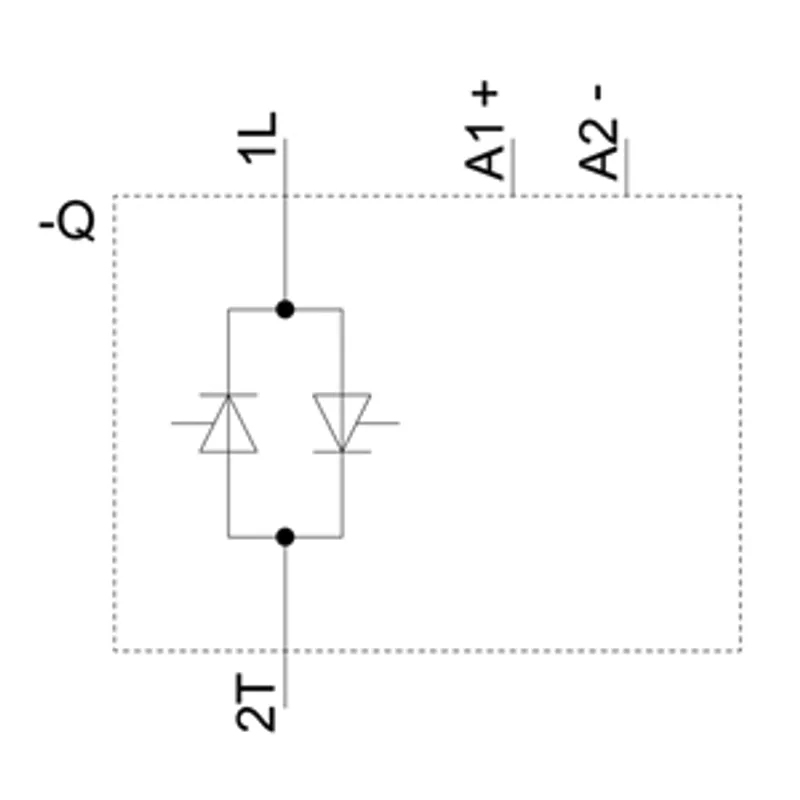

What is the Siemens 3RF2190-1AA02?
semiconductor relay, 1-phase 3RF2 width 22.5 mm, 90 A 24-230 V / 24 V DC screw terminal for mounting on available cooling surfaces
Specifications
General
| product brand name | SIRIUS |
| product designation | solid-state relay |
| design of the product | 1-pole |
| product type designation | 3RF21 |
| manufacturer's article number — _1 of the accessories that can be ordered | 3RF2900-3PA88 |
| manufacturer's article number — _2 of the accessories that can be ordered | 3RF2990-0HA13 |
| manufacturer's article number — _3 of the accessories that can be ordered | 3RF2900-0EA18 |
| manufacturer's article number — _4 of the accessories that can be ordered | 3RF2990-0GA13 |
| manufacturer's article number — _5 of the accessories that can be ordered | 3RF2920-0FA08 |
| product designation — _1 of the accessories that can be ordered | terminal cover |
| product designation — _2 of the accessories that can be ordered | power regulator |
| product designation — _3 of the accessories that can be ordered | converter |
| product designation — _4 of the accessories that can be ordered | load monitoring |
| product designation — _5 of the accessories that can be ordered | load monitoring, basis |
General technical data
| product function | zero-point switching |
| power loss [V∙A] maximum | 118 V·A |
| power loss [W] for rated value of the current — at AC in hot operating state | 118 W |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 118 W |
| power loss [W] for rated value of the current — without load current share typical | 0.4 W |
| insulation voltage rated value | 600 V |
| surge voltage resistance of main circuit rated value | 6 kV |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 05/28/2009 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.06 kg |
Main circuit
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
| type of voltage of the operating voltage | AC |
| operating voltage — at AC — at 50 Hz rated value | 24 ... 230 V |
| operating voltage — at AC — at 60 Hz rated value | 24 ... 230 V |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| operating range relative to the operating voltage at AC — at 50 Hz | 20 ... 253 V |
| operating range relative to the operating voltage at AC — at 60 Hz | 20 ... 253 V |
| operational current rated value maximum | 88 A |
| operational current — at AC-1 at 400 V rated value | 90 A |
| operational current — at AC-51 rated value | 50 A |
| operational current — according to UL 508 rated value | 50 A |
| ampacity maximum | 90 A |
| operational current minimum | 500 mA |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 1 000 V/µs |
| blocking voltage at the thyristor for main contacts maximum permissible | 800 V |
| reverse current of the thyristor | 10 mA |
| derating temperature | 40 °C |
| surge current resistance rated value | 1 150 A |
| I2t value maximum | 6 600 A²·s |
Control circuit/ Control
| type of voltage of the control supply voltage | DC |
| control supply voltage 1 at DC rated value maximum permissible | 30 V |
| control supply voltage 1 at DC | 15 ... 24 V |
| control supply voltage at DC — initial value for signal <1> detection | 15 V |
| control supply voltage at DC — full-scale value for signal<0> recognition | 5 V |
| control current at minimum control supply voltage — at DC | 13 mA |
| control current at DC rated value | 15 mA |
| ON-delay time | 1 ms; additionally max. one half-wave |
| OFF-delay time | 1 ms; additionally max. one half-wave |

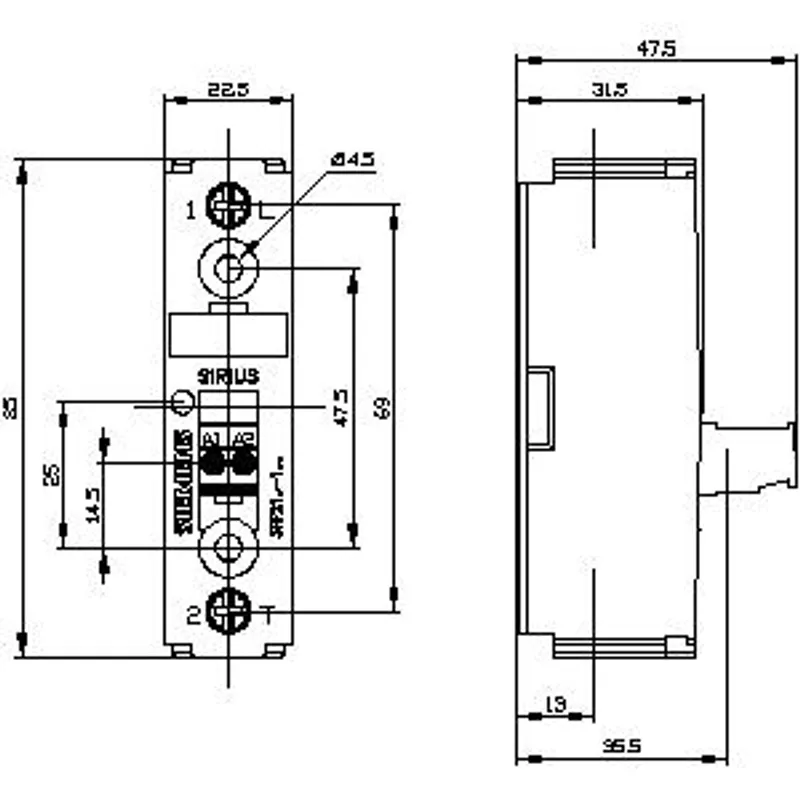

Installation/ mounting/ dimensions
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing |
| design of the thread of the screw for securing the equipment | M4 |
| tightening torque of fixing screw maximum | 1.5 N·m |
| tightening torque [lbf·in] of fixing screw maximum | 13 lbf·in |
| height | 85 mm |
| width | 22.5 mm |
| depth | 48 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for main contacts — solid | 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 2x (14 ... 10) |
| connectable conductor cross-section for main contacts — solid or stranded | 1.5 ... 6 mm² |
| connectable conductor cross-section for main contacts — finely stranded with core end processing | 1 ... 10 mm² |
| type of connectable conductor cross-sections — for auxiliary and control contacts — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| AWG number as coded connectable conductor cross section for main contacts | 14 ... 10 |
| tightening torque — for main contacts with screw-type terminals | 2 ... 2.5 N·m |
| tightening torque — for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] — for main contacts with screw-type terminals | 7 ... 10.3 lbf·in |
| tightening torque [lbf·in] — for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw — for main contacts | M4 |
| design of the thread of the connection screw — of the auxiliary and control contacts | M3 |
| stripped length of the cable — for main contacts | 10 mm |
| stripped length of the cable — for auxiliary and control contacts | 7 mm |
UL/CSA ratings
| operational current according to UL 508 rated value | 50 A |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Ambient conditions
| installation altitude at height above sea level maximum | 1 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| field-based interference according to IEC 61000-4-3 | 80 MHz ... 1 GHz 10 V/m, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
Short-circuit protection, design of the fuse link
| manufacturer's article number — of full range R fuse link for semiconductor protection at NH design usable | 3NE1021-2 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at NH design usable | 3NE8021-1 |
| manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable | 3NC2200 |
| manufacturer's article number of the gG fuse — at NH design usable | 3NA6817; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at NH design usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable | 3NW6217-1; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number — of DIAZED fuse usable | 5SB4111; These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number — of DIAZED fuse usable note | These fuses have a smaller rated current than the semiconductor relays |
| manufacturer's article number — of NEOZED fuse usable | 5SE2335; These fuses have a smaller rated current than the semiconductor relays |
