Siemens
3RC7940-0TE30
Siemens 3RC7940-2TE00
Adapter for stand-alone installation for 3RC7 ILM, frame size S00, setup with 3RT2.1
- MPN
- 3RC7940-2TE00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

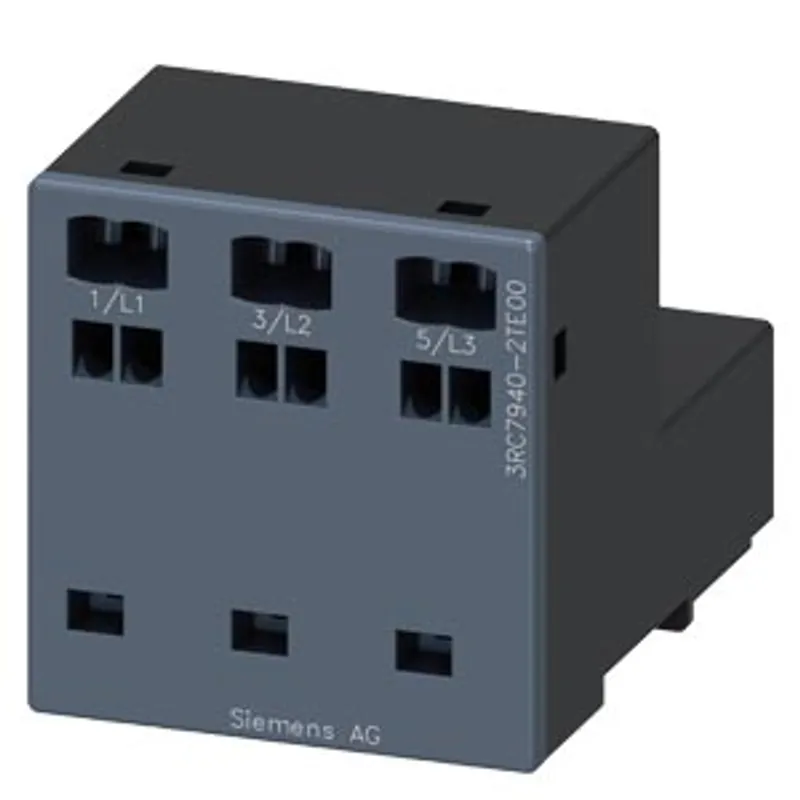

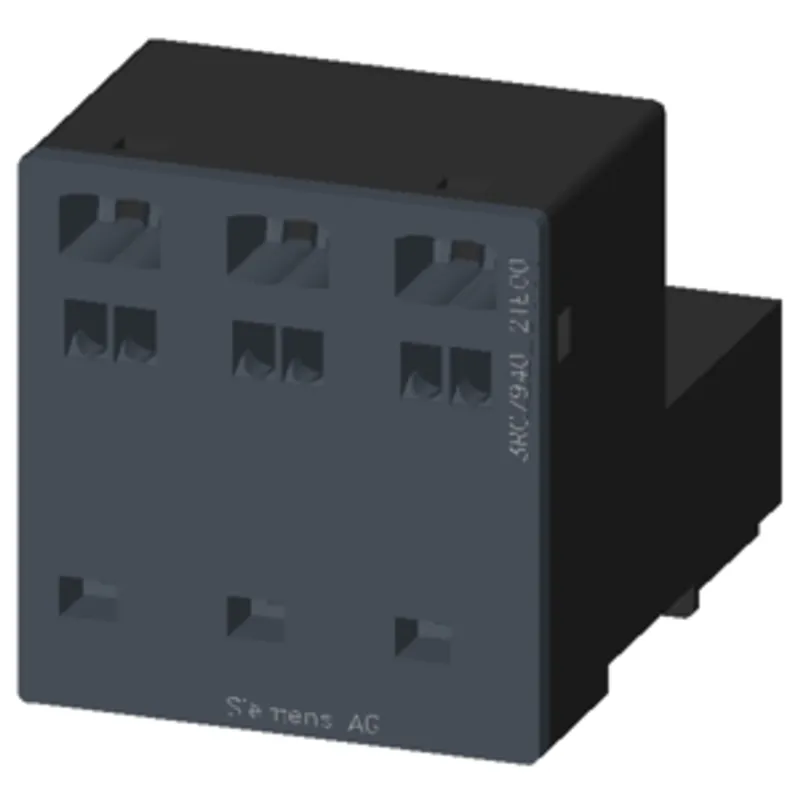

What is the Siemens 3RC7940-2TE00?
adapter for stand-alone installation for 3RC7 ILM, frame size S00, setup with 3RT2.1
Specifications
General
| product brand name | SIRIUS |
| product category | terminal support |
| design of the product | for 3RC7 with contactor size S00 |
| product type designation | 3RC7 |
General technical data
| size of overload relay | S00 |
| protection class IP on the front — according to IEC 60529 | IP20 |
| Substance Prohibitance (day/month/year) | 06/21/2024 |
| Net Weight | 0.057 kg |
Ambient conditions
| ambient temperature — during operation | -20 ... +60 °C |
| ambient temperature — during storage | -50 ... +80 °C |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |

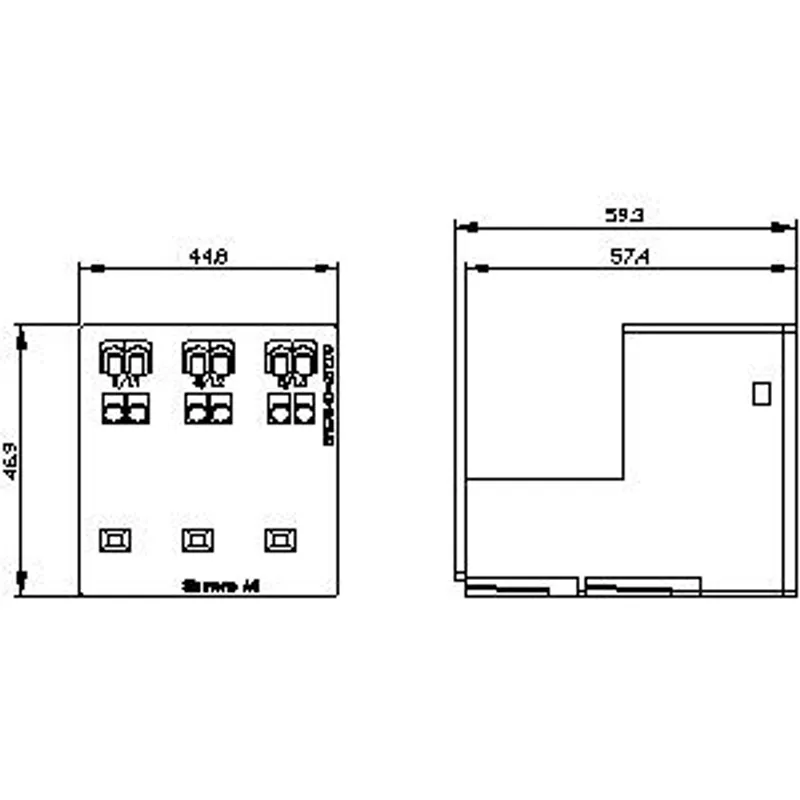

Installation/ mounting/ dimensions
| height | 46.9 mm |
| width | 45 mm |
| depth | 59.3 mm |
Connections/ Terminals
| type of electrical connection — for main current circuit | spring-loaded terminals |
| type of connectable conductor cross-sections — for main contacts — solid | 2x (0.5 ... 4 mm²) |
| type of connectable conductor cross-sections — for main contacts — stranded | 2x (0.5 ... 4 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 1x (20 ... 12) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RC7940-2TE00: frequently asked questions
When can 3RC7940-2TE00 be shipped?
3RC7940-2TE00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RC7940-2TE00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RC7940-2TE00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RC7940-2TE00, subject to availability and destination.
