Siemens 3RC7940-0TE20
SIRIUS 3RC7 intelligent link module
- MPN
- 3RC7940-0TE20
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RC7940-0TE20?

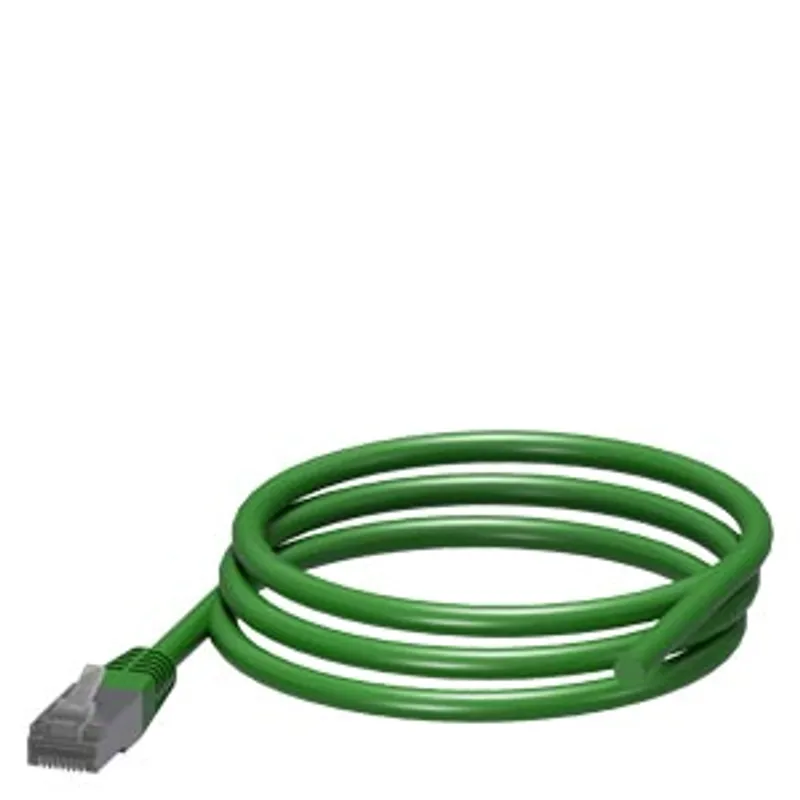

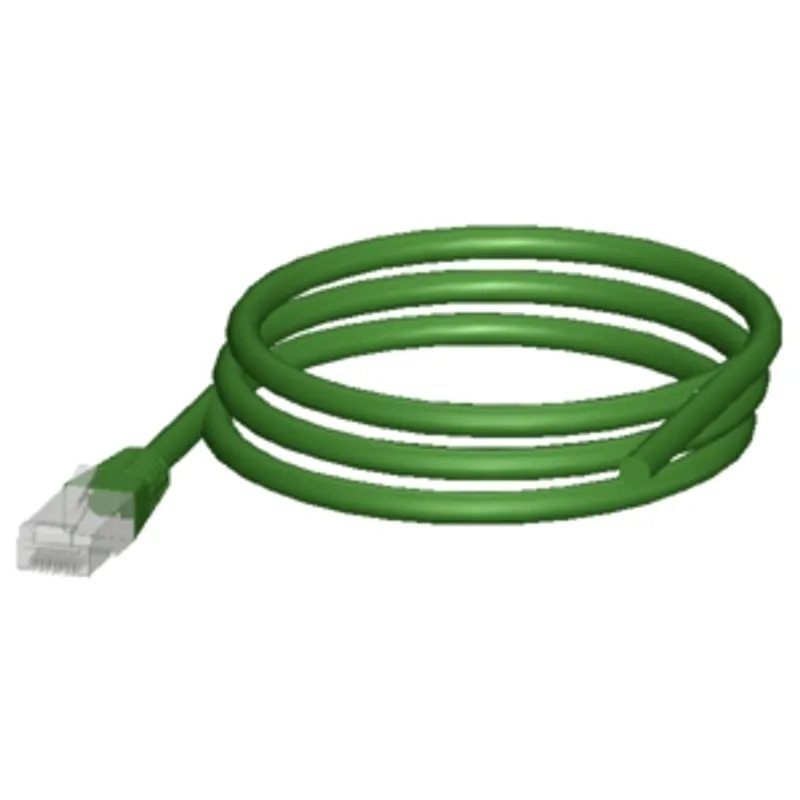

3RC7 ILM Communication Cable between ET 200SP BusAdapter and 3RC7 ILM, length 2 m
Specifications
General technical data
| ampacity per pin maximum | 0 A |
Mechanical data
| connector type | RJ45 |
| type of cable outlet | straight |
| number of poles | 8 |
| material — of the contact | Brass |
| material — of contact coating | 30 μm gold over 50 μm nickel |
| mechanical service life (mating cycles) | 100 |
Connections/ Terminals
| design of the shield | overlapped aluminum-laminated foil, enclosed by a protective braided shield made of tinned copper wires. |
| cable designation | 2Y(ST)CY 1x4x0.5/1.0-100-GN |
| wire length | 2 m |
| number of electrical cores | 4 |
| outer diameter of the wire insulation | 1 mm |
| outer diameter of inner conductor | 0.5 mm |
| outer diameter of cable sheath | 5 mm |
| bending radius — with single bend minimum permissible | 12 mm |
| bending radius — with multiple bends minimum permissible | 40 mm |
| bending radius — with continuous bending | 100 mm |
| color of the insulation of data wires | white / yellow / blue / orange |
| color of cable sheath | green |
| weight per length | 0.034 kg/m |
| material — of the wire insulation | PE |
| material — of cable sheath | PVC |
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
| ampacity per pin maximum | 0 A |
Ambient conditions
| ambient temperature — during storage | -20 ... +85 °C |
| ambient temperature — during operation | -20 ... +60 °C |
| protection class IP | IP20 |
Certificates/ approvals
| certificate of suitability — CSA approval | No |
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — CCC | No |
| certificate of suitability — IEC approval | Yes |
| certificate of suitability — cUL approval | Yes |
| certificate of suitability — C-Tick | No |
