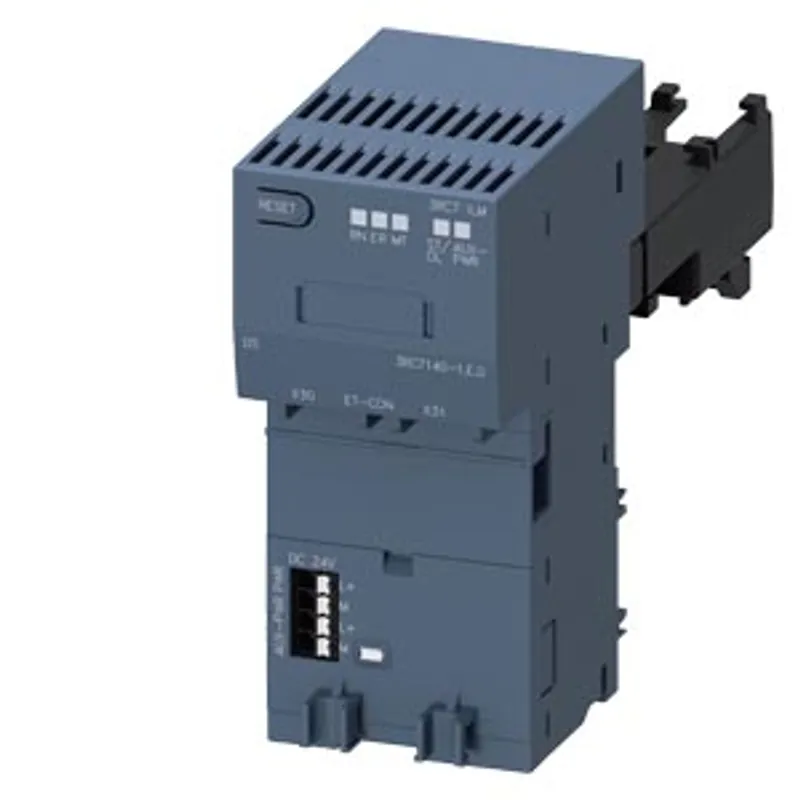

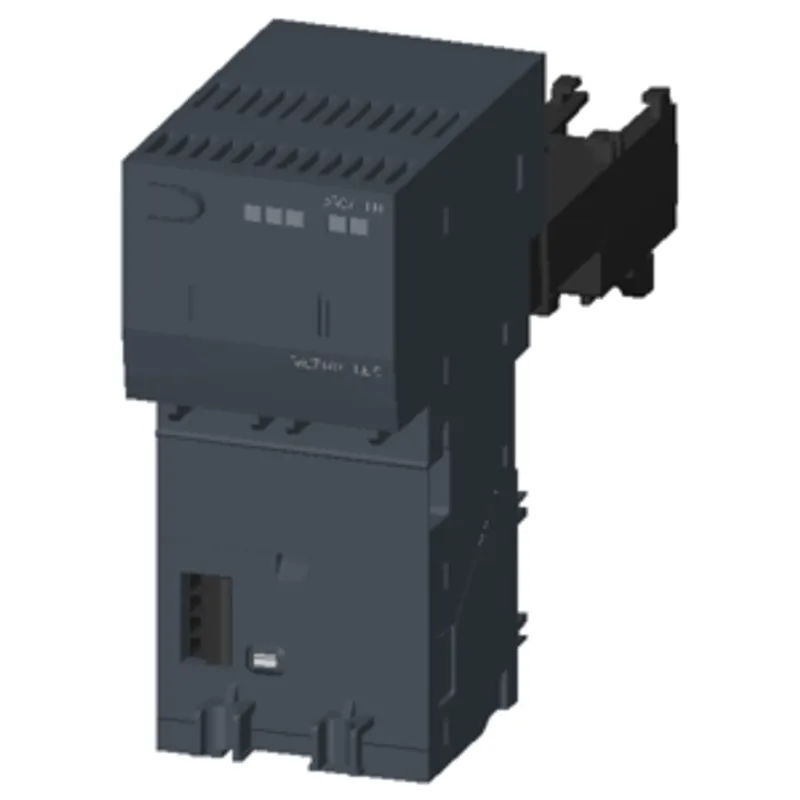

Siemens 3RC7140-1EE10
Intelligent link module direct starter high feature 0.4-4 A up to 690 V AC frame size S00 for 3RV2.1 and…
- MPN
- 3RC7140-1EE10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RC7140-1EE10?
intelligent link module direct starter high feature 0.4-4 A up to 690 V AC frame size S00 for 3RV2.1 and 3RT2.1 for ET 200SP system
Specifications
General
| product brand name | SIRIUS |
| product designation | intelligent link module |
| design of the product | High Feature direct starter |
| product type designation | 3RC7 |
General technical data
| number of monitored phases | 3 |
| suitability for use — direct starter | Yes |
| suitability for use — reversing starter | No |
| product function external reset | Yes |
| product component RESET button | Yes |
| design of the overcurrent release | electronic |
| size of the circuit-breaker | S00 |
| size of contactor can be combined company-specific | S00 |
| product function — remote firmware update | Yes |
| product function — for power supply reverse polarity protection | Yes |
| insulation voltage — rated value | 690 V |
| insulation voltage — for overvoltage category III according to IEC 60664 with degree of pollution 2 rated value | 690 V |
| degree of pollution | 2 |
| overvoltage category | 3 |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | 6 g / 11 ms (3 shocks); 10 g / 6 ms (1000 shocks) |
| mechanical service life (operating cycles) typical | 10 000 000 |
| reference code according to IEC 81346-2 | F |
| continuous current rated value | 4 A |
| Substance Prohibitance (day/month/year) | 06/21/2024 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.24 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -20 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3C3 (without salt spray) |
| relative humidity during operation | 10 ... 95 % |
Main circuit
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 0.4 ... 4 A |
| type of the motor protection | solid-state |
| type of voltage for main current circuit | AC |
| operating voltage — rated value | 690 V |
| operating voltage — at AC-3 rated value maximum | 690 V |
| operating voltage — at AC-3e rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 4 A |
Auxiliary circuit
| designation of the terminal at the auxiliary voltage | AUX-PWR |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| auxiliary voltage at DC rated value | 24 V |
| auxiliary voltage at DC rated value | 20.4 ... 28.8 V |
| inrush current peak for auxiliary voltage at DC at 24 V | 2.5 A |
| duration of inrush current peak for auxiliary voltage at DC at 24 V | 1 ms |
| closing power at the auxiliary voltage in closing operation at DC at 24 V | 4 W |
| holding power at the auxiliary voltage in holding operation at DC at 24 V | 0.9 W |
Protective and monitoring functions
| type of protection function of the overcurrent release | electronic |
| product function — ground fault detection | No |
| product function — phase failure detection | Yes |
| product function — phase sequence recognition | Yes |
| product function — overcurrent detection 1 phase | Yes |
| product function — undercurrent detection 3 phases | Yes |
| product function — undercurrent monitoring | Yes |
| product function — overcurrent and undercurrent monitoring | Yes |
| product function — undercurrent detection 1 phase | Yes |
| product function — overcurrent detection 3 phase | Yes |
| product function — overload protection | Yes |
| product function — overload warning | Yes |
| product function — active current monitoring | No |
| product function — operating hours counter | Yes |
| trip class | CLASS 10E / CLASS 20E; for permissible operating currents, see manual |
| design of the overload release | electronic |
UL/CSA ratings
| operating voltage — according to UL 60947 rated value | 600 V |
| operating voltage — at AC at 60 Hz according to CSA and UL rated value | 600 V |

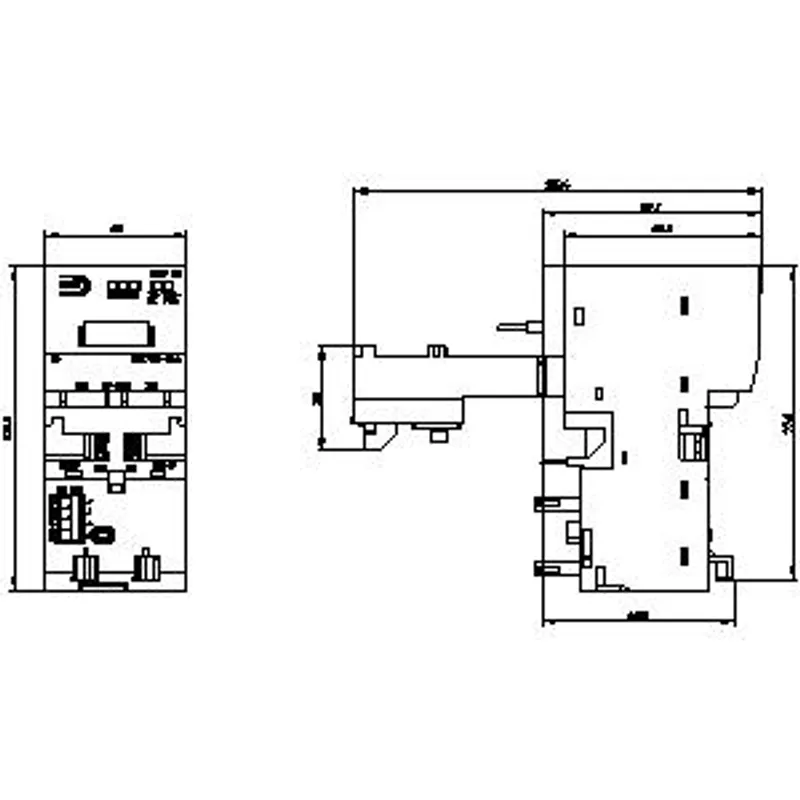

Installation/ mounting/ dimensions
| mounting position | vertical, on horizontal standard mounting rail |
| fastening method | clip-on |
| height | 103 mm |
| width | 45 mm |
| depth | 130 mm |
Connections/ Terminals
| type of electrical connection for main current circuit | spring-loaded terminals |
| type of electrical connection for supply voltage line-side | spring-loaded terminals (push-in) |
| type of connectable conductor cross-sections at the inputs for supply voltage — solid | 0.2 ... 1.5 mm² |
| type of connectable conductor cross-sections at the inputs for supply voltage — finely stranded without core end processing | 0.2 ... 1.5 mm² |
| type of connectable conductor cross-sections at the inputs for supply voltage — finely stranded with core end processing | 0.2 ... 1 mm² |
| type of connectable conductor cross-sections at the inputs for supply voltage for AWG cables solid | 24 ... 16 |
| touch protection on the front according to IEC 60529 | finger-safe |
Communication/ Protocol
| product function bus communication | Yes |
| address space memory of address range — of the inputs | 16 byte |
| address space memory of address range — of the outputs | 2 byte |
| type of electrical connection of the communication interface | RJ45 |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | environment A |
| EMC immunity according to IEC 60947-1 | environment A |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class A for industrial environment |
Supply voltage
| type of voltage of the supply voltage | DC |
| designation of the terminal at supply voltage | PWR |
| supply voltage 1 at DC rated value — minimum permissible | 19.2 V |
| supply voltage 1 at DC rated value — maximum permissible | 28.8 V |
| auxiliary voltage at DC rated value | 20.4 ... 28.8 V |
| supply voltage at DC rated value | 24 V |
| inrush current peak with supply voltage at DC at 24 V | 1.25 A |
| duration of inrush current peak with supply voltage at DC at 24 V | 5 ms |
| power loss [W] at supply voltage at DC at 24 V | 0.5 W |
