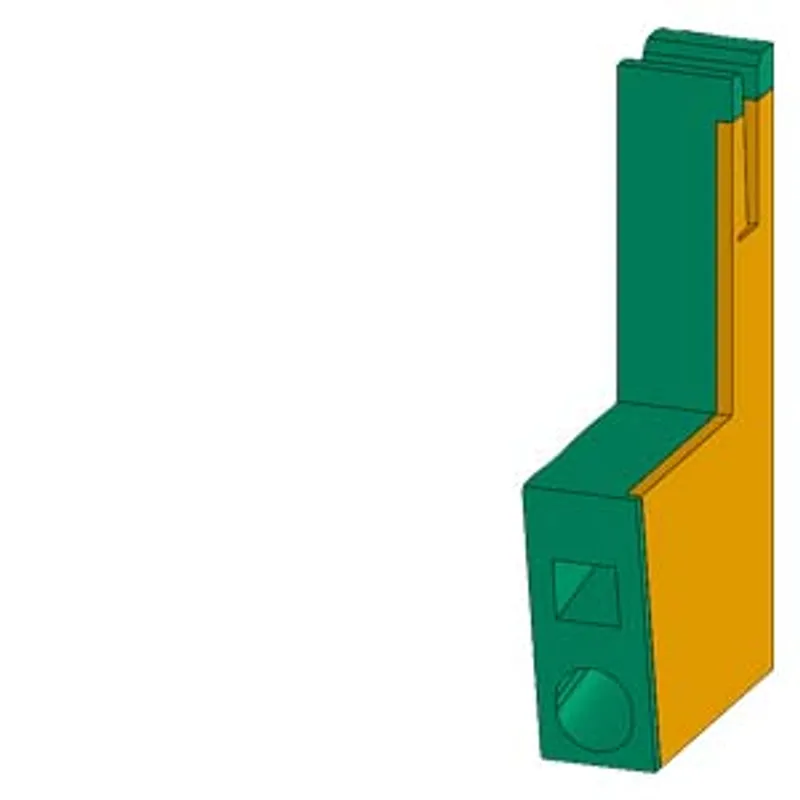

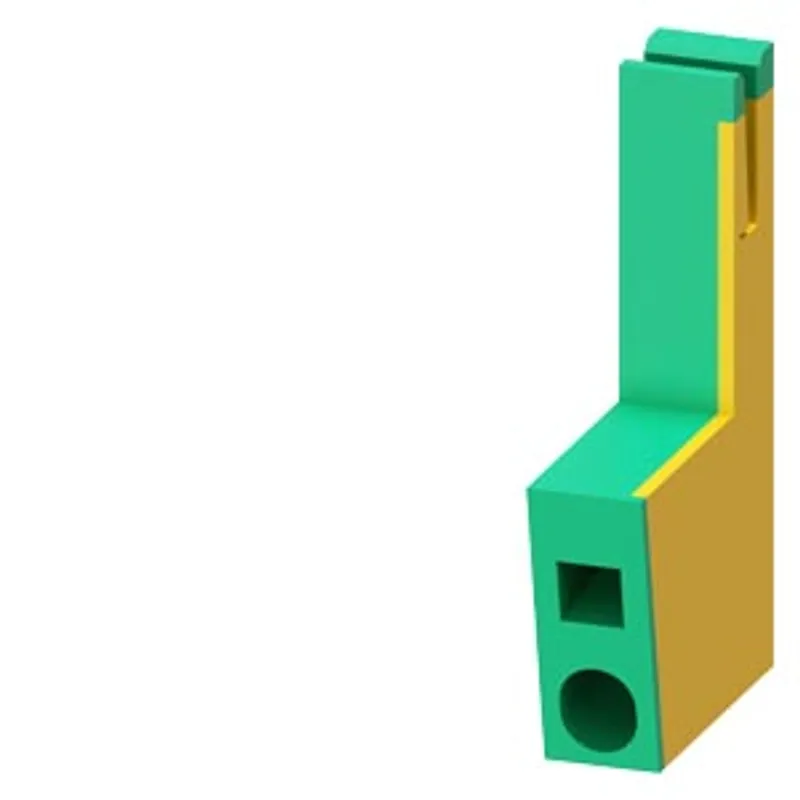

Siemens 3RA6870-3AC
PE tap Connection main circuit: Spring-type terminal
- MPN
- 3RA6870-3AC
- Category
- Infeed system for 3RA6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RA6870-3AC?
PE tap Connection main circuit: Spring-type terminal
Specifications
General technical data
| product brand name | SIRIUS |
| product designation | PE pick-up |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | Finger-safe, for vertical contact |
| degree of pollution | 3 |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during transport | -55 ... +80 °C |
| ambient temperature — during storage | -55 ... +80 °C |
| ambient temperature — during operation | -20 ... +60 °C |
| vibration resistance | f = 4 … 5.8 Hz; d = 15 mm; f = 5.8 … 500 Hz; a = 2 m/s²; 10 cycles |
| shock resistance | Semi-sinusoidal a = 6 m/s² at 10 ms; 3 pos. and 3 neg. Shock in all axes |
| reference code — according to IEC 81346-2 | X |
| reference code — according to EN 61346-2 | X |
Main circuit
| operational current at AC at 400 V rated value | 63 A |

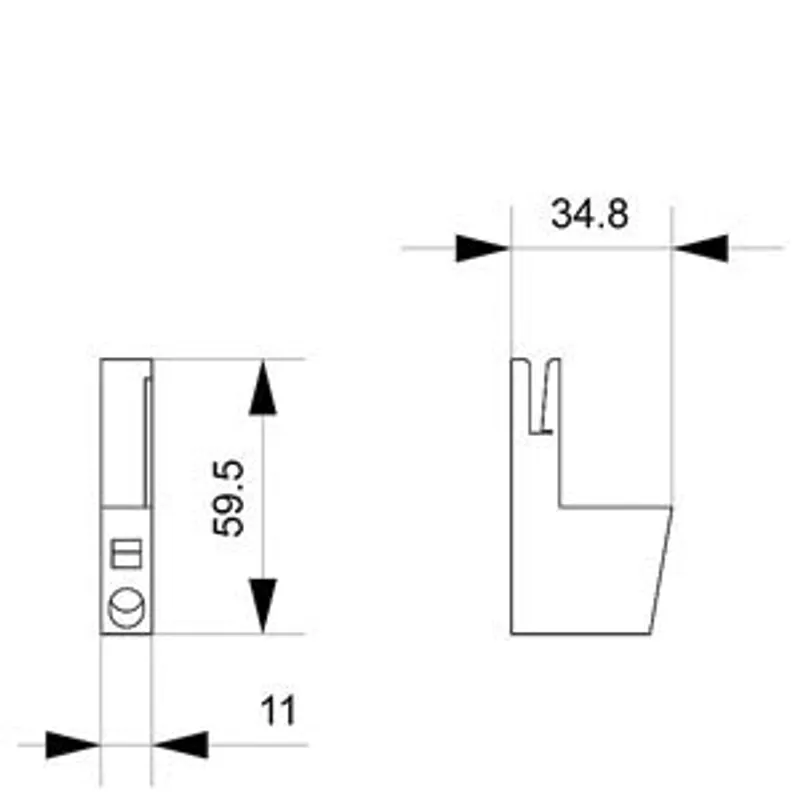

Installation/ mounting/ dimensions
| fastening method | plug-in fixing |
| width | 10 mm |
| height | 60 mm |
| depth | 35 mm |
Connections/ Terminals
| type of electrical connection for main current circuit | spring-loaded terminals |
| stripped length for main contacts | 10 mm |
| type of connectable conductor cross-sections for AWG cables — for main contacts for load-side outgoing feeder | 16 ... 10, 1 x 8 |
