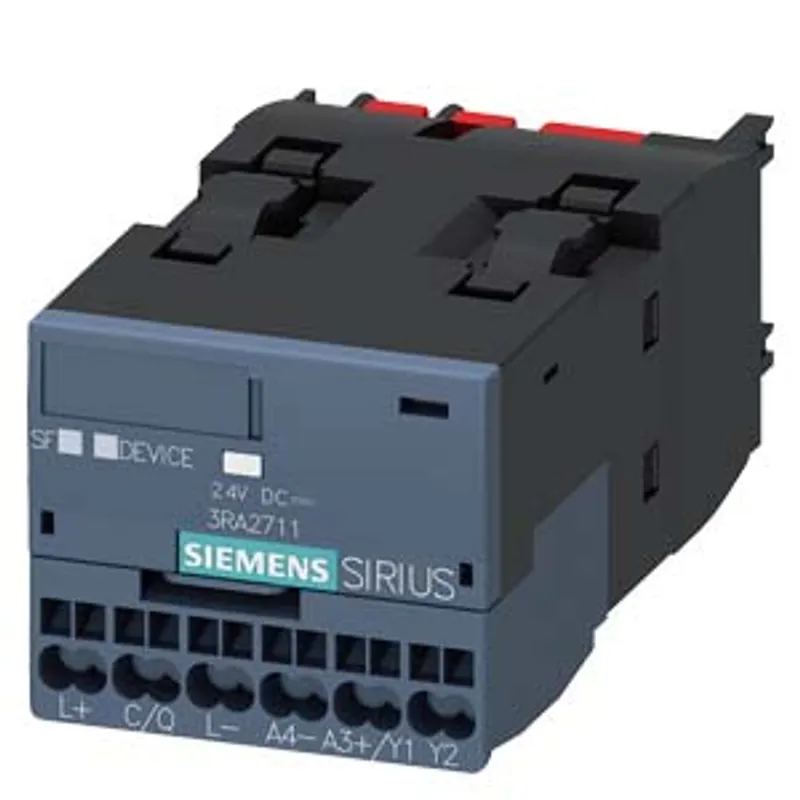

Siemens 3RA2711-2AA00
Function module for IO-Link, direct start, spring-loaded terminal
- MPN
- 3RA2711-2AA00
- Category
- 3RA27 function modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RA2711-2AA00?
function module for IO-Link, direct start, spring-loaded terminal, can be snapped on at the front on communication-capable contactor 3RT20…-…..-0CC0
Specifications
General technical data
| product brand name | Sirius |
| product designation | function module |
| design of the product | IO-Link |
| size of contactor can be combined company-specific | S00, S0, S2, S3 |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| degree of pollution | 3 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| EMC immunity according to IEC 60947-1 | ambience A (industrial sector) |
| EMC emitted interference according to IEC 60947-1 | CISPR11, ambience A (industrial sector) |
| conducted interference due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| conducted interference due to conductor-earth surge according to IEC 61000-4-5 | 1 kV |
| conducted interference due to conductor-conductor surge according to IEC 61000-4-5 | 0.5 kV |
| electrostatic discharge according to IEC 61000-4-2 | 8 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| shock resistance | 11 g / 15 ms |
| vibration resistance | 10 ... 55 Hz / 0.35 mm |
| reference code — according to IEC 81346-2 | K |
| reference code — according to EN 61346-2 | K |
| suitability for use — direct starter | Yes |
| suitability for use — star-delta starter | No |
| suitability for use — reversing starter | No |
Communication/ Protocol
| product function — bus communication | Yes |
| product function — control circuit interface with IO link | Yes |
| product function — control circuit interface with AS-interface | No |
Control circuit/ Control
| design of the surge suppressor | Varistor |
| type of voltage of the control supply voltage | DC |
| control supply voltage 1 at DC rated value | 24 V |

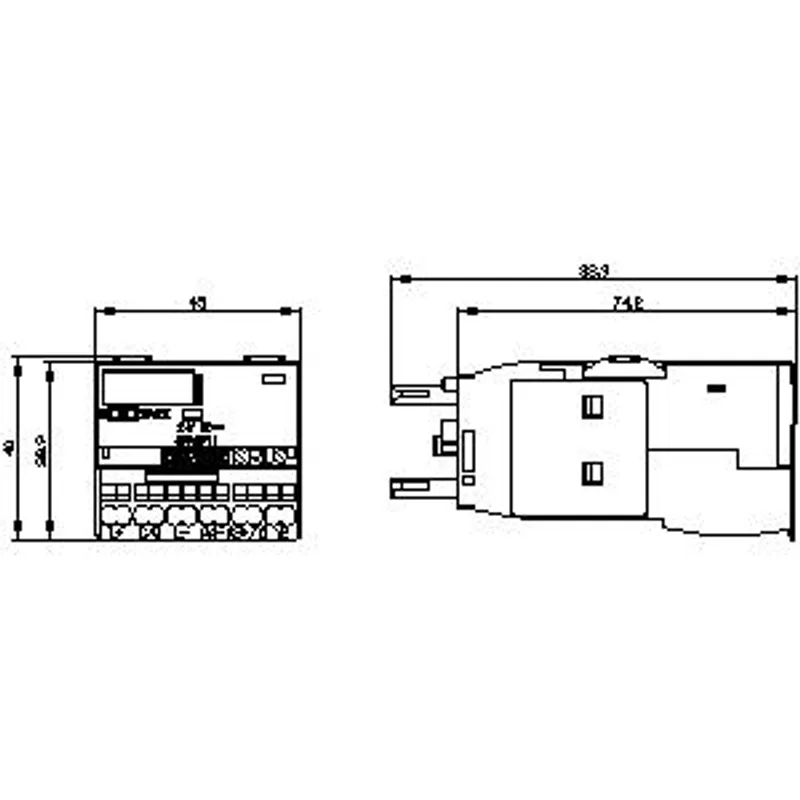

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | can be plugged into contactor |
| width | 45 mm |
| height | 39 mm |
| depth | 75 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded — with core end processing | 1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded — without core end processing | 1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (24 ... 16) |
Certificates/ approvals
| certificate of suitability | CE / UL / CSA |
