Siemens 3RA2110-0BS15-1BB4

Load feeder fuseless, Direct-on-line starting 400 V AC

MPN: 3RA2110-0BS15-1BB4
Category: SIRIUS 3RA2 load feeders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RA2110-0BS15-1BB4?

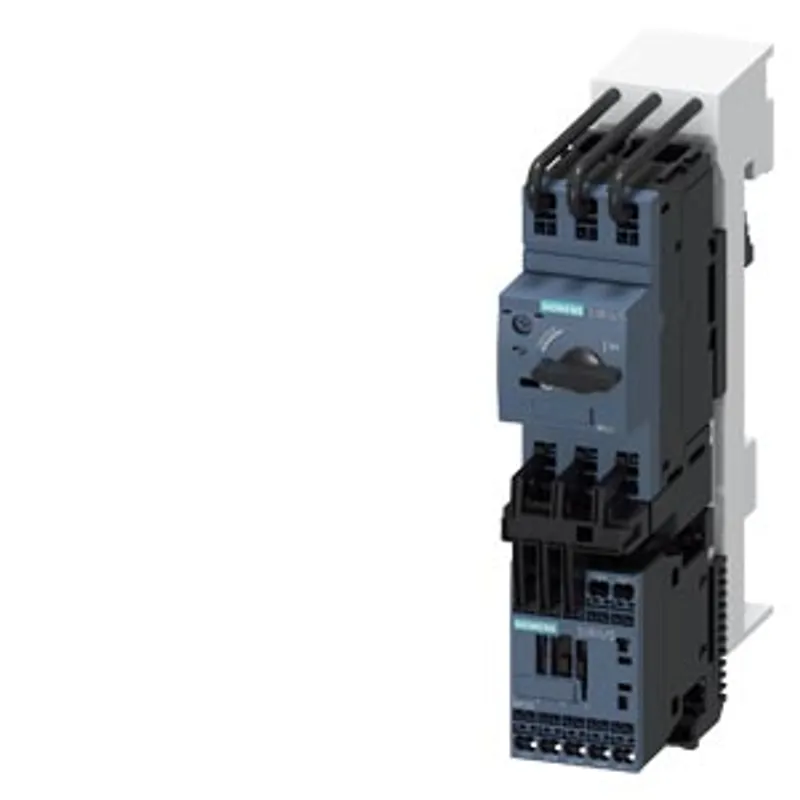

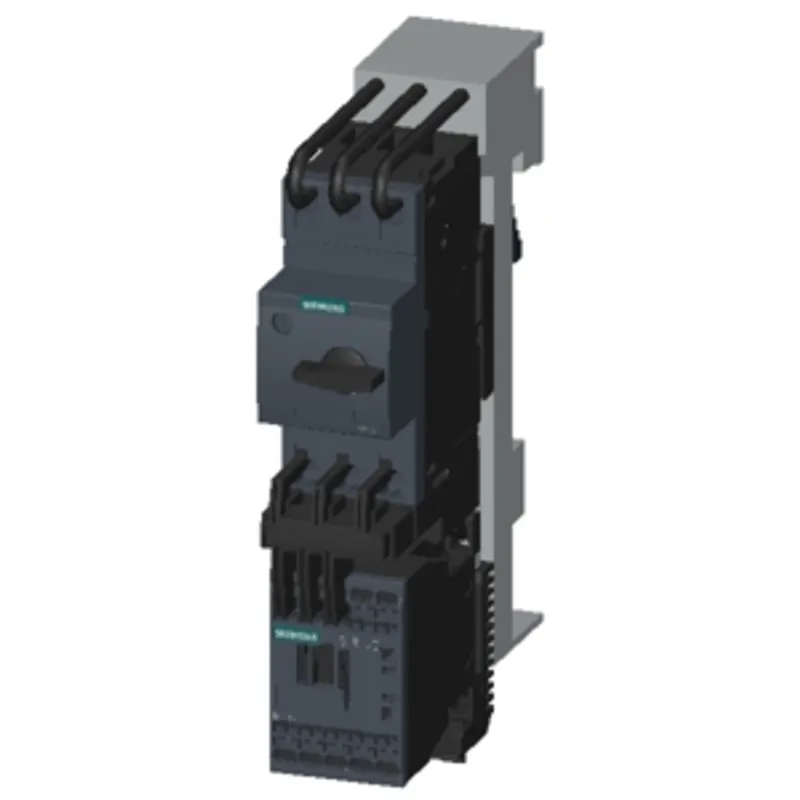

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 0.14...0.20 A 24 V DC Spring-type terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor) Adapter length 200 mm

Specifications

General

product brand name	SIRIUS
product designation	Direct (on-line) starter
design of the product	for 60 mm busbars
product type designation	3RA21
manufacturer's article number — of the supplied contactor	3RT2015-2BB41
manufacturer's article number — of the supplied circuit-breakers	3RV2011-0BA20
manufacturer's article number — of the supplied busbar adapter	8US1251-5DS11
manufacturer's article number — of the supplied link module	3RA2911-2AA00

General technical data

size of the circuit-breaker	S00
size of load feeder	S00
power loss [W] for rated value of the current — at AC in hot operating state per pole	2 W
power loss [W] for rated value of the current — without load current share typical	4 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
degree of protection NEMA rating	other
shock resistance according to IEC 60068-2-27	6 g / 11 ms
mechanical service life (operating cycles) of contactor typical	30 000 000
type of coordination	2
reference code according to IEC 81346-2:2019	Q
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	0.904 kg

Ambient conditions

ambient temperature — during operation	-20 ... +60 °C
ambient temperature — during storage	-50 ... +80 °C
ambient temperature — during transport	-50 ... +80 °C
temperature compensation	-20 ... +60 °C
relative humidity during operation	10 ... 95 %

Main circuit

number of poles for main current circuit	3
design of the switching contact	electromechanical
adjustable current response value current of the current-dependent overload release	0.14 ... 0.2 A
operating voltage — rated value	690 V
operating voltage — at AC-3 rated value maximum	690 V
operating voltage — at AC-3e rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current — at AC-3 at 400 V rated value	0.2 A
operational current — at AC-3e at 400 V rated value	0.2 A
operating power — at AC-3 — at 400 V rated value	60 W
operating power — at AC-3e — at 400 V rated value	60 W

Control circuit/ Control

type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	24 V
holding power of magnet coil at DC	4 W

Auxiliary circuit

product extension auxiliary switch

Yes

Protective and monitoring functions

trip class	CLASS 10
design of the overload release	thermal (bimetallic)
response value current of instantaneous short-circuit trip unit	2.6 A

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor — at 480 V rated value	0.2 A
full-load current (FLA) for 3-phase AC motor — at 600 V rated value	0.2 A

Short-circuit protection

product function short circuit protection	Yes
design of the short-circuit trip	magnetic
conditional short-circuit current (Iq) — at 400 V according to IEC 60947-4-1 rated value	150 000 A

Installation/ mounting/ dimensions

mounting position	vertical
fastening method	for snapping onto 60 mm busbar systems

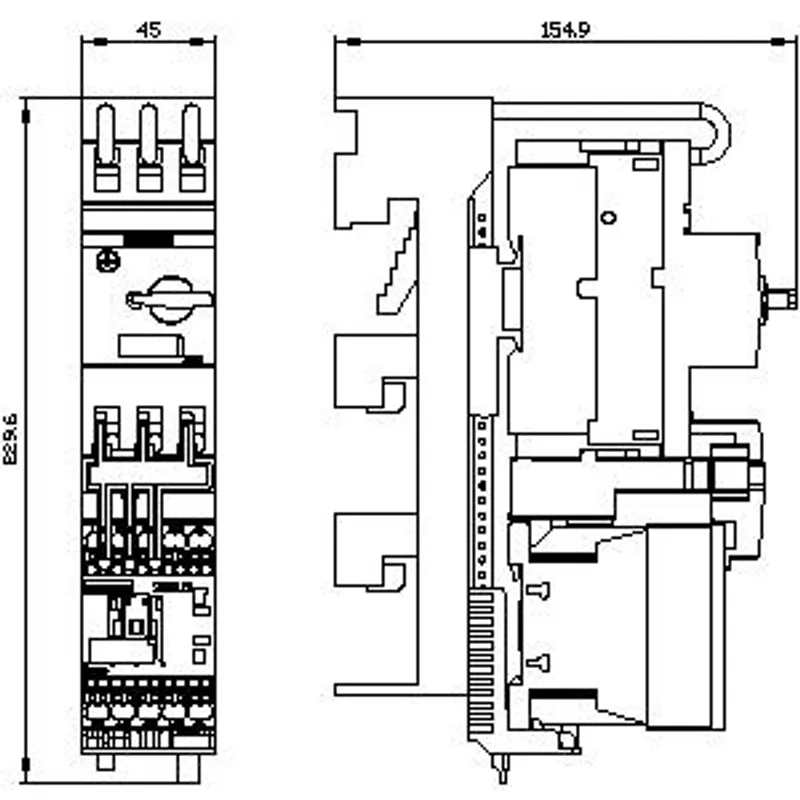

height	230 mm
width	45 mm
depth	155 mm
required spacing — for grounded parts — forwards	20 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	50 mm
required spacing — for grounded parts — at the side	20 mm
required spacing — for grounded parts — downwards	10 mm
required spacing — for live parts — forwards	20 mm
required spacing — for live parts — backwards	0 mm
required spacing — for live parts — upwards	50 mm
required spacing — for live parts — downwards	10 mm
required spacing — for live parts — at the side	20 mm

Connections/ Terminals

type of electrical connection — for main current circuit	spring-loaded terminals
type of electrical connection — for auxiliary and control circuit	spring-loaded terminals

Safety related data

product function suitable for safety function	Yes
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Communication/ Protocol

protocol is supported — PROFINET IO protocol	No
protocol is supported — PROFIsafe protocol	No
protocol is supported AS-Interface protocol	No
