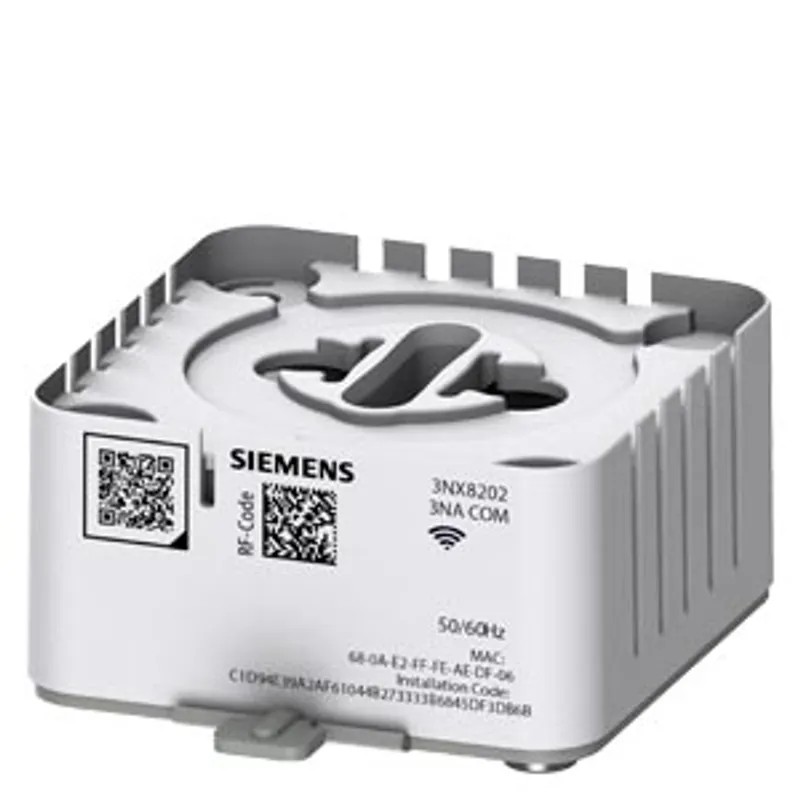

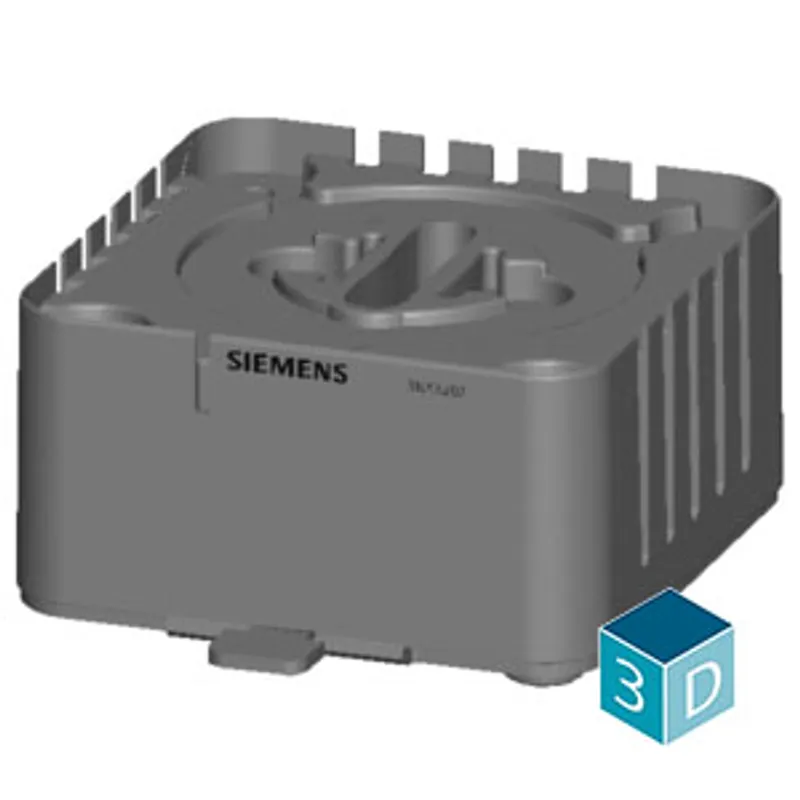

Siemens 3NX8202
3NA COM electr. module, frame size 2, insul.
- MPN
- 3NX8202
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NX8202?
3NA COM electr. module, frame size 2, insul.
Specifications
Model
| product brand name | SENTRON |
| product designation | Electronic module |
| design of the product | for 3NA COM fuses size 2, insulated |
General technical data
| size of fuse system according to EN 60269-1 | NH2 |
| mounting type | insulated grip lugs |
| type of voltage of the operating voltage | AC |
| operational current at AC rated value | 400 A |
| supply voltage — at AC | 400 V |
Protection class
| protection class IP | IP20 |
Dissipation
| power loss [W] | 0.05 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0 W |

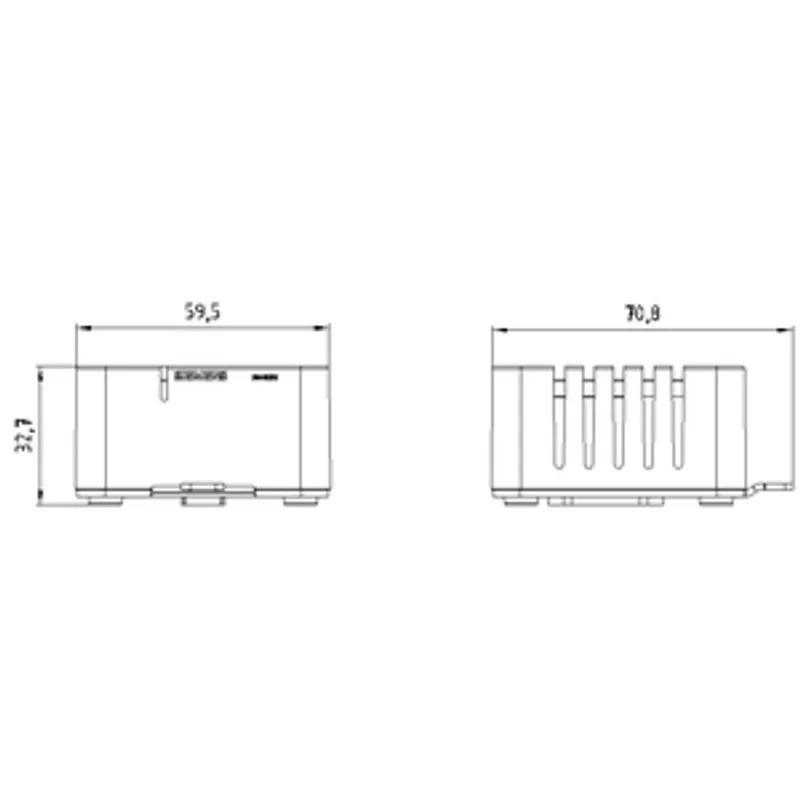

Mechanical Design
| height | 32.7 mm |
| width | 60 mm |
| depth | 71.1 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 154 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage minimum | -40 °C |
| environmental category | -10 °C to +55 °C at 95% relative humidity |
