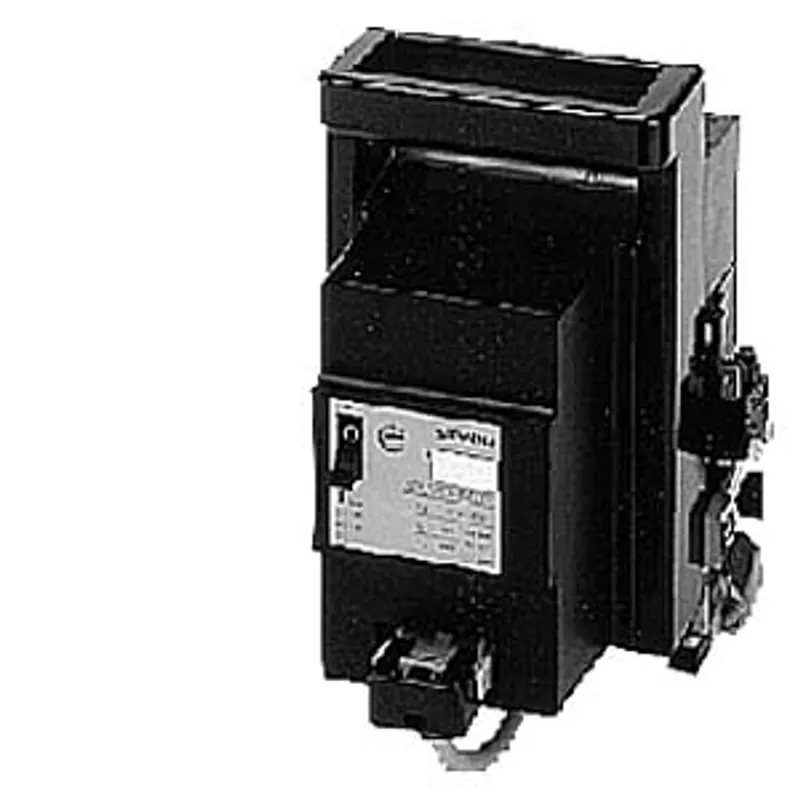

Siemens 3NP5060-0EA26-Z A02

Fuse switch disconnector I=160A, U=690V

MPN: 3NP5060-0EA26-Z A02

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NP5060-0EA26-Z A02?

fuse switch disconnector I=160A, U=690V, 3-pole AS 1 NO + 1 NC for cable lug connection with safety monitoring by 3RV, with AS 2 NO fuse size NH00 with 3-meter connecting cable

Specifications

Model

product brand name	SENTRON
product designation	3NP5 fuse switch disconnector
design of the product	auxiliary switch at the switch disconnector: 1 NO + 1 NC, auxiliary switch at the fuse monitoring device: 2 NC
design of the safety monitoring	by 3RV
design of the actuating element	Cover handle
design of the load switch strip form	No

General technical data

number of poles	3
size of disconnecting link	NH000, NH00
size of fuse link	NH000, NH00
mounting type	Fixed mounting
fuse system	LV HRC fuse

Voltage

insulation voltage rated value	690 V
surge voltage resistance rated value	6 kV
operating voltage — at AC rated value maximum	690 V
operating voltage — at DC rated value	440 V

Protection class

protection class IP on the front

IP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole

2.66 W

Main circuit

operational current rated value

160 A

Suitability

suitability for use main switch	No
suitability for use switch disconnector	Yes
suitability for use EMERGENCY OFF switch	No

Product function

product function fuse monitoring

Yes

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value

1.6 kA

Connections

type of electrical connection	2.5 - 150 mm² DIN 46 234 a. up to 95 mm² DIN 46 235
type of electrical connection — for main current circuit	screw-type terminals

Mechanical Design

height	196 mm
width	134 mm
depth	97.5 mm
fastening method	Mounting plate
fastening method — floor mounting	Yes
fastening method — rail mounting	No
Net Weight	2.093 kg

Environmental conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage — minimum	-50 °C
ambient temperature during storage — maximum	80 °C
