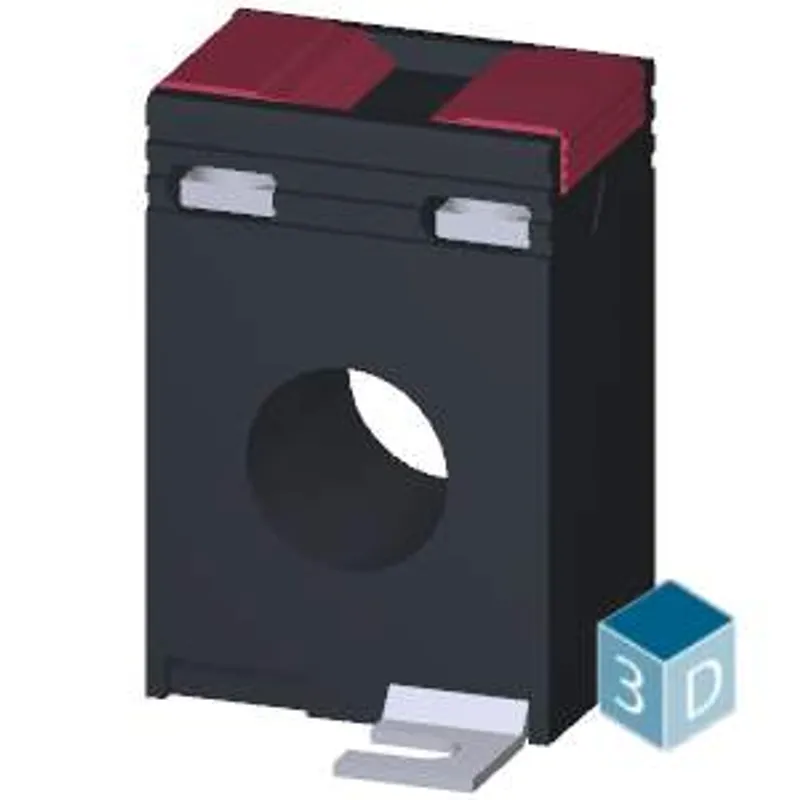

Siemens 3NJ6930-3BE23

Accessories for switch disconnector with fuses, in-line design, for size NH1, calibrated transformer, 150/5 A

MPN: 3NJ6930-3BE23

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NJ6930-3BE23?

accessories for switch disconnector with fuses, in-line design, for size NH1, calibrated transformer, 150/5 A, Cl. 0.5, calibrated, 2.5 VA feed-through opening 15.2 mm

Specifications

Model

product brand name	SENTRON
product designation	Current transformer
design of the product	accessory for switch disconnector with fuses 3NJ6
product quality calibrated	Yes
operating apparent power rated value	2.5 V·A
operating voltage	0.72 kV
insulation voltage rated value	3 kV
designation of overcurrent limiting factor	FS 5
operational current rated value maximum	180 A
current — at input rated value	150 A
current — at output rated value	5 A
accuracy class of the current transformer	class 0.5
value range of the operating frequency	50/60 Hz

Protection class

protection class IP	IP20
suitability for use for outside use	No
suitability for use for interior use	Yes
product feature touch protection	Yes

Short circuit

formula for rated short-time thermal current (Ith) for 1 s according to IEC 61869-2	60 x Ipr
formula for rated dynamic current (Idyn) according to IEC 61869-2	2.5 x Ith or 150 x Ipr

Connections

type of electrical connection at output

screw-type terminals

Mechanical Design

height	65 mm
width	44 mm
depth	48 mm
fastening method	mounting
diameter of inlet opening	15.2 mm
outer diameter of the push-through conductor maximum	15 mm
Net Weight	0.167 kg

Environmental conditions

ambient temperature during operation — minimum	-10 °C
ambient temperature during operation — maximum	55 °C
