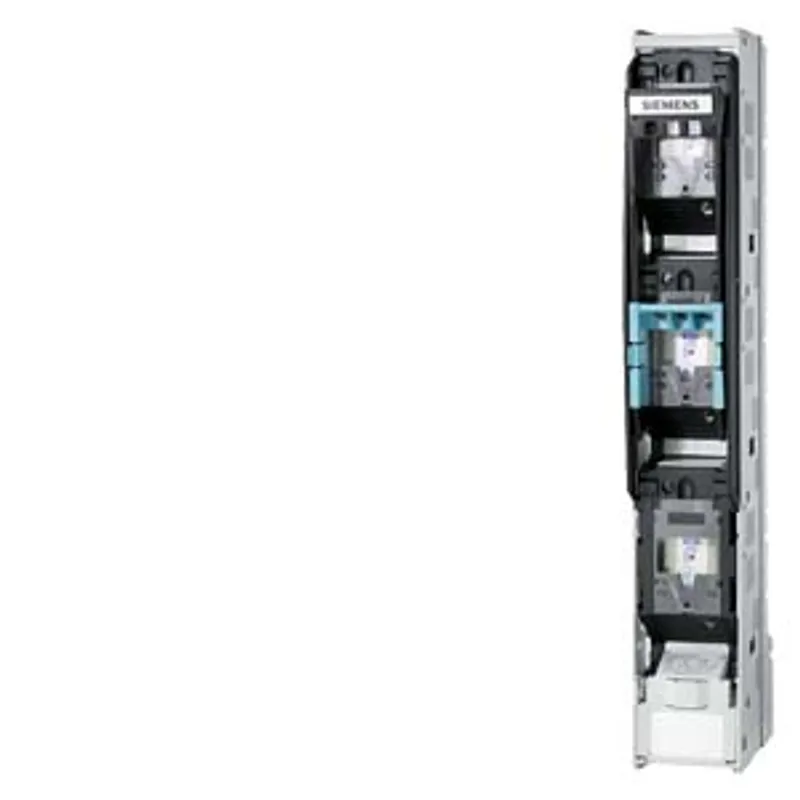

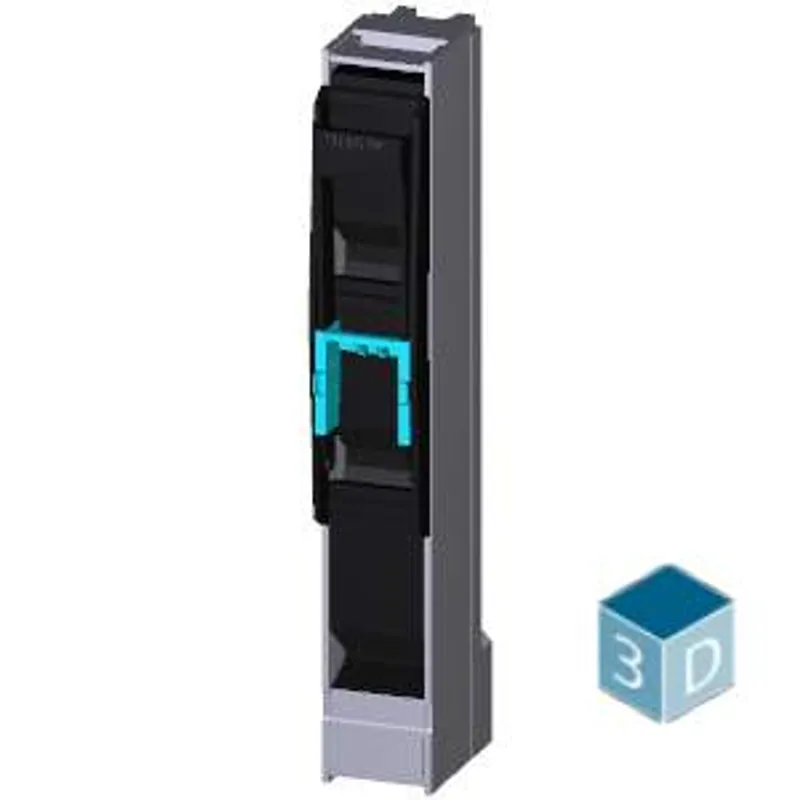

Siemens 3NJ4143-3BJ01
In-line fuse switch disconnector 3-pole selectable, Sz. 3 I=630 A, U=690 V stud terminal M12
- MPN
- 3NJ4143-3BJ01
- Category
- 3-pole, Switchable
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3NJ4143-3BJ01?
In-line fuse switch disconnector 3-pole selectable, Sz. 3 I=630 A, U=690 V stud terminal M12,
Specifications
Model
| product brand name | SENTRON |
| product designation | Fuse switch disconnectors |
| design of the product | in in-line design |
| type of switching contact double breaking switching contact | No |
| design of the auxiliary release | Without |
| design of the safety monitoring | Without |
| design of the load switch strip form | Yes |
General technical data
| number of poles | 3 |
| number of poles note | 3-pole switchable |
| type of device | For busbar system 185 mm |
| size of fuse link | NH2, NH3 |
| fuse system | LV HRC fuse |
Voltage
| insulation voltage rated value | 1 000 V |
| operational current — at AC-21 B at 400 V rated value | 630 A |
| operational current — at AC-21 B at 500 V rated value | 630 A |
| operational current — at AC-21 B at 690 V rated value | 630 A |
| operational current — at AC-23 B at 400 V rated value | 630 A |
| operating voltage — at AC rated value | 690 V |
| operating voltage — at DC rated value | 440 V |
Protection class
| protection class IP on the front | IP30 |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 38.3 W |
| power loss [W] — maximum | 115 W |
Main circuit
| operational current — rated value | 630 A |
| operational current — with capacitive load at 400 V rated value | 361 A |
| operational current — with capacitive load at 500 V rated value | 275 A |
Suitability
| suitability for operation | System protection |
| suitability for use main switch | No |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
| suitability for use maintenance/repair switch | No |
Product details
| product component — voltage trigger | No |
| product component — undervoltage release | No |
| product component — undervoltage release with leading contact | No |
Short circuit
| conditional short-circuit current (Iq) — at AC-21 B at 400 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-21 B at 500 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-21 B at 690 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-22 B at 400 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-22 B at 500 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-22 B at 690 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-23 B at 400 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-23 B at 500 V rated value | 110 kA |
| conditional short-circuit current (Iq) — at AC-23 B at 690 V rated value | 110 kA |
Connections
| arrangement of electrical connectors for main current circuit | Stud terminal |
| type of electrical connection for main current circuit | screw-type terminals |

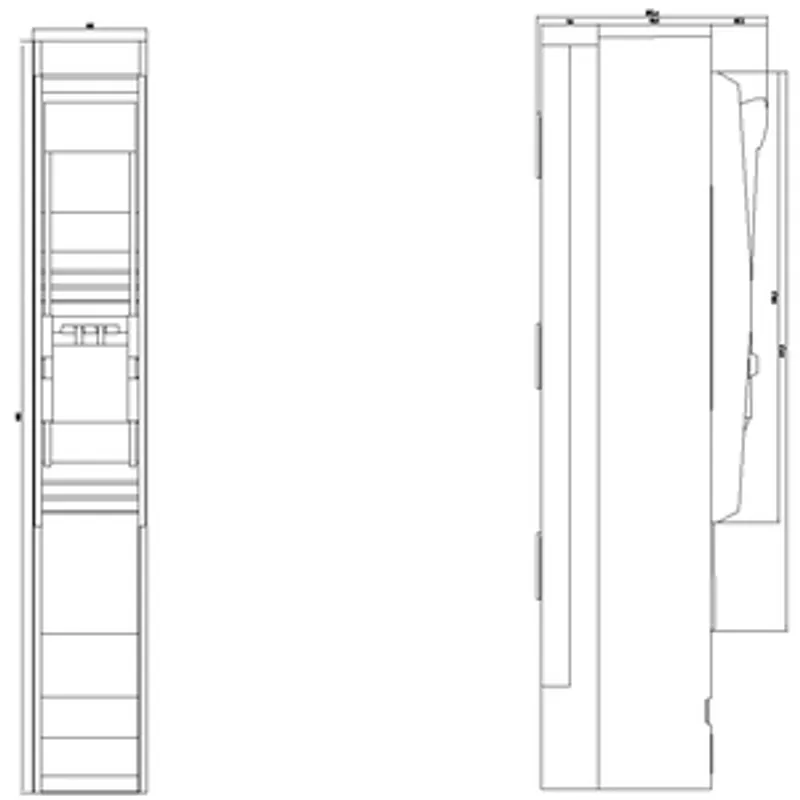

Mechanical Design
| height | 662 mm |
| width | 100 mm |
| depth | 195 mm |
| fastening method | Stehbolzenanschluss, M12 |
| mounting position | vertical, horizontal |
| busbar center-to-center spacing | 185 mm |
| busbar center-to-center spacing — 40 mm | No |
| busbar center-to-center spacing — 50 mm | No |
| busbar center-to-center spacing — 60 mm | No |
| busbar center-to-center spacing — 100 mm | No |
| busbar center-to-center spacing — 185 mm | Yes |
| Net Weight | 5.87 kg |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 55 °C |
No matching specifications
