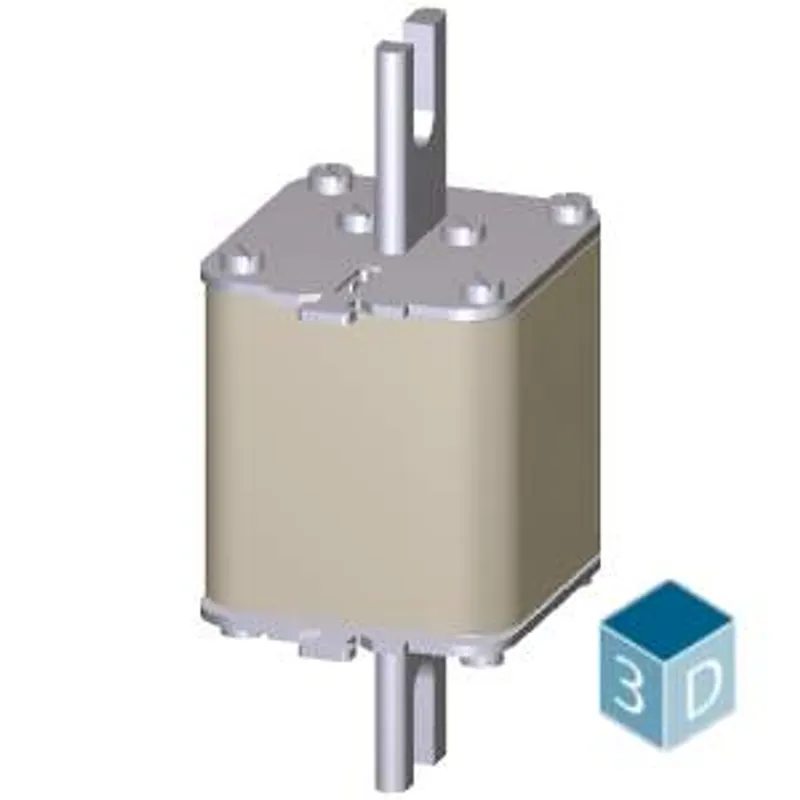

Siemens 3NE4337
SITOR fuse link, with slotted blade contacts, NH2, In: 710 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator
- MPN
- 3NE4337
- Category
- LV HRC Design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NE4337?
SITOR fuse link, with slotted blade contacts, NH2, In: 710 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator
Specifications
Model
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | With slotted blade contacts |
| design of an identification indicator | front indicator |

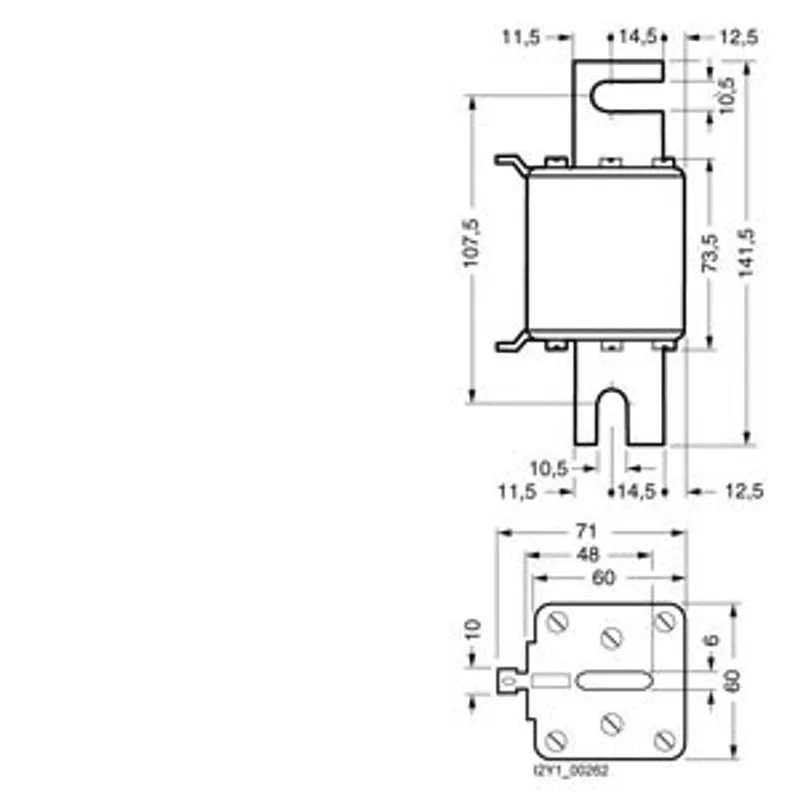

| design of the switching contact | with slotted blade contacts for M10 screw fixing. mounting dimension: 110 mm. or for installation in LV HRC fuse bases or switch disconnectors |
| design of the fuse link | SITOR, LV HRC design |
General technical data
| size of fuse system according to EN 60269-1 | NH2 |
| operating class of the fuse link | aR |
| varying load factor (WL) | 0.85 |
| type of voltage of the operating voltage | AC/DC |
| operating voltage at AC according to UL rated value | 800 V |
Supply voltage
| supply voltage — at AC | 800 V |
| supply voltage — at DC | 440 V |
Breaking Capacity
| switching capacity current — according to IEC 60947-2 rated value | 100 kA |
Dissipation
| power loss [W] | 155 W |
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 155 W |
| power loss [W] — maximum | 155 W |
Product details
| product description | with blade contacts, silver-plated |
| accessories included | no |
Mechanical Design
| mounting position | Any, preferably vertical |
| Net Weight | 813 g |
Environmental conditions
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
