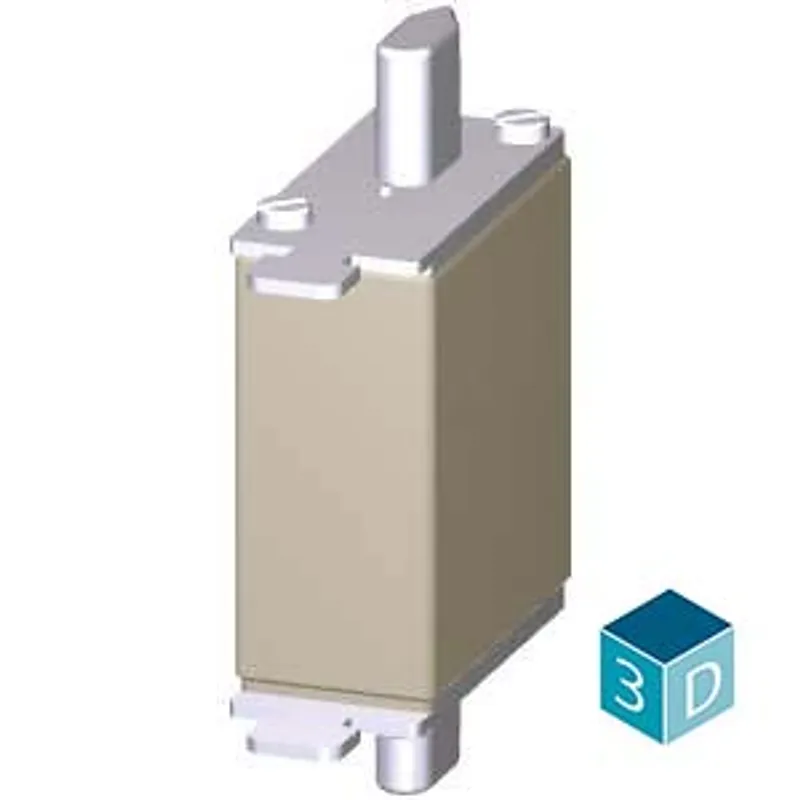

Siemens 3ND1807
LV HRC fuse element, NH000, In: 20 A, aM, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs
- MPN
- 3ND1807
- Category
- LV HRC Fuse Links
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3ND1807?
LV HRC fuse element, NH000, In: 20 A, aM, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs
Specifications
Model
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
General technical data
| size of fuse system according to EN 60269-1 | NH000 |
| operating class of the fuse link | aM |
| mounting type | non-insulated grip lugs |
| type of voltage of the operating voltage | AC |
| operational current at AC rated value | 20 A |
| supply voltage — at AC | 500 V |
Protection class
| protection class IP | IP20, with connected conductors |
Breaking Capacity
| breaking capacity at AC according to IEC 60269 rated value | 120 kA |
Dissipation
| power loss [W] | 1 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1 W |

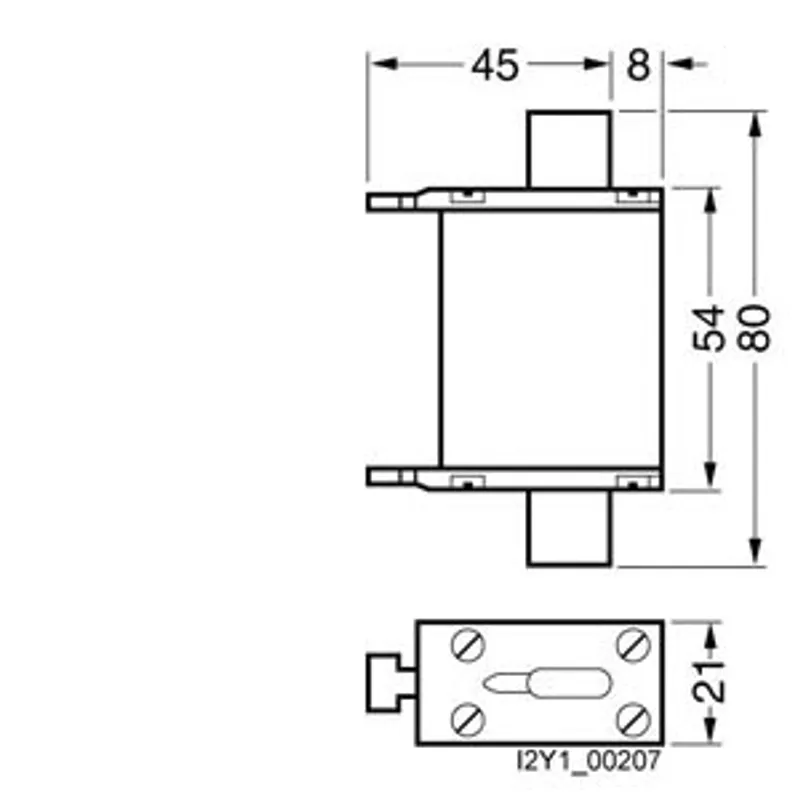

Mechanical Design
| width of the enclosure | 21 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 129 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category during storage | 90% at 20°C |
Certificates
| reference code according to IEC 81346-2 | FC |
