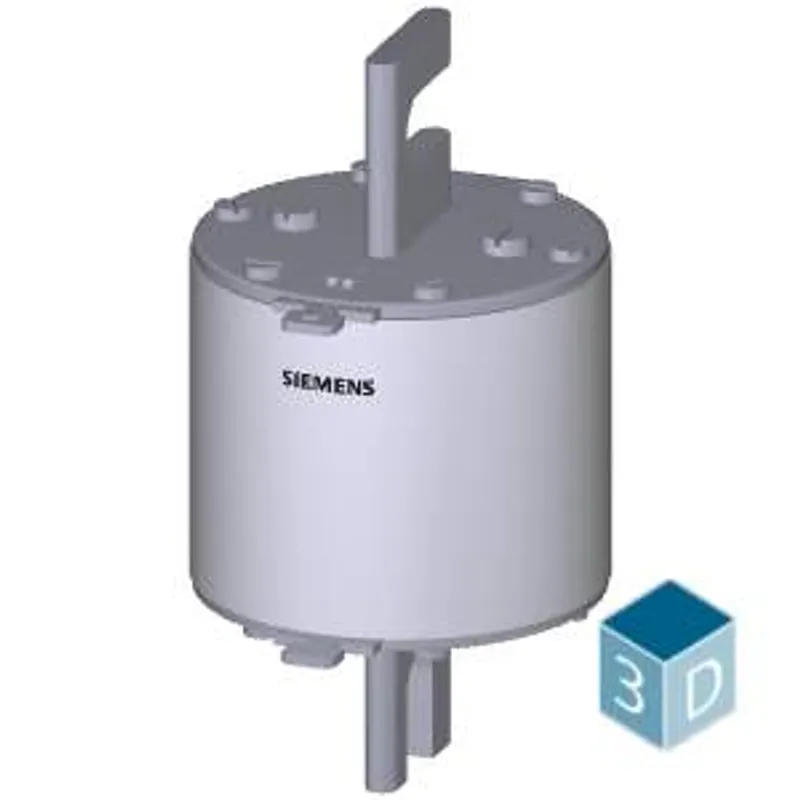

Siemens 3NC3343-1U

SITOR fuse link, with slotted blade contacts, NH3, In: 1250 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator

MPN
3NC3343-1U
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NC3343-1U?

SITOR fuse link, with slotted blade contacts, NH3, In: 1250 A, aR, Un AC: 800 V, Un DC: 440 V, front indicator

Specifications

Model

product brand nameSENTRON
product designationSITOR fuse link
design of the productWith slotted blade contacts
design of an identification indicatorfront indicator
design of the switching contactwith slotted blade contacts for M12 screw fixing. mounting dimension: 110 mm. or for installation in LV HRC fuse bases or switch disconnectors
design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH3
operating class of the fuse linkaR
varying load factor (WL)0.9
type of voltage of the operating voltageAC/DC
operating voltage at AC according to UL rated value800 V

Supply voltage

supply voltage — at AC800 V
supply voltage — at DC440 V

Breaking Capacity

switching capacity current — according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]210 W
power loss [W] — for rated value of the current at AC in hot operating state per pole210 W
power loss [W] — maximum210 W

Product details

product descriptionwith blade contacts, silver-plated
accessories includedno

Mechanical Design

mounting positionAny, preferably vertical
Net Weight1.092 kg

Environmental conditions

ambient temperature during operation — minimum-20 °C
ambient temperature during operation — maximum50 °C
environmental category-20 to +50 at 95% relative humidity
