Siemens

Siemens 3NC2425-0C

SITOR fuse link, with slotted blade contacts, NH3, In: 200 A, gR, Un AC: 500 V, Un DC: 440 V, front indicator

MPN: 3NC2425-0C
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3NC2425-0C?

SITOR fuse link, with slotted blade contacts, NH3, In: 200 A, gR, Un AC: 500 V, Un DC: 440 V, front indicator

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link
design of the product	With slotted blade contacts
design of an identification indicator	front indicator
design of the switching contact	with slotted blade contacts with 2 M10 oblong slots. or for installation in LV HRC fuse bases or fuse switch disconnectors
design of the fuse link	SITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1	NH3
operating class of the fuse link	gR
varying load factor (WL)	0.85
type of voltage of the operating voltage	AC/DC
operating voltage at AC according to UL rated value	500 V

Supply voltage

supply voltage — at AC	500 V
supply voltage — at DC	440 V

Breaking Capacity

switching capacity current — according to IEC 60947-2 rated value

100 kA

Dissipation

power loss [W]	40 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	40 W
power loss [W] — maximum	40 W

Product details

product description	with blade contacts, silver-plated
accessories included	no

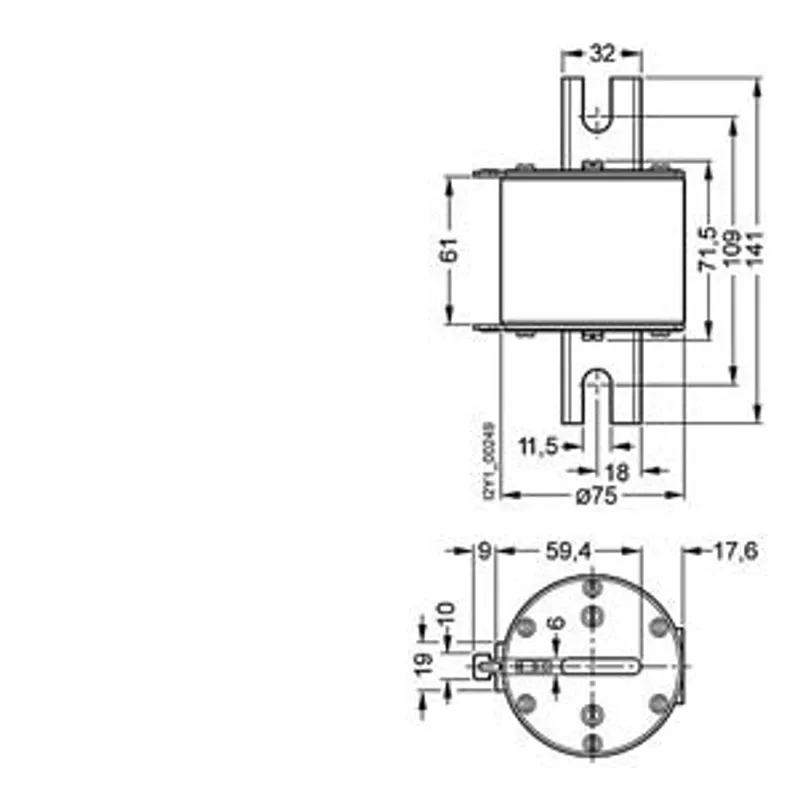

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	1.043 kg

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NC2425-0CPDF
