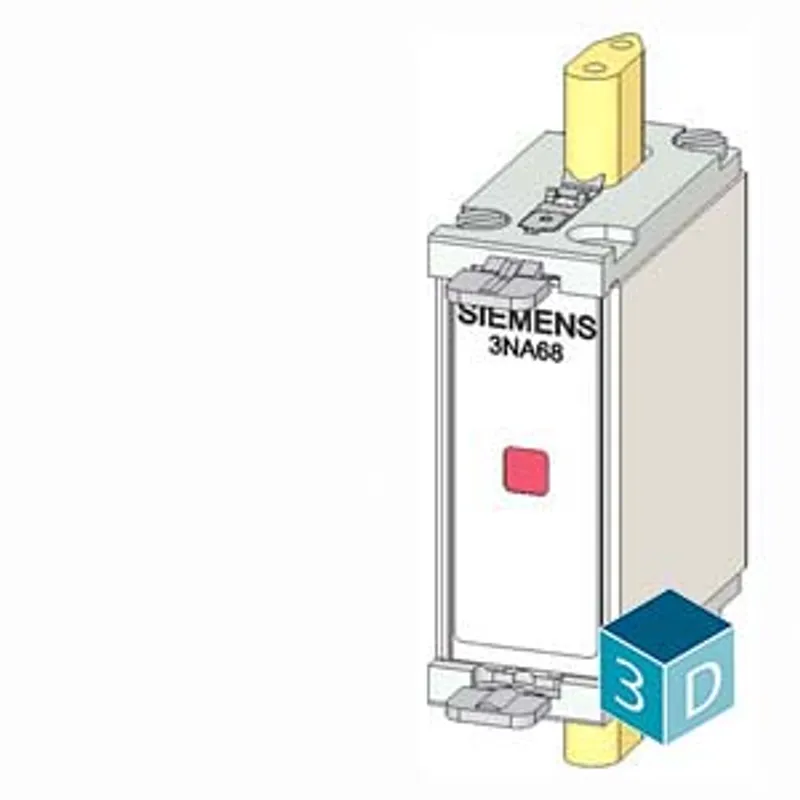

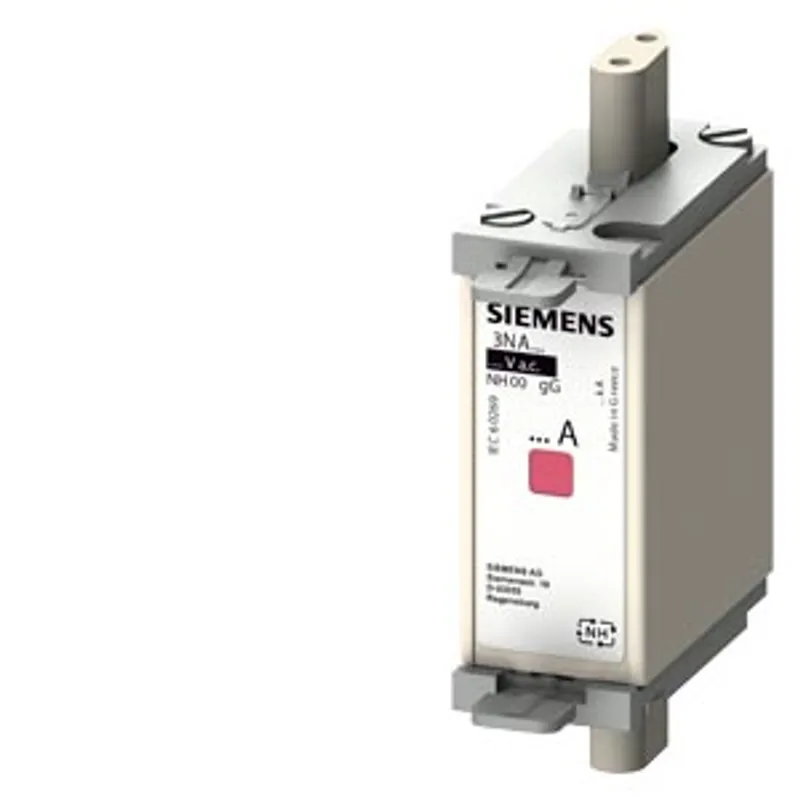

Siemens 3NA6804
LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 500 V, Un DC: 250 V, Combined indicator, Insulated grip lugs
- MPN
- 3NA6804
- Category
- LV HRC Fuse Links
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NA6804?
LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 500 V, Un DC: 250 V, Combined indicator, Insulated grip lugs
Specifications
Model
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Combination alarms |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
General technical data
| size of fuse system according to EN 60269-1 | NH000 |
| operating class of the fuse link | gG |
| mounting type | insulated grip lugs |
| type of voltage of the operating voltage | AC/DC |
| operational current at AC rated value | 4 A |
| supply voltage — at AC | 500 V |
| supply voltage — at DC | 250 V |
Protection class
| protection class IP | IP20, with connected conductors |
Breaking Capacity
| breaking capacity at AC according to IEC 60269 rated value | 120 kA |
| breaking capacity at DC with time constant ≤ 10 ms according to IEC 60269 rated value | 25 kA |
Dissipation
| power loss [W] | 0.9 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1 W |

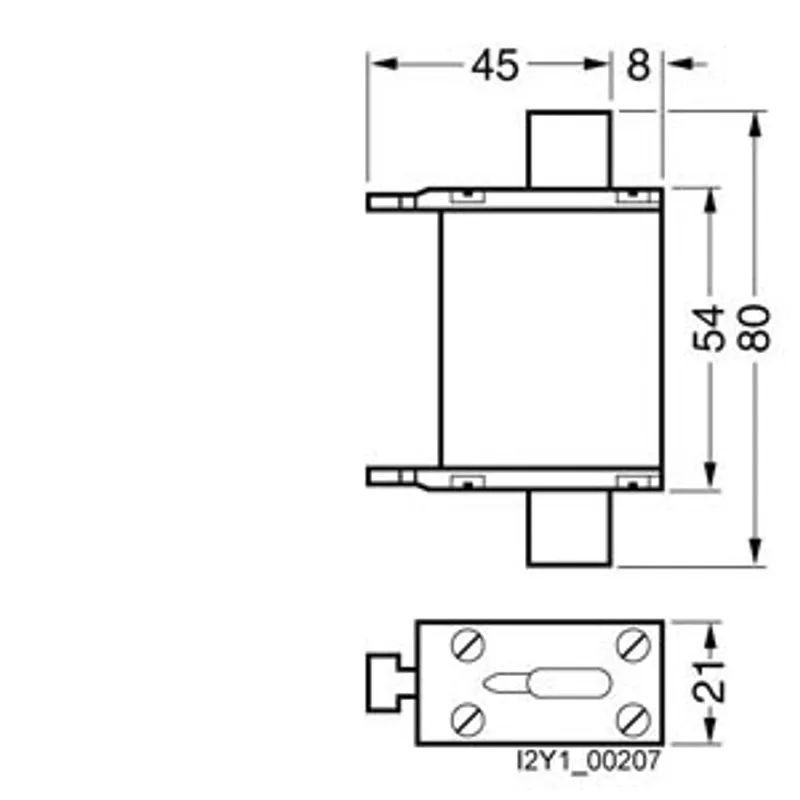

Mechanical Design
| width of the enclosure | 21 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 131 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category during storage | 90% at 20°C |
Certificates
| reference code according to IEC 81346-2 | FC |
