What is the Siemens 3NA6252-4KK01?

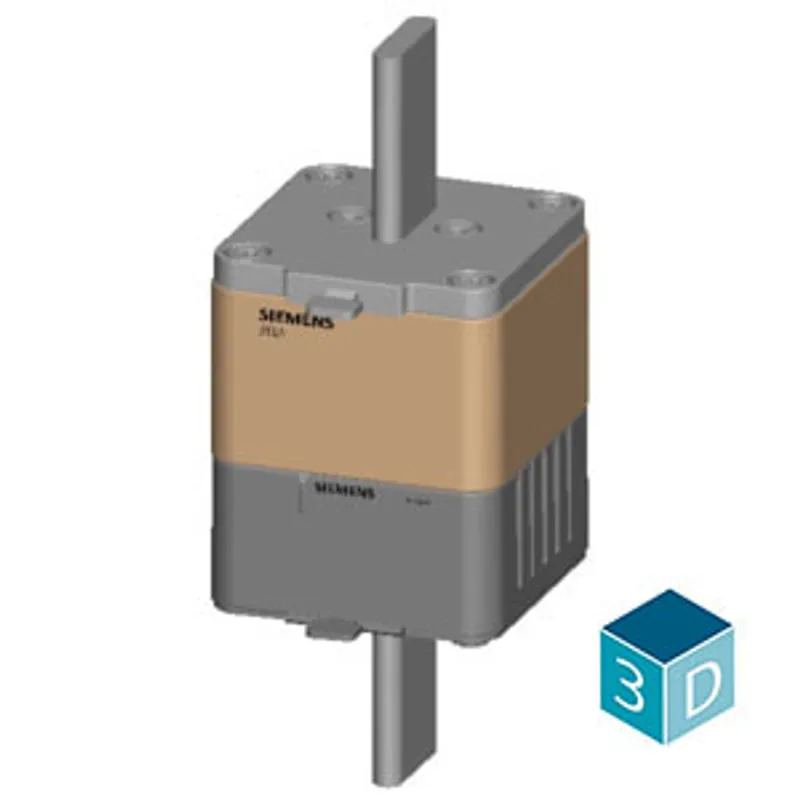

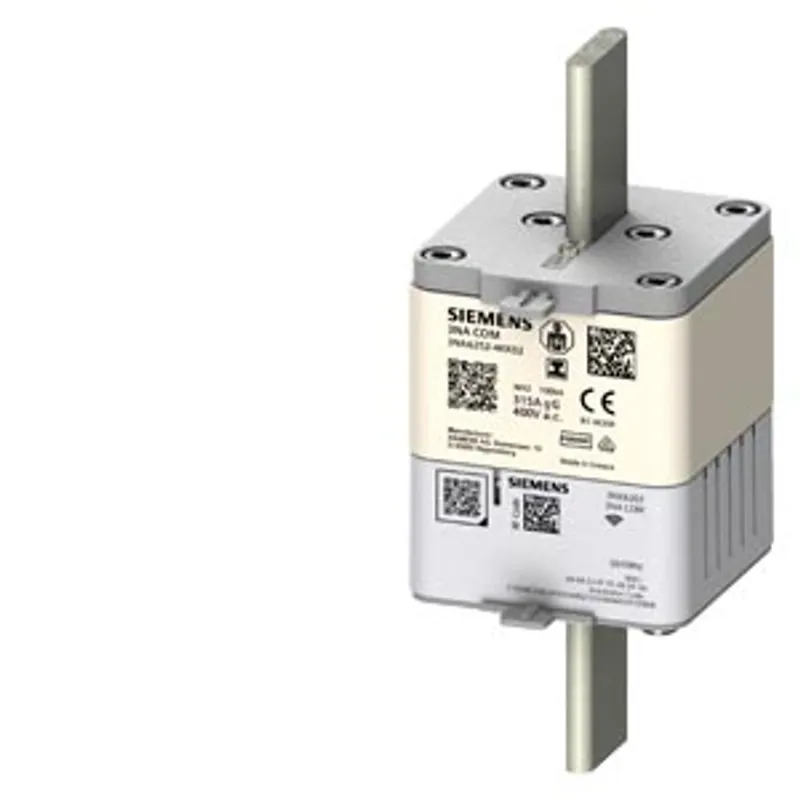

3NA COM LV HRC fuse link with measuring function frame size 2 In 315 A Un 400 V operational class gG with electronic module insulated grip lugs and front indicator please consider radio license! List of countries: see certificate

Specifications

Model

product brand name	SENTRON
product designation	LV HRC fuse link
design of the product	With metering function
design of an identification indicator	Front indicators
design of the switching contact	Non-corroding, silver-plated
design of the fuse link	LV HRC fuse link

General technical data

size of fuse system according to EN 60269-1	NH2
operating class of the fuse link	gG
mounting type	insulated grip lugs
type of voltage of the operating voltage	AC
operational current at AC rated value	315 A
supply voltage — at AC	400 V

Protection class

protection class IP

IP20, with connected conductors

Breaking Capacity

breaking capacity at AC according to IEC 60269 rated value

100 kA

Dissipation

power loss [W]

20.8 W

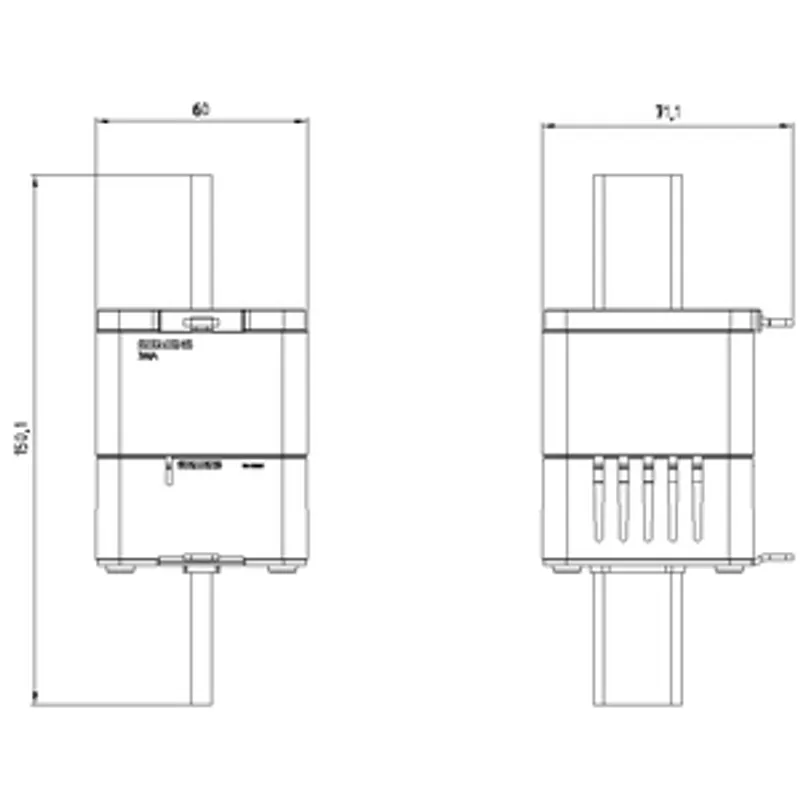

Mechanical Design

height	149 mm
width	60 mm
width of the enclosure	60 mm
depth	72 mm
mounting position	Any, preferably vertical
Net Weight	681 g

Environmental conditions

ambient temperature during operation — minimum	-5 °C
ambient temperature during operation — maximum	45 °C
ambient temperature during storage minimum	-10 °C
environmental category	-20 to +50 at 95% relative humidity

Certificates

reference code according to IEC 81346-2
