Siemens 3NA6240-4KK02
3NA COM LV HRC fuse link with measuring function with wireless communication frame size 2 200 A Un 400 V…
- MPN
- 3NA6240-4KK02
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

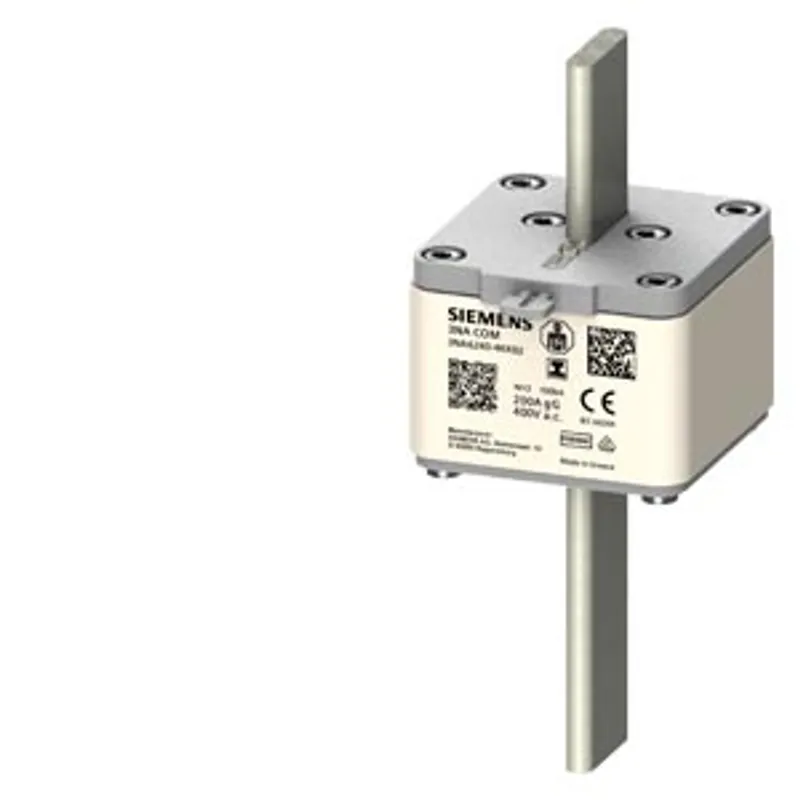

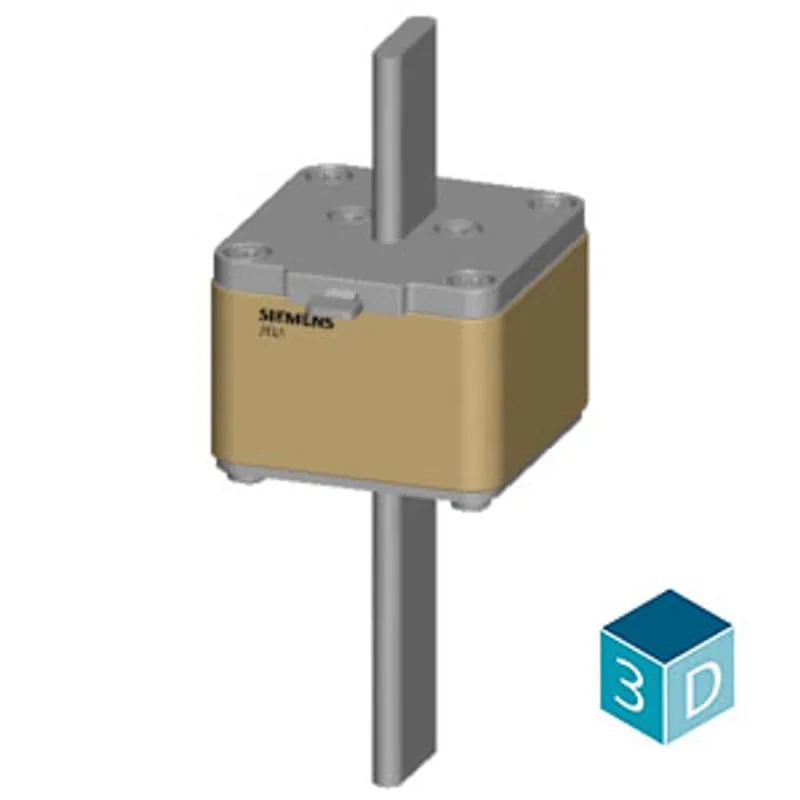

What is the Siemens 3NA6240-4KK02?
3NA COM LV HRC fuse link with measuring function with wireless communication frame size 2 200 A Un 400 V operational class gG without electronic module insulated grip lugs front indicator
Specifications
Model
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With metering function |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
General technical data
| size of fuse system according to EN 60269-1 | NH2 |
| operating class of the fuse link | gG |
| mounting type | insulated grip lugs |
| type of voltage of the operating voltage | AC |
| operational current at AC rated value | 200 A |
| supply voltage — at AC | 400 V |
Protection class
| protection class IP | IP20, with connected conductors |
Breaking Capacity
| breaking capacity at AC according to IEC 60269 rated value | 100 kA |
Dissipation
| power loss [W] | 12.4 W |

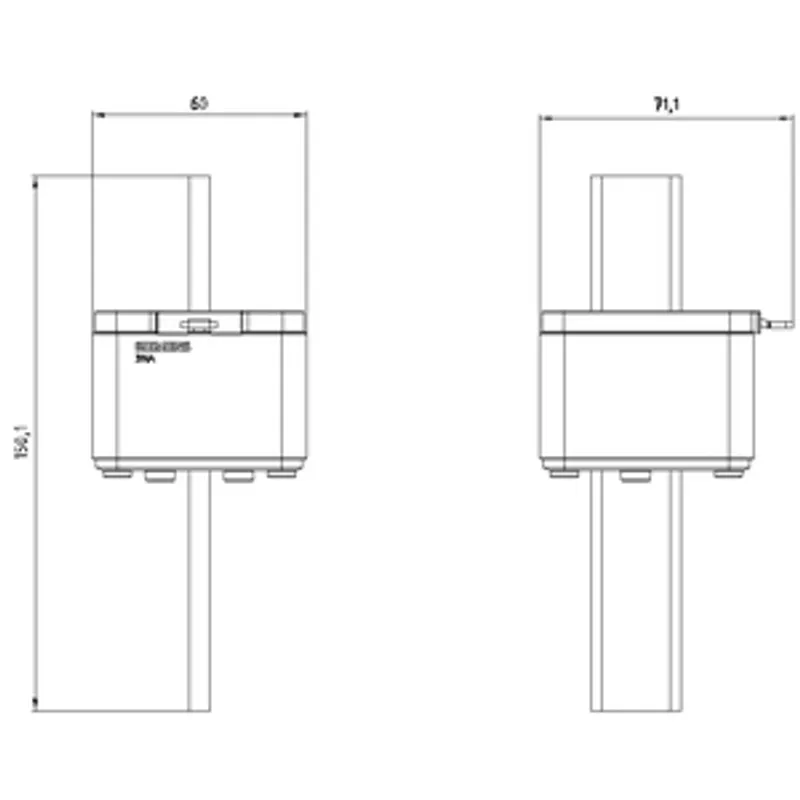

Mechanical Design
| height | 149 mm |
| width | 60 mm |
| width of the enclosure | 60 mm |
| depth | 72 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 620 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 45 °C |
| ambient temperature during storage minimum | -10 °C |
| environmental category | -20 to +50 at 95% relative humidity |
Certificates
| reference code according to IEC 81346-2 | FC |
