Siemens

Siemens 3NA3360-6

LV HRC fuse element, NH3, In: 400 A, gG, Un AC: 690 V, Un DC: 440 V, Front indicator, live grip lugs

MPN: 3NA3360-6
Category: LV HRC Fuse Links

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NA3360-6?

LV HRC fuse element, NH3, In: 400 A, gG, Un AC: 690 V, Un DC: 440 V, Front indicator, live grip lugs

Specifications

Model

product brand name	SENTRON
product designation	LV HRC fuse link
design of the product	With blade contacts
design of an identification indicator	Front indicators
design of the switching contact	Non-corroding, silver-plated
design of the fuse link	LV HRC fuse link

General technical data

size of fuse system according to EN 60269-1	NH3
operating class of the fuse link	gG
mounting type	non-insulated grip lugs
type of voltage of the operating voltage	AC/DC
operational current at AC rated value	400 A
supply voltage — at AC	690 V
supply voltage — at DC	440 V

Protection class

protection class IP

IP20, with connected conductors

Breaking Capacity

breaking capacity at AC according to IEC 60269 rated value	120 kA
breaking capacity at DC with time constant ≤ 10 ms according to IEC 60269 rated value	25 kA

Dissipation

power loss [W]	33.2 W
power loss [W] for rated value of the current at AC in hot operating state per pole	33 W

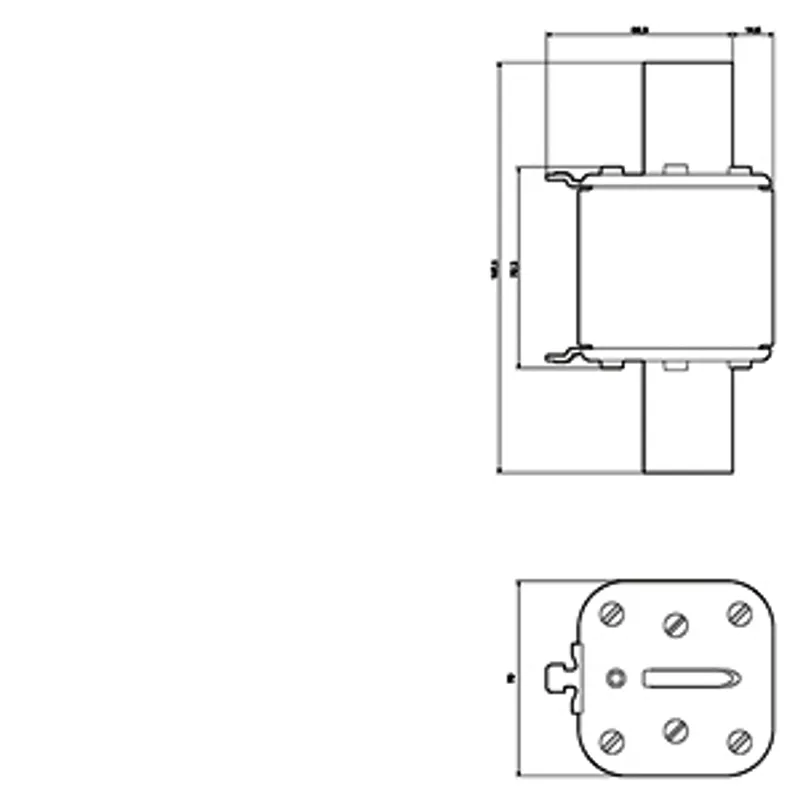

Mechanical Design

width of the enclosure	71.2 mm
mounting position	Any, preferably vertical
Net Weight	1.056 kg

Environmental conditions

ambient temperature during operation — minimum	-5 °C
ambient temperature during operation — maximum	40 °C
environmental category	-20 to +50 at 95% relative humidity
environmental category during storage	90% at 20°C

Certificates

reference code according to IEC 81346-2
