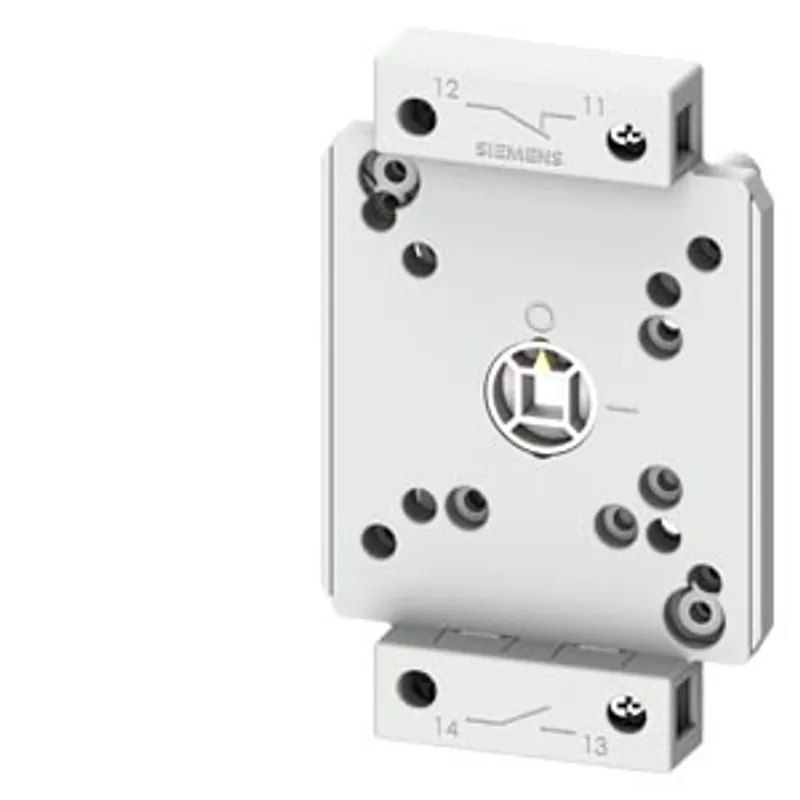

Siemens 3LD9280-5D

Auxiliary switch, 1NO+1NC 20-150ms leading, for four-hole front mounting

MPN: 3LD9280-5D
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3LD9280-5D?

Auxiliary switch, 1NO+1NC 20-150ms leading, for four-hole front mounting, for floor mounting and encapsulated switches, for 16 - 125A, accessory for main and emergency off switch 3LD2 and for repair and maintenance switch 3LD2 with EMC plate

Specifications

Model

product brand name	SENTRON
product designation	Auxiliary switch, leading
design of the product	accessories for 3LD2 main and EMERGENCY-OFF switches, 3LD2 maintenance and repair switches with EMC shield plate
operational current — at AC-15 at 110 V rated value	6 A
operational current — at AC-15 at 230 V rated value	3 A
operational current — at AC-15 at 500 V rated value	1.5 A
operational current — at DC-13 at 24 V rated value	1 A
suitability for use	for 3LD2 16 A - 125 A floor mounting, in the housing, with EMC shield plate and for 3LD5 UL 30 A - 60 A floor mounting, for four-hole front mounting
special product feature	NO: lagging during switching ON, leading (20 … 150 ms) during switching OFF the 3LD switch. NC: leading during switching ON, lagging during switching OFF the 3LD switch

Accessories

accessories	front auxiliary switch, 1 NO + 1 NC
tightening torque with screw-type terminals — minimum	1.1 N·m
tightening torque with screw-type terminals — maximum	1.1 N·m
type of connectable conductor cross-sections for auxiliary contacts — solid	1x (0.75 ... 2.5 mm²)
type of connectable conductor cross-sections for auxiliary contacts — finely stranded with core end processing	1x (0.75 ... 2.5 mm²)
type of connectable conductor cross-sections for auxiliary contacts — stranded	1x (0.75 ... 2.5 mm²)

Mechanical Design

Net Weight

96 g
