Home / Siemens / Accessories / Siemens 3LD9200-5BF

Siemens

Siemens 3LD9200-5BF

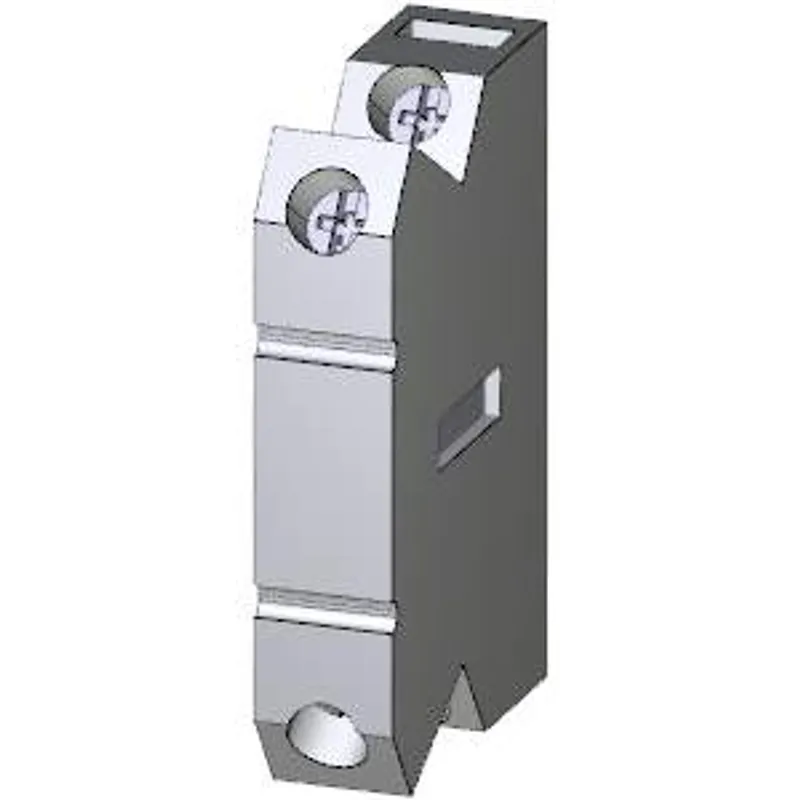

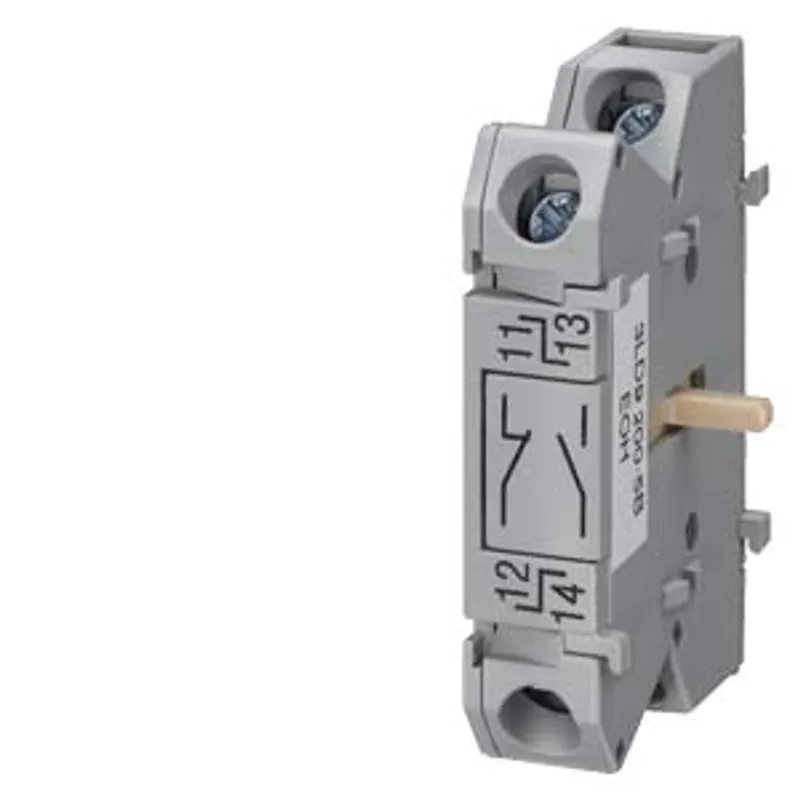

Auxiliary switch, 1 NO+1 NC, with gold-plated contacts

MPN: 3LD9200-5BF
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3LD9200-5BF?

Auxiliary switch, 1 NO+1 NC, with gold-plated contacts, accessory for main and emergency switching-off 3LD2 front mounting and for molded case switch 3LD5 UL front mounting

Specifications

Model

product brand name	SENTRON
product designation	auxiliary switch
design of the product	accessories for 3LD2 main and EMERGENCY-OFF switches, front mounting
operational current — at AC-15 at 110 V rated value	6 A
operational current — at AC-15 at 230 V rated value	3 A
operational current — at AC-15 at 500 V rated value	1.4 A
operational current — at DC-13 at 24 V rated value	4 A
suitability for use	for 3LD2 front mounting and 3LD5 UL front mounting
special product feature	NO: lagging during switching ON, leading during switching OFF the 3LD switch. NC: leading during switching ON, lagging during switching OFF the 3LD switch

Accessories

accessories	auxiliary switch, 1 NO + 1 NC, with gold-plated contacts
tightening torque with screw-type terminals — minimum	0.8 N·m
tightening torque with screw-type terminals — maximum	1.2 N·m
type of connectable conductor cross-sections for auxiliary contacts — solid	2x (0.75-2.5 mm²), 1x 4 mm²
type of connectable conductor cross-sections for auxiliary contacts — finely stranded with core end processing	2x (0.75-2.5 mm²), 1x 4 mm²
type of connectable conductor cross-sections for auxiliary contacts — stranded	2x (0.75-2.5 mm²), 1x 4 mm²

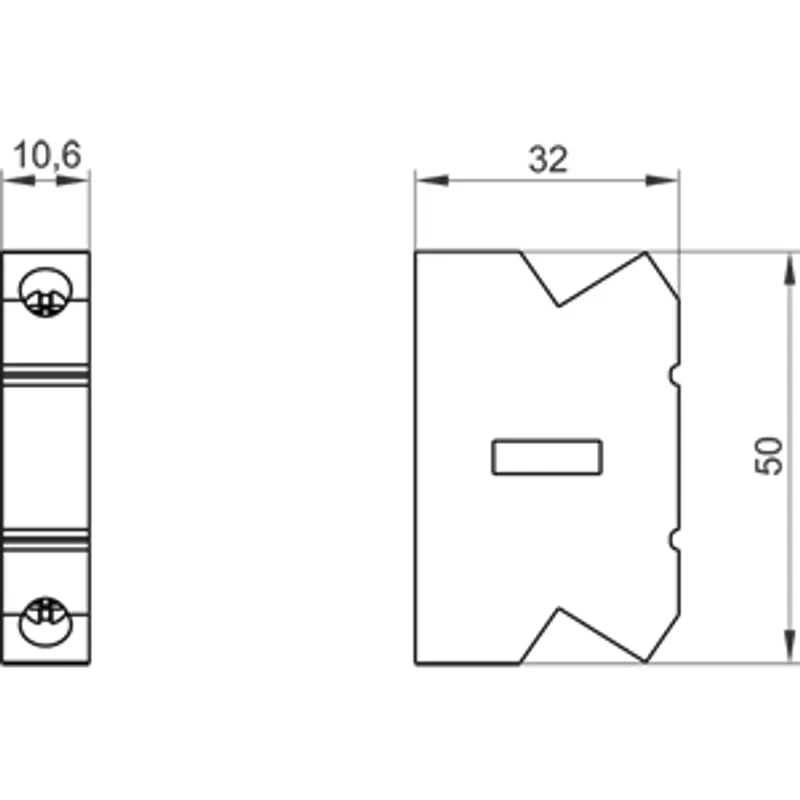

Mechanical Design

Net Weight

21 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3LD9200-5BFPDF

3LD9200-5BF: frequently asked questions

When can 3LD9200-5BF be shipped?

3LD9200-5BF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3LD9200-5BF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3LD9200-5BF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3LD9200-5BF, subject to availability and destination.
