Siemens

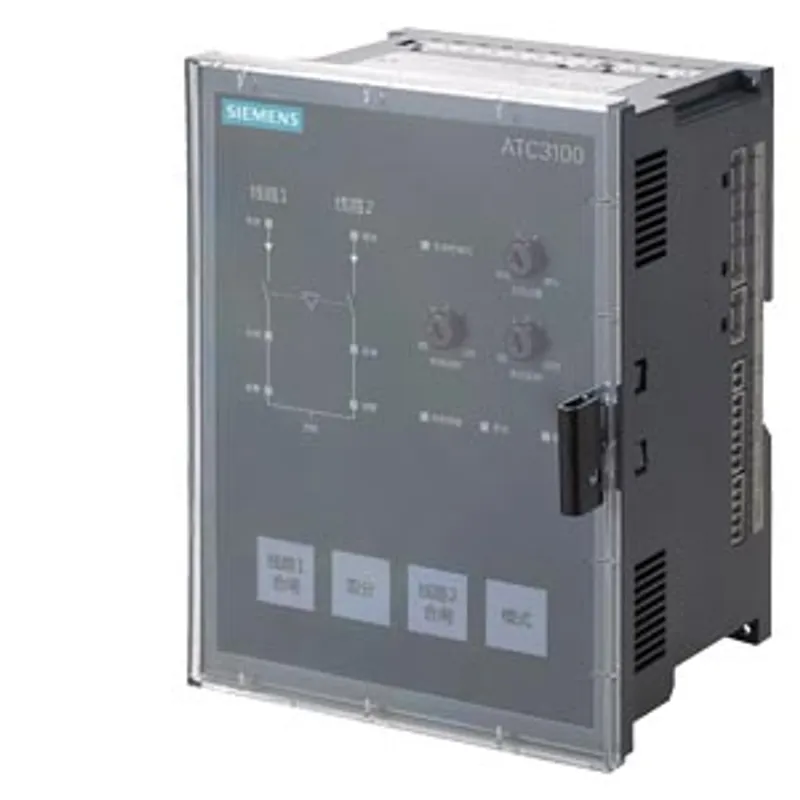

Siemens 3KC9000-8CL10

Transfer control device ATC 3100 CN

MPN: 3KC9000-8CL10
Category: SENTRON Transfer Control Devices

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3KC9000-8CL10?

Transfer control device ATC 3100 CN

Specifications

Model

product brand name	SENTRON
product designation	Accessories for transfer switching equipment
design of the product	ATC3100, Chinese version

General technical data

size of the circuit-breaker	3KC9
operating temperature — minimum	-25 °C
operating temperature — maximum	70 °C
switchover time of the control device	0.5 s
overvoltage category	4

Voltage

insulation voltage rated value	400 V
overvoltage category according to IEC 61010	CAT IV

Protection class

protection class IP — on the front	IP41
protection class IP — rear side	IP20

Main circuit

operating frequency rated value — minimum	50 Hz
operating frequency rated value — maximum	60 Hz

Product details

product component of the hardware real time clock backup battery	No
product feature of enclosure material	Thermoplast Bayblend FR3010

Accessories

accessories

Transfer control devices

Inputs Outputs

number of digital inputs	0
relay design	6 relays: 1 NO, 8 A, 250 V AC, 3 relays: 1 NO, 16 A, 250 V AC
input delay time	0.4 s

Number

number of monitored phases

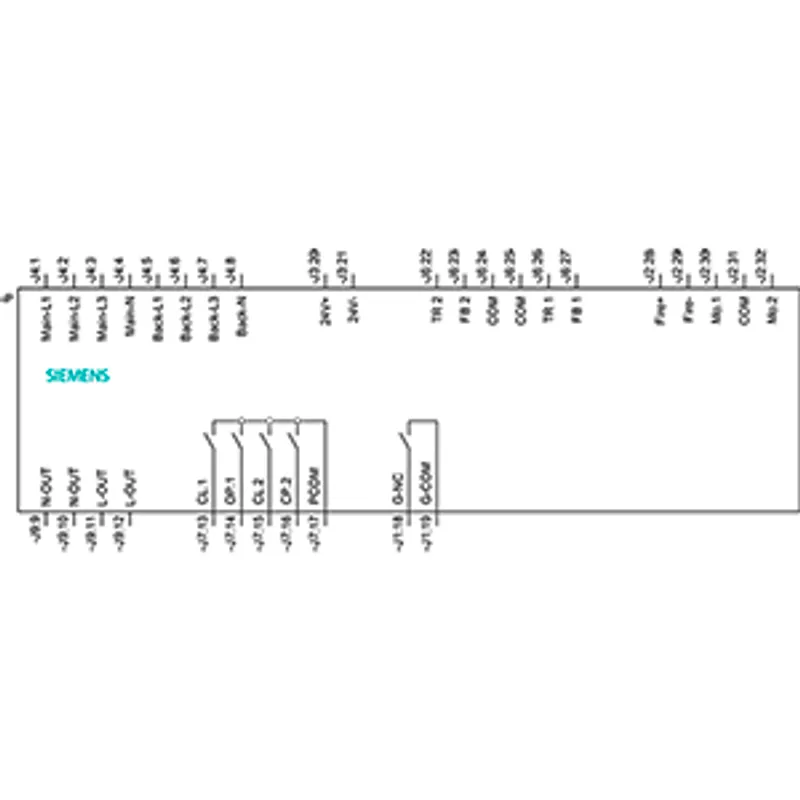

Connections

connectable conductor cross-section — minimum	0.5 mm²
connectable conductor cross-section — maximum	2.5 mm²
AWG number as coded connectable conductor cross section — minimum	20
AWG number as coded connectable conductor cross section — maximum	12
tightening torque with screw-type terminals — minimum	0.2 N·m
tightening torque with screw-type terminals — maximum	0.4 N·m
type of electrical connection	Removable/pluggable

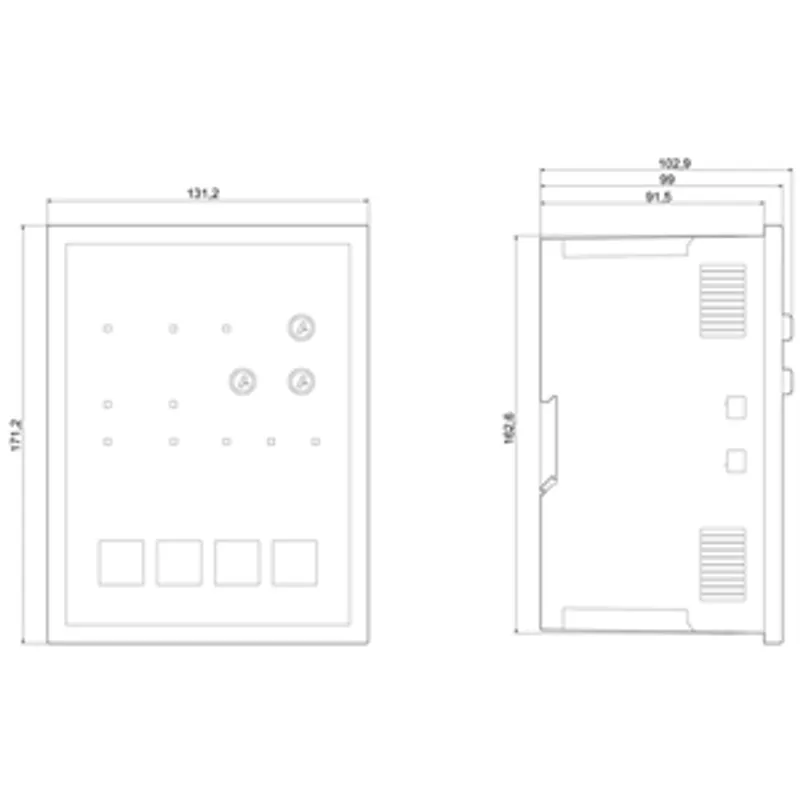

Mechanical Design

height	171.2 mm
width	131.2 mm
depth	99 mm
Net Weight	1.1 kg

Environmental conditions

relative humidity reference value	95 %
ambient temperature during storage — minimum	-40 °C
ambient temperature during storage — maximum	80 °C
