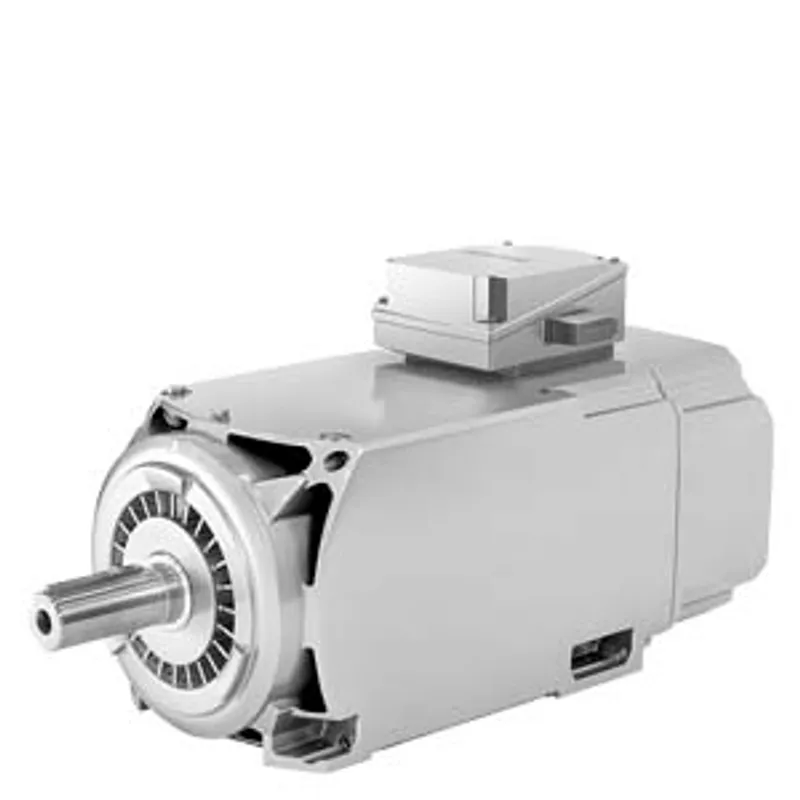

Siemens 1PH8284-1DD40-9BU1-Z G50+N3L+X23 – SIMOTICS M compact asynchronous motor 1000 r/min, 243 kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Servo & Motion Control |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1PH8284-1DD40-9BU1-Z G50+N3L+X23 be shipped?
1PH8284-1DD40-9BU1-Z G50+N3L+X23 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1PH8284-1DD40-9BU1-Z G50+N3L+X23 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1PH8284-1DD40-9BU1-Z G50+N3L+X23 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8284-1DD40-9BU1-Z G50+N3L+X23, subject to availability and destination.
SIMOTICS M compact asynchronous motor 1000 r/min, 243 kW, 2321 Nm, 490 A, 335 V; 1150 r/min, 280 kW, 2325 Nm, 475 A, 400 V; 475 A, 400 V 2299 Nm, 475 A, 460 V open-circuit ventilation, degree of protection IP23; incremental encoder 22-bit with DRIVE-CLiQ interface type of construction IM B3 (IMV6) vibration class: R/A; shaft and flange accuracy: R terminal box NDE right G50: measuring nipple for SPM with M8 threaded adapter X23: paint finish in RAL 5005 (signal blue); N3L: special shaft extension D95 mm x 100 mm special motor as per offer no. 10088130 (AGT:688076)
