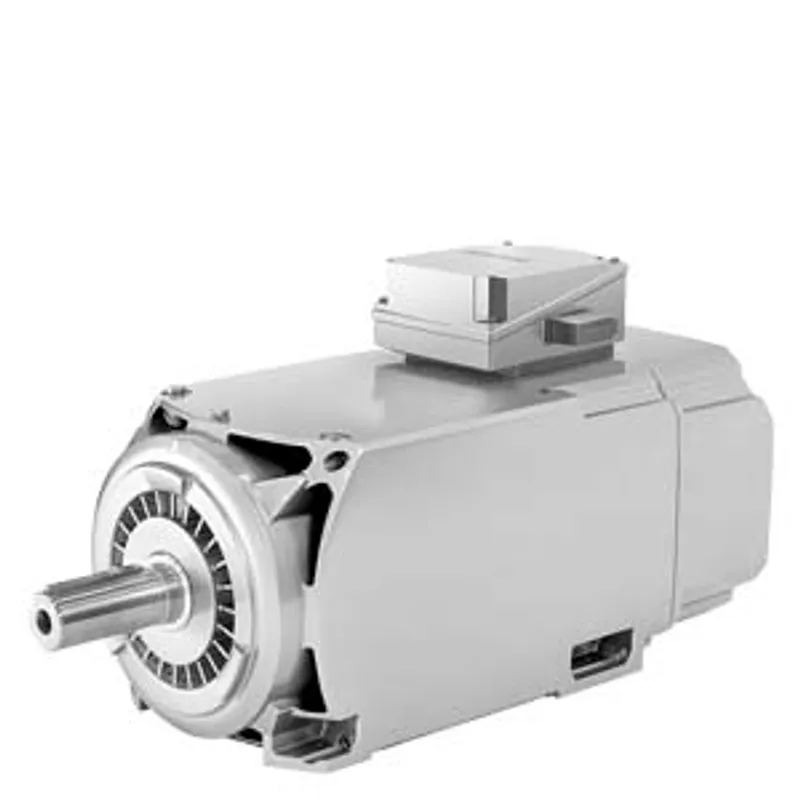

Siemens 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 – SIMOTICS M compact asynchronous motor 1500 r/min, 71 kW — photo 1 of 2

Available on request

Siemens 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 – SIMOTICS M compact asynchronous motor 1500 r/min, 71 kW

Name: Siemens 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 – SIMOTICS M compact asynchronous motor 1500 r/min, 71 kW
Brand: Siemens
SKU: 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59

MPN: 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Servo & Motion Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	422 kg

Shipping & availability

When can 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 be shipped?

1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8186-1DZ13-1BD1-Z K23+K5J+L27+X59, subject to availability and destination.

SIMOTICS M compact asynchronous motor 1500 r/min, 71 kW, 452 Nm, 89 A, 591 V 1150 r/min, 55.7 kW, 463 Nm, 62 A, 690 V forced ventilation direction of air flow NDE-->DE degree of protection IP55 incremental encoder 22-bit DRIVE-CLiQ interface type of construction IM B35 with flange A450 shaft with feather key full-key balancing bearing version: standard vibration class: R/A; shaft and flange accuracy: R K23: special finish worldwide L27: insulated version NDE bearing X59: color RAL 7030 (stone gray) K5J: special winding system 690 V customer-specific motor CIGI(*)
