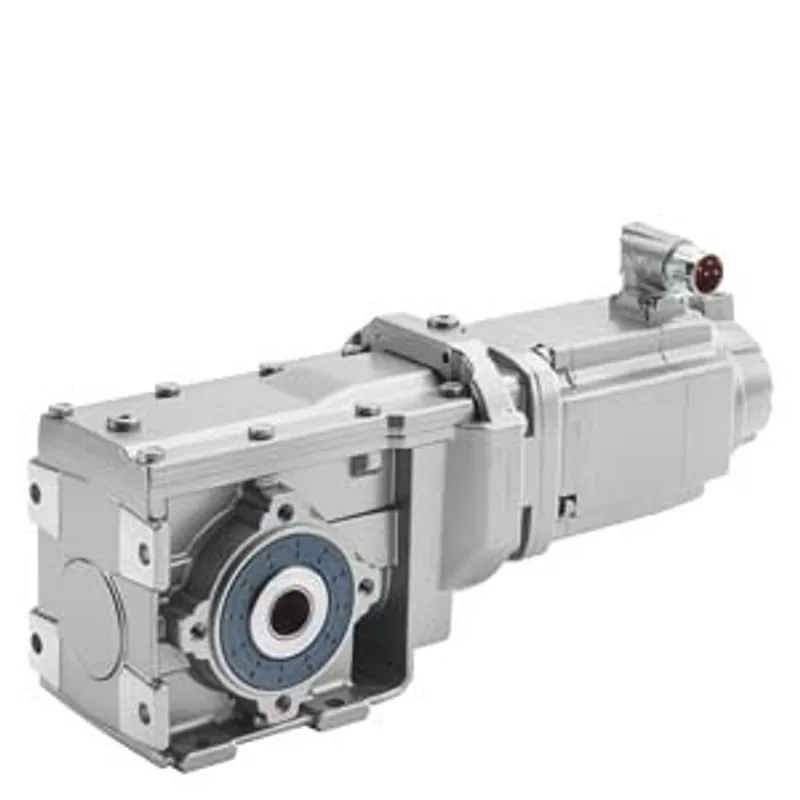

Siemens 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 – SIMOTICS S-1FG1 synchronous servo geared motor bevel…

Name: Siemens 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 – SIMOTICS S-1FG1 synchronous servo geared motor bevel…
Brand: Siemens
SKU: 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92

MPN: 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	30.58 kg

Shipping & availability

When can 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 be shipped?

1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FG1505-6QE03-1CR1-Z D13+G24+K08+K23+N23+Q92, subject to availability and destination.

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox K49 motor type CT 600V AH63 Mmax=18; hollow shaft H30 absolute encoder single-turn encoder AS20DQI plug-on version transmission ratio: 32.57 N1max=4500 rpm N2max = 138 rpm, M2max = 425 Nm D13=mounting position M3-A G24=seal increased environmental load K08=oil CLP PG VG460 K23=primer+top coat RAL701 N23=standard holding brake Q92=plug position at the bottom customer-specific motor according to CIGO10122839_20
