Schneider Electric
XPEZ911Protective cover, Harmony XPE, single cover, for foot switch, metal, orange
Schneider Electric ZARB10WSP
Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC
- MPN
- ZARB10WSP
- EAN
- 3606481389121
- Category
- Harmony eXLhoist
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ZARB10WSP (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ZARB10WSP?

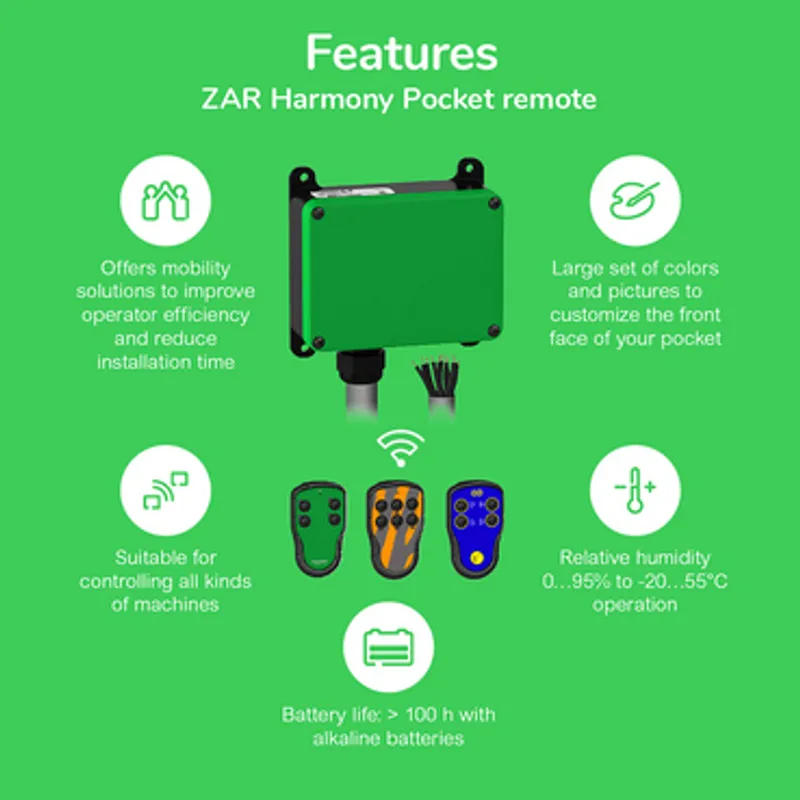

This Harmony eXLhoist / XAR green base station (receiver) has 10 relays outputs with 2 safety relays. This green base station (receiver) is designed as receiver for wireless remote control system. It has 10 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP66, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Specifications
Specifications
| Range of product | Harmony eXLhoist |
| Product or component type | Base station |
| Device short name | ZARB |
| Product specific application | Hoisting applications, Material handling |
| cable entry | Cable pre-wired |
| Material | ABS + PC |
| [Us] rated supply voltage | 48...240 V AC |
| Provided equipment | Internal antenna |
| Nominal output current | 0.5 A at 48 V AC conforming to IEC 60947-5-1 |
| Number of relays | 10 |
| Relay type | Motion relay outputs with 9 NO contact, Auxiliary relay outputs with 1 NO contact |
| Safety outputs | 2 NC relay outputs |
| Maximum switching current | 10 A |
| Maximum switching voltage | 240 V AC (+/- 20 %) |
| Communication network type | Wireless: Zigbee |
| Transmission frequency | 2.4 GHz |
| Maximum sensing distance | 100 m in free field |
| fixing mode | 4 holes |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Width | 120 mm |
| Height | 117 mm |
| Depth | 51 mm |
| Net weight | 0.88 kg |
| IP degree of protection | IP66 |
| Radio agreement | FCC, IC |
| Relative humidity | 0…97 % |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Product certifications | CE |
Packaging
| Package 1 | 1 PCE, 22.200 cm × 18.800 cm × 7.600 cm (L × W × H), 1.035 kg |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.596 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ZARB10WSP: frequently asked questions
Can I still buy the ZARB10WSP now that it is discontinued?
Yes. Schneider Electric has discontinued the ZARB10WSP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can ZARB10WSP be shipped?
ZARB10WSP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZARB10WSP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZARB10WSP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZARB10WSP, subject to availability and destination.
