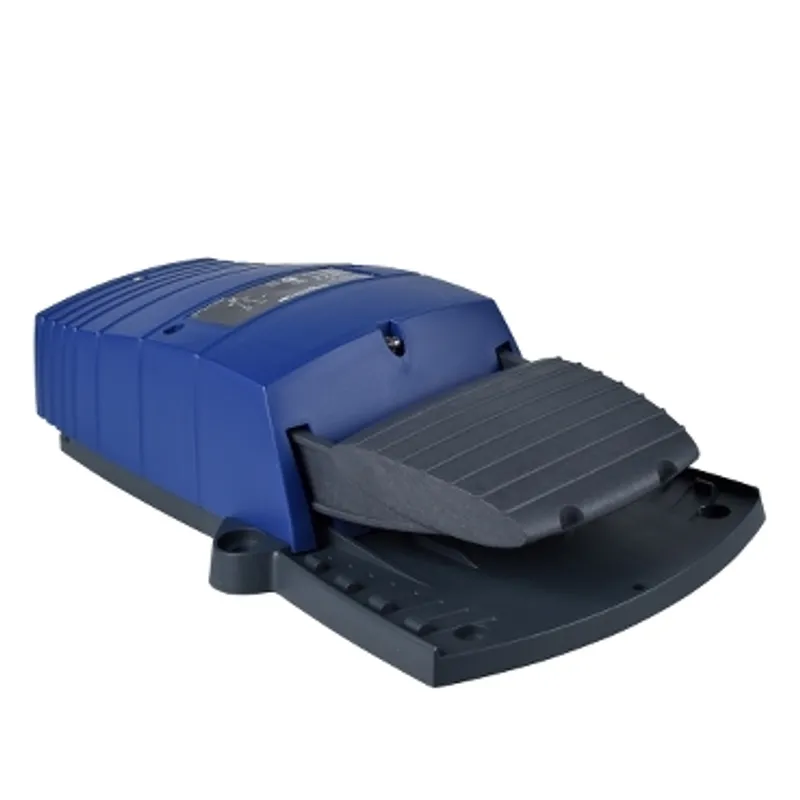

Single foot switch, Harmony XPE, plastic, blue, without cover, 1 step, 2 contacts 1NC+NO, IP66
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony XPE |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.57 kg |
Shipping & availability
When can XPEB211 be shipped?
XPEB211 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XPEB211 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XPEB211 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XPEB211, subject to availability and destination.

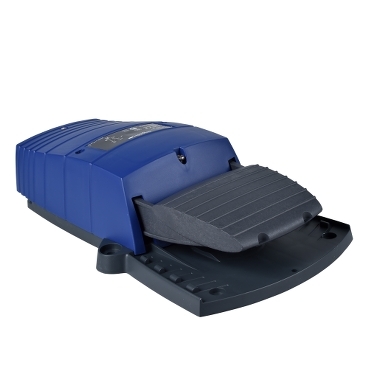

This Harmony XPEB211 is a single foot switch. Its degree of protection is IP66. It has no cover, plastic material, blue color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Specifications
Specifications
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Plastic |
| Foot switch type | Single foot switch |
| Device short name | XPEB |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 2 steps |
| Contacts type and composition | 2 NC + NO |
| Colour | Blue |
| Positive opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end |
| cable entry | 2 plain holes for M20 cable gland |
| Mechanical durability | 10000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Net weight | 0.57 kg |
| Standards | CSA C22.2 No 14 |
| Product certifications | CSA |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 28.5 cm |
| Package 1 Weight | 841.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 10.947 kg |
| Warranty (in months) | 18 |
