Schneider Electric XBTZGJBOX
Junction box for advanced hand-held terminal
- MPN
- XBTZGJBOX
- EAN
- 3595864003191
- Category
- Magelis XBT GH
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric XBTZGJBOX?

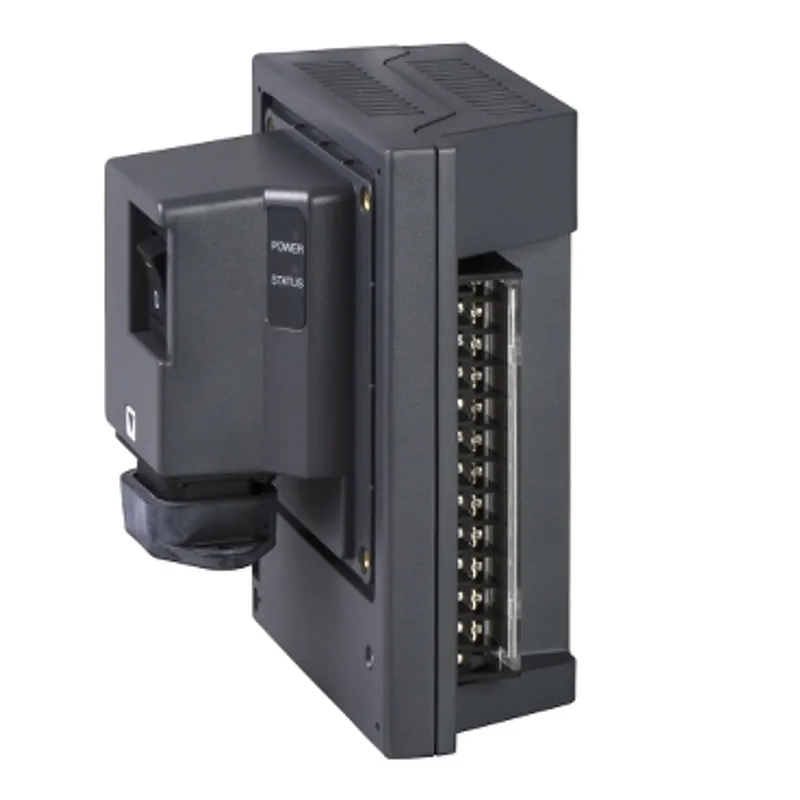

This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.
Specifications
Specifications
| Range of product | Magelis XBTGH |
| Product or component type | Junction box |
| Product specific application | For XBTGH advanced hand-held panel |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Power consumption in W | 6.3 W |
| Electrical connection | 1 connector 24-pin connector hand-held panel, 1 connector RJ45 Ethernet TCP/IP, 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link, Screw terminal block 24 inputs/outputs |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Enclosure material | PPT |
| Fixing mode | By 4 M4 screws, mounting on 1.5 to 10 mm thick panel, Clip-on, mounting on 35 mm symmetrical DIN rail |
| Marking | CE |
| Immunity to microbreaks | 10 ms |
| Standards | FCC Class A, EN 61131-2, IEC 61000-6-2, UL 508 |
| Product certifications | cULus, C-Tick |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 (rear panel), IP65 (front panel) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 1 gn (f = 9…150 Hz), 3.5 mm (f = 5…9 Hz) |
| Relative humidity | 0…90 % without condensation or dripping water |
| Resistance to electrostatic discharge | 6 kV conforming to IEC 61000-4-2 level 3 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
Packaging
| Package 1 | 1 PCE, 27.000 cm × 22.500 cm × 17.000 cm (L × W × H), 1.184 kg |
| Package 2 | 2 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.900 kg |
