Schneider Electric XBTZ9680

Uni-Telway/Modbus serial link - L = 2.5 m - 1 female mini DIN + 1 SUB-D 25

MPN
XBTZ9680
EAN
3389110420388
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original XBTZ9680 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric XBTZ9680?

This Magelis XBTZ is a RS 485 cable for Modbus/Uni-TE serial link. It enables direct connection between Magelis XBT terminals and PLCs. It is equipped with one 8-way female mini-DIN connector at one end and one angled 25-way SUD-D connector at other end. it is 2.5 meters long. It is compatible with Twido, Modicon Nano, Modicon TSX Micro, Modicon Premium PLCs. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony XBT
Accessory / separate part categoryConnection accessories
Accessory / separate part typeConnecting cable
Accessory / separate part designationUni-telway/Mdb serial link elbow
Accessory / separate part destinationXBT terminal
Cable length2.5 m

Complementary

Product compatibilityXBTR411; XBTN410; XBTNU400; XBTN401; XBTR410
Range compatibilityModicon Premium automation platform; Twido
Electrical connection1 female connector mini DIN, 8 pins; 1 connector SUB-D 25
Communication port protocolModbus; Uni-Telway
Physical interfaceRS485
Net weight0.17 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

XBTZ9680: frequently asked questions

Can I still buy the XBTZ9680 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTZ9680, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can XBTZ9680 be shipped?

XBTZ9680 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTZ9680 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTZ9680 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZ9680, subject to availability and destination.

More Schneider Electric parts

Schneider Electric XBTZ939 – Cable with 5..24 V operational voltage - L = 2.5 m - 1 female SUB-D 15
Schneider Electric
XBTZ939

Cable with 5..24 V operational voltage - L = 2.5 m - 1 female SUB-D 15

Schneider Electric XBTZ945 – Harmony XBT - RS232C serial printer PC link - 2.5 m - for small terminal
Schneider Electric
XBTZ945

Harmony XBT - RS232C serial printer PC link - 2.5 m - for small terminal

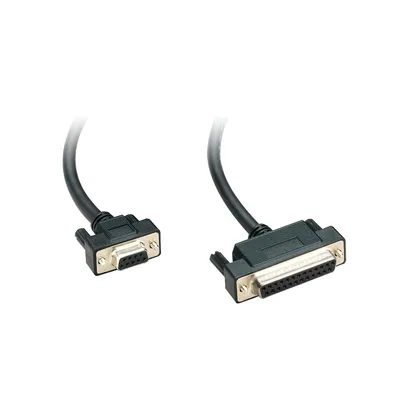

Schneider Electric XBTZ962 – Magelis XBT - adaptor for PC RS232C serial port link - 1 male connector SUB-D 9
