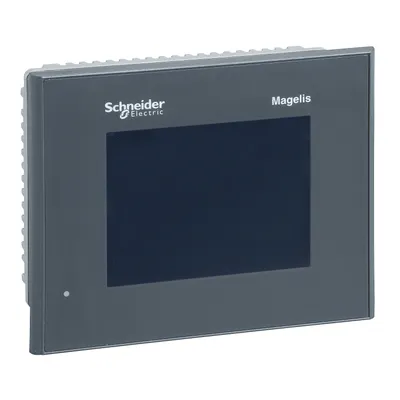

Schneider Electric XBTGT2110 – advanced touchscreen panel - 320 x 240 pixels QVGA - 5.7" - STN LCD - 24 V DC

Name: Schneider Electric XBTGT2110 – advanced touchscreen panel - 320 x 240 pixels QVGA - 5.7" - STN LCD - 24 V DC
Brand: Schneider Electric
SKU: XBTGT2110

MPN: XBTGT2110 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original XBTGT2110 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Magelis XBT GT
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595863885248
Recommended replacement	HMIGTO2300
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the XBTGT2110 now that it is discontinued?

Yes. Schneider Electric has discontinued the XBTGT2110, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the HMIGTO2300 as its successor — we can quote both.

When can XBTGT2110 be shipped?

XBTGT2110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XBTGT2110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XBTGT2110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTGT2110, subject to availability and destination.

Schneider Electric XBTGT2110 — advanced touchscreen panel - 320 x 240 pixels QVGA - 5.7" - STN LCD - 24 V DC (Magelis XBT GT). Discontinued by Schneider Electric; the manufacturer's successor is HMIGTO2300. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Harmony XBTGT
Product or component type	Advanced touchscreen panel
Display type	Backlit monochrome STN LCD
Display colour	Blue and white; 16 levels of grey
Display resolution	320 x 240 pixels QVGA
Display size	5.7 inch
Software type	Configuration software
Software designation	Vijeo Designer
Operating system	Harmony
Processor name	CPU RISC
Processor frequency	133 MHz
Memory description	128 kB SRAM back up of data with lithium battery back-up; 16 MB flash EPROM application memory
Integrated connection type	male SUB-D 9 connector COM1 serial link with RS232C/RS422/RS485 interface at <= 115.2 kbits/s; removable screw terminal block connector power supply; USB type A master port (V1.1), compatible with Modicon M340 terminal port communication; RJ45 connector COM2 serial link with RS485 interface at <= 187.5 kbit/s
Resistance to electrostatic discharge	6 kV conforming to IEC 61000-4-2 level 3
Cut-out dimensions	156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm

Complementary

Touch sensitive zone	1024 x 1024
Touch panel	Analogue
Backlight lifespan	58000 hours
Brightness	8 levels via touch panel
Contrast	8 levels via touch panel
Character font	Taiwanese (traditional Chinese); ASCII (European characters); Japanese (ANK, Kanji); Korean; Chinese (simplified Chinese)
[Us] rated supply voltage	24 V DC
Supply	External source
Supply voltage limits	19.2…28.8 V
Inrush current	30 A
Power consumption in W	18 W
Local signalling	1 LED (green or orange) for normal operation or backlighting faulty
Downloadable protocols	Telemecanique Modicon FIPWAY; Telemecanique Modicon Modbus Plus; Telemecanique Modicon Modbus TCP/IP; Telemecanique Modicon Modbus; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Telemecanique Modicon Uni-TE
Realtime clock	Built-in
Product mounting	Flush mounting
fixing mode	By 2 spring clips; By 4 screw clamps
Front material	PPT
Enclosure material	PPT
Marking	CE
Width	167.5 mm
Height	135 mm
Depth	59.5 mm
Net weight	1 kg

Environment

Immunity to microbreaks	10 ms
Standards	EN 61131-2; CSA C22.2 No 14; FCC Class A; IEC 61000-6-2; UL 1604; UL 508
Product certifications	CSA Class 1 Division 2 T5; CSA Class 1 Division 2 T4A; C-Tick; UL Class 1 Division 2 T5; ATEX zone 2/22; cULus; UL Class 1 Division 2 T4A
Ambient air temperature for operation	0…50 °C
Ambient air temperature for storage	-20…60 °C
Relative humidity	0…85 % without condensation
Operating altitude	< 2000 m
IP degree of protection	IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529
NEMA degree of protection	NEMA 4X front panel (indoor use)
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance	1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz); 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz)
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Resistance to fast transients	2 kV conforming to IEC 61000-4-4 level 3
