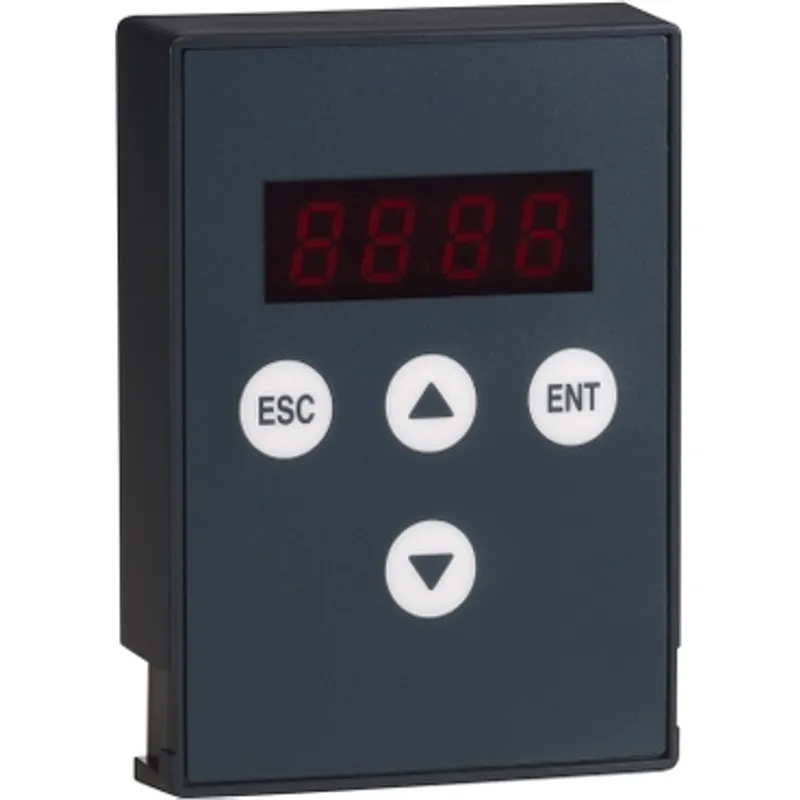

Schneider Electric VW3G22101
Remote terminal, Altistart 22, for soft starter for asynchronous motor, IP54
- MPN
- VW3G22101
- EAN
- 3606480179310
- Category
- Altistart 22
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3G22101?
This terminal is an accessory of soft start/soft stop Altistart 22 range. It enables the human machine interface of the Altistart 22 soft start/soft stop unit to be positioned remotely on the door of an enclosure. Its protection index is IP54. It weighs 250g and its dimensions are, 50mm wide, 70mm high, 15mm deep. It is used to set and configure the soft start/soft stop unit remotely and display the soft start/soft stop unit status and detected errors remotely. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.
Specifications
Specifications
| Range of product | Altistart 22 |
| Accessory / separate part designation | Remote terminal |
| IP degree of protection | IP54 |
| Accessory / separate part type | Remote terminal |
| Accessory / separate part category | Control accessories |
| Product compatibility | ATS22 |
| Accessory / separate part destination | Soft starter for asynchronous motor |
| Accessory dimension | 50 x 15 x 70 mm |
| Net weight | 0.25 kg |
Packaging
| Package 1 | 1 PCE, 8.6 cm × 6.5 cm × 4.5 cm (L × W × H), 66.0 g |
| Package 2 | 90 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 6.795 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3G22101: frequently asked questions
When can VW3G22101 be shipped?
VW3G22101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3G22101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3G22101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3G22101, subject to availability and destination.
