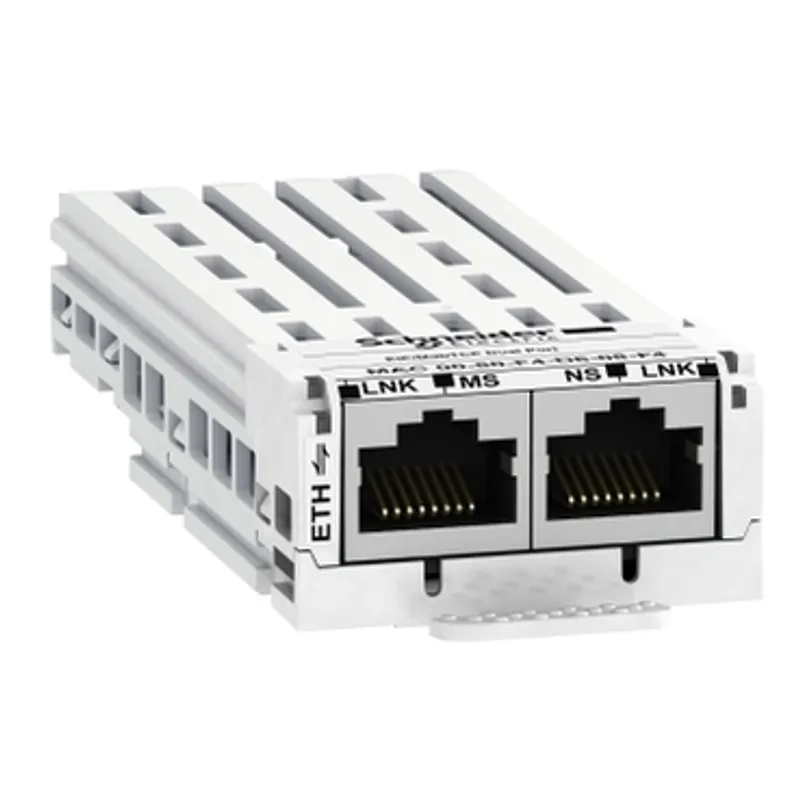

Schneider Electric VW3AP3721
Communication card MultiDrive Link, Altivar, 10/100Mbps, 2 x RJ45 connectors
- MPN
- VW3AP3721
- EAN
- 3606489496982
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3AP3721?
Schneider Electric communication card MultiDrive Link, Altivar, 10/100Mbps, 2 x RJ45 connectors, manufacturer part number VW3AP3721. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV600 |
| Communication port protocol | MD-Link, EtherNet/IP, Modbus TCP |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link |
| Transmission rate | 10/100 Mbps |
| Exchange mode | Half duplex and full duplex |
| Communication service | SNMP agent for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, Ethernet/IP adapter for Ethernet IP, RSTP support for Ethernet IP, FTP for Ethernet IP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, Auto-MDIX for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, FDR for Ethernet IP/Modbus TCP |
| Communication network type | IPv6 (internet protocol) |
| Topology | Daisy chain |
| Time synchronisation protocol | SNTP |
| Web server | Embedded HTTP server |
| Web services | Widgets (ID, control, data table, diagnostic, charts), Energy monitoring, Customizable home page, Save/restore drive configuration, Ethernet setting and diagnostic, Pump function setting and monitoring, Upgrade drive firmware, Drive monitor, Drive setting and diagnostic |
| Display type | 1 LED for MS (Module Status), 1 LED for NS (Network Status), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for TX/RX (Transmit/Receive port 2) |
| Bus profile | CIP AC Drive, CiA 402 |
| Net weight | 0.2 kg |
| Product certifications | ODVA, Achilles: level 2 |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 6.5 cm (L × W × H), 200.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3721: frequently asked questions
When can VW3AP3721 be shipped?
VW3AP3721 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3721 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3721 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3721, subject to availability and destination.
