Schneider Electric VW3AP3609

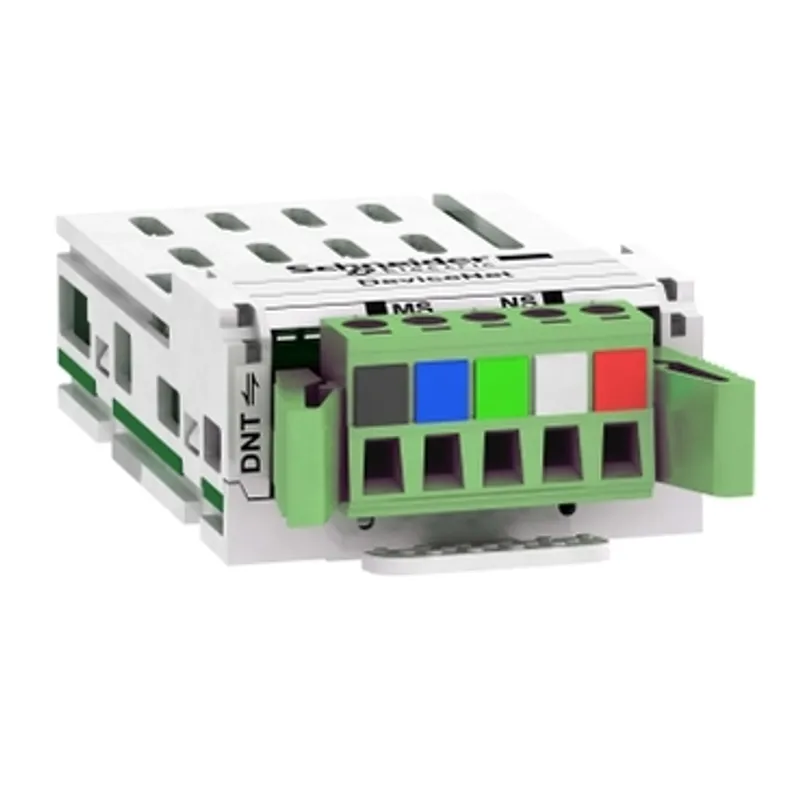

Communication module DeviceNet, Altivar, 500kbps, 1 removable 5 way screw connector
- MPN
- VW3AP3609
- EAN
- 3606485421810
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3AP3609 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3AP3609?
Schneider Electric communication module DeviceNet, Altivar, 500kbps, 1 removable 5 way screw connector, manufacturer part number VW3AP3609. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| Communication port protocol | DeviceNet |
| Electrical connection | 1 connector 1 removable 5-way screw connector |
| Transmission rate | 125 kbps, 250 kbps and 500 kbps configurable |
| Maximum cable distance between devices | 100 m for 500 kbps, 500 m for 125 kbps |
| Addressing | 1...63 configurable by graphic terminal/SoMove software |
| Communication service | Inputs : polled, change of state, cyclic, Outputs : polled, ODVA AC drive and CiA 402 profile, Auto device replacement, Communication monitoring time out adjustable by DeviceNet configurator |
| Display type | 1 LED for MS (Module Status), 1 LED for NS (Network Status) |
| diagnostic function | Received instruction by graphic terminal, Control mode received by graphic terminal |
| Bus profile | CiA 402, CIP AC Drive |
| Net weight | 0.2 kg |
Packaging
| Package 1 | 1 PCE, 8.9 cm × 6.2 cm × 4.7 cm (L × W × H), 60.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3609: frequently asked questions
Can I still buy the VW3AP3609 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3AP3609, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3AP3609 be shipped?
VW3AP3609 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3609 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3609 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3609, subject to availability and destination.
