Schneider Electric VW3AP3203

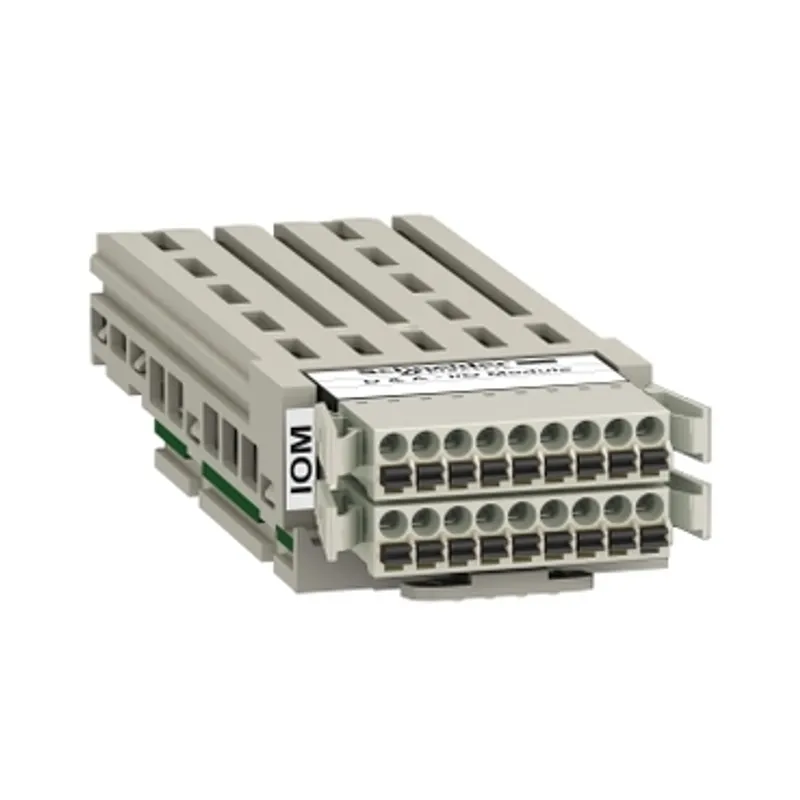

Additional Input Output module, Altivar
- MPN
- VW3AP3203
- EAN
- 3606485421773
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3AP3203?
Schneider Electric additional Input Output module, Altivar, manufacturer part number VW3AP3203. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product or component type | Additional I/O module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| Input/output type | 2 analog input configurable voltage, current or probe, 6 discrete input, 2 discrete output |
| Analogue input number | 2 |
| Analogue input type | AI1, AI2 configurable current: 0...20 mA/4...20 mA, sampling time: 0…1 ms, resolution: 14 bits, AI1, AI2 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0…1 ms, resolution: 14 bits, AI1, AI2 configurable PTC, Pt 100, Pt 1000, sampling time: 0…1 ms, resolution: 14 bits |
| Discrete output number | 2 |
| Discrete output type | (DQ11, DQ12) assignable logic, sampling time: 1 ms |
| Discrete output logic | (DQ11, DQ12) negative, (DQ11, DQ12) positive |
| Discrete input number | 6 |
| Discrete input type | (DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1 ms |
| Discrete input logic | Negative (DI11...DI16), Positive (DI11...DI16) |
| Discrete input current | 2.5 mA |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Maximum output current | 100 mA, assignable logic |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Electrical connection | Removable spring terminal block, 1.5 mm² / AWG 16 |
| Protection type | Reverse polarity protection: digital input, Short-circuit protection: output |
| Net weight | 0.5 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 6.5 cm (L × W × H), 155.0 g |
